Model: LD-480Y-2
Application:
Multi Lanes Stick Sachet Powder Box Packing Machine Line is suitable for coffee powder, milk powder, cocoa powder, creamer powder, sugar substitutes, seasoning powders, protein powder, collagen powder, meal replacement powder, and vitamin supplements.
Max.120 cycle/min
Model: LD-480Y-2
Application:
Multi Lanes Stick Sachet Powder Box Packing Machine Line is suitable for coffee powder, milk powder, cocoa powder, creamer powder, sugar substitutes, seasoning powders, protein powder, collagen powder, meal replacement powder, and vitamin supplements.
Max.120 cycle/min
Application:
Multi Lanes Stick Sachet Powder Box Packing Machine Line is suitable for coffee powder, milk powder, cocoa powder, creamer powder, sugar substitutes, seasoning powders, protein powder, collagen powder, meal replacement powder, and vitamin supplements.
Package Type:
Multi Lanes Stick Sachet Powder Box Packing Machine Line is designed for powder stick sachets, narrow pillow sachets, multi-lane stick packs and single-dose powder packets. Finished sachets are automatically counted and loaded into folding cartons, display cartons or retail boxes according to preset quantities.

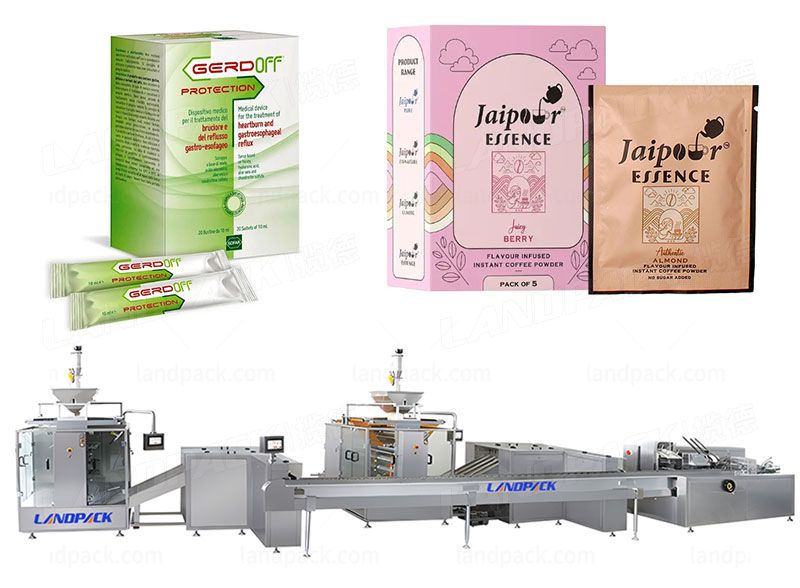

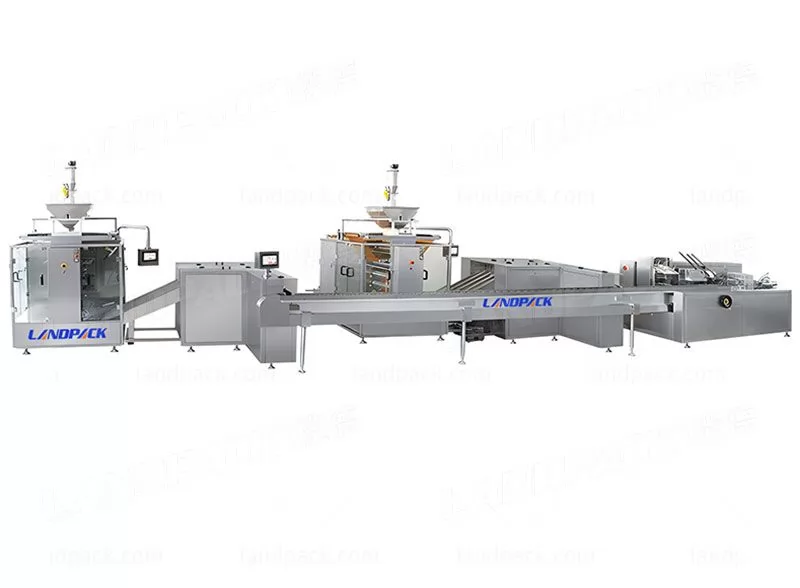

● 1. Fully automatic production line integrates multi-lane powder stick pack packaging, counting, sorting and cartoning into one seamless process.
● 2. High-speed multi-lane design delivers up to 600 stick packs per minute, significantly increasing production capacity for powder products.
● 3. Precision servo auger filling system ensures accurate dosing with stable weight control and consistent package quality.
● 4. Intelligent counting and sorting system automatically groups sachets before cartoning, reducing manual handling and packaging errors.
● 5. Automatic cartoning machine completes carton feeding, opening, loading and closing, creating a fully automated secondary packaging solution.
● 6. Food-grade SUS304 stainless steel construction meets GMP production requirements and allows easy cleaning and maintenance.
● 7. PLC touch screen control system supports recipe storage, quick parameter adjustment and real-time production monitoring.
● 8.Ideal for coffee powder, milk powder, protein powder, collagen powder, nutritional supplements, seasoning powders and other free-flowing powder products, with customizable lane numbers, sachet sizes and carton formats.
| Multilane Packing Machine | |
| Model | LD-480Y-2 |
| Pouch Length | 50-120 (adjustable) |
| Pouch Width | 50-105 mm |
| Packing Speed | 60 time/min(depend by pouch size & material) |
| Filling Capacity | 0.5-50ml |
| Application Film | PET/ AL /PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Width | 900mm |
| Max Film Diameter | φ300mm |
| Film Core Diameter | φ75mm |
| Electric Source | 380v, 50hz (do as customer's request) |
| Total Powder | 15kw |
| Overall Dimension | 2200*1700*2250mm(L*W*H) |
| Machine Weight | 1500 kg |
| Packaging size | 1650*1500*2200mm(L*W*H) |
| Cartoning Machine Parameters | |
| Encasing Speed | 30-100 cartons/min |
| Carton - Quality Requirement | 250-350 g/m³ (Base on sachet or pouch size) |
| Carton - Dimension Range (L*W*H) | (70-180)mm*(35*120)mm*(14-50)mm |
| Leaflet - Quality Requirement | 60-70 g/㎡ |
| Leaflet - Unfolded leaflet specification | (80-250)mm*(90-170)mm |
| Leaflet - Fold range | 1-4 fold |
| Compressed air - Working pressure | ≥0.6Mpa |
| Compressed air - Air consumption | 200-240 L/min |
| Power supply | 220V, 50Hz |
| Motor supply | 1.1 KW |
| Machine dimension (L*W*H) | 3100*1100*1550mm |
| Machine weight | about 1400kg |
Workflow:
1.Powder Feeding → Multi-Lane Filling → Sachet Forming → Sealing → Cutting → Counting → Product Collation → Automatic Cartoning → Finished Carton Output
