Model: LD-180SP
Application:
The Spout Pouch Case Packing System is a fully integrated end-of-line packing solution for tomato ketchup, chili sauce, mayonnaise, cheese sauce, salad dressing, soy sauce and cooking sauces, Concentrated juice, syrup, energy gel and functional liquid products.
Max.120 cycle/min
Model: LD-180SP
Application:
The Spout Pouch Case Packing System is a fully integrated end-of-line packing solution for tomato ketchup, chili sauce, mayonnaise, cheese sauce, salad dressing, soy sauce and cooking sauces, Concentrated juice, syrup, energy gel and functional liquid products.
Max.120 cycle/min
Application:
The Spout Pouch Case Packing System is a fully integrated end-of-line packing solution for tomato ketchup, chili sauce, mayonnaise, cheese sauce, salad dressing, soy sauce and cooking sauces, Concentrated juice, syrup, energy gel and functional liquid products.
Package Type:
The Spout Pouch Case Packing System is suitable for primary Packaging:Spout Pouch, Corner Spout Pouch, Stand Up Spout Pouch, Doypack Spout Pouch, Flat Spout Pouch, Custom Shape Spout Pouch.Secondary Packaging: Corrugated Cartons, Shipping Cases, Export Cartons, Retail Display Cases.Final Packaging: Palletized Cartons, Stretch Wrapped Pallets.

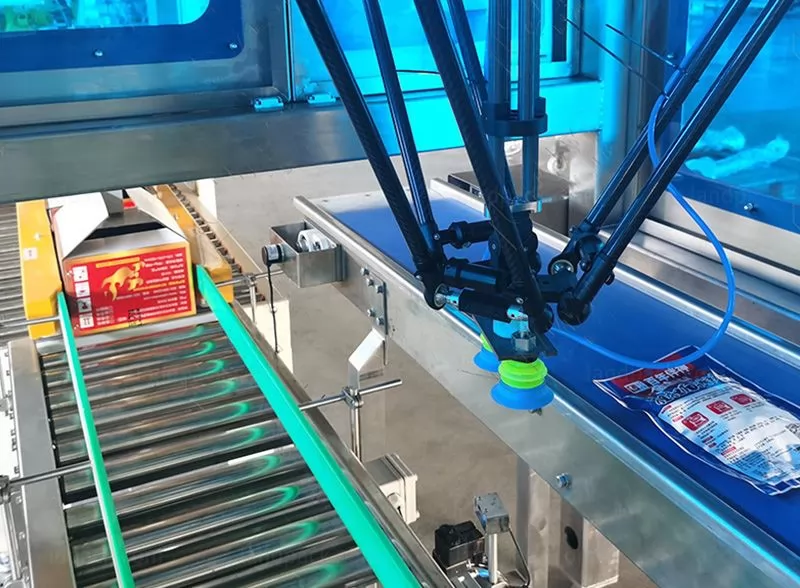

● 1. High-speed Delta robot automatically sorts and picks spout pouches.
● 2. Automatically completes grouping, case packing and palletizing processes.
● 3. Supports corner spout pouches, doypack spout pouches and stand-up pouches.
● 4. Servo control system ensures accurate positioning and stable operation.
● 5. Intelligent PLC control simplifies operation and product changeovers.
● 6. Flexible carton loading patterns accommodate different packaging requirements.
● 7. Robotic palletizer improves stacking efficiency and warehouse management.
● 8. Suitable for ketchup, mayonnaise, chili sauce and other liquid condiment products.

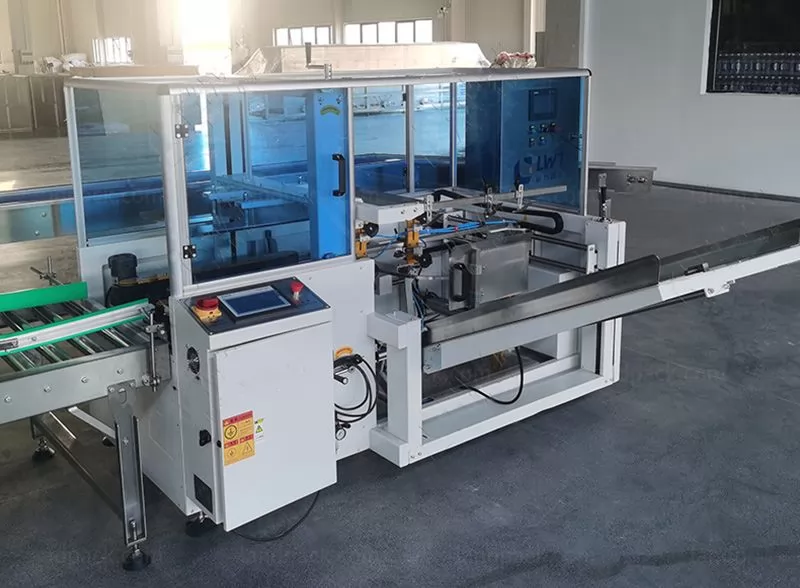

| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Workflow:

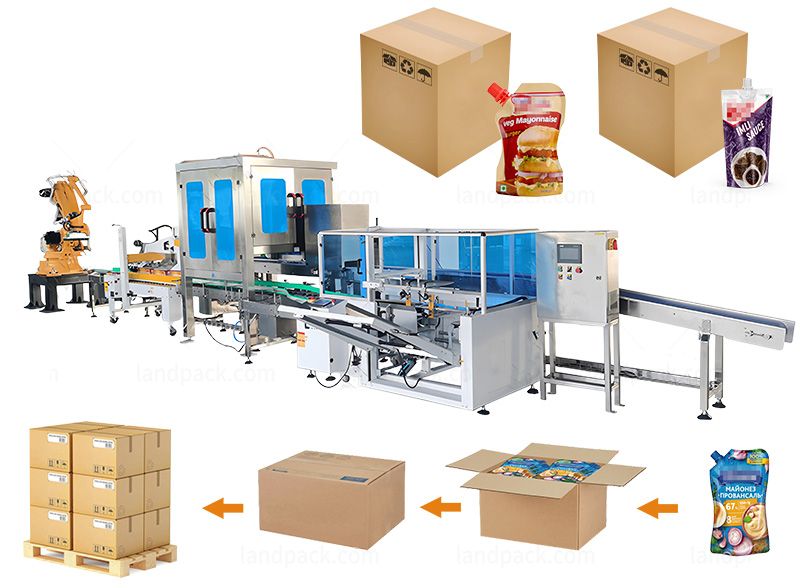

1.Spout Pouch Output → Product Conveying → Delta Robot Sorting → Product Grouping → Automatic Case Packing → Carton Sealing → Robotic Palletizing → Stretch Wrapping → Finished Pallet Output
