Model: LDDS-80
Application:

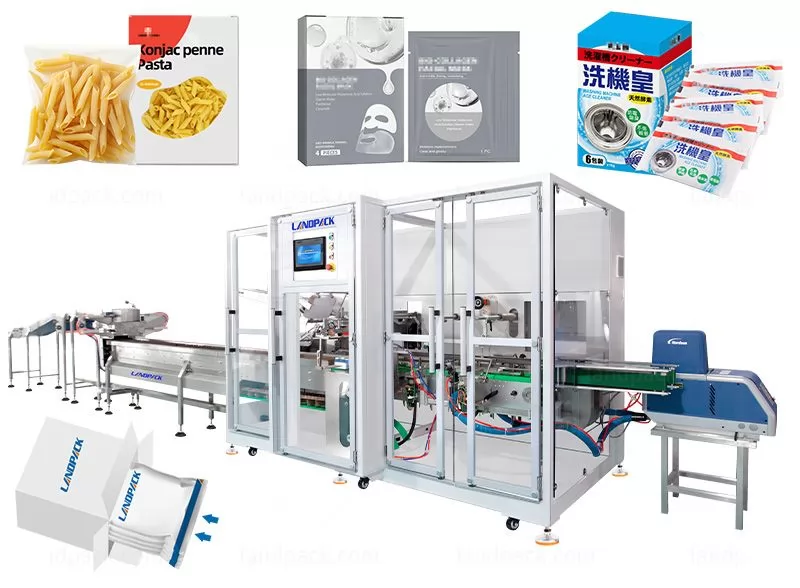

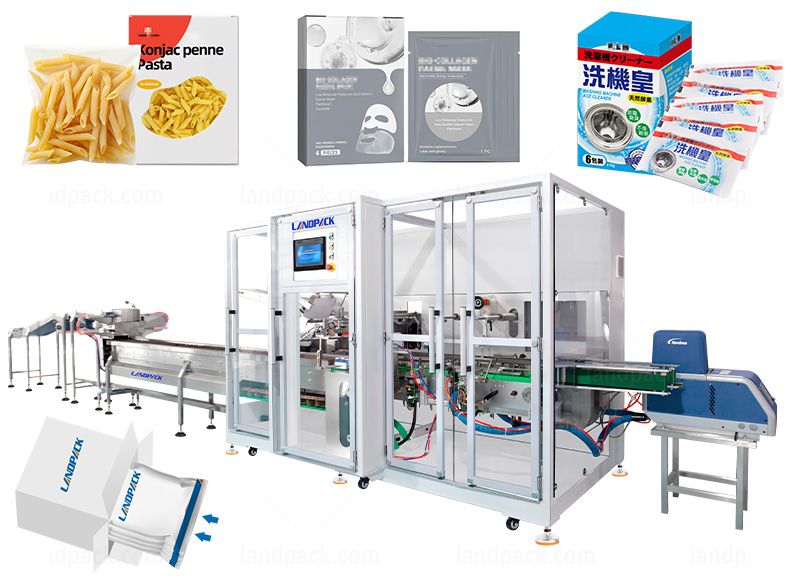

Automatic Pouch Bag Sachet Packing System is an intelligent secondary packaging solution specially designed for bagged macaroni, pasta, noodles, rice products, instant foods, snack pouches, seasoning sachets, soup mixes, spice packs, sauce pouches, Instant coffee sachets, powdered drink mixes, and stick packs.
Max.120 cycle/min
Model: LDDS-80
Application:
Automatic Pouch Bag Sachet Packing System is an intelligent secondary packaging solution specially designed for bagged macaroni, pasta, noodles, rice products, instant foods, snack pouches, seasoning sachets, soup mixes, spice packs, sauce pouches, Instant coffee sachets, powdered drink mixes, and stick packs.
Max.120 cycle/min
Application:
Automatic Pouch Bag Sachet Packing System is an intelligent secondary packaging solution specially designed for bagged macaroni, pasta, noodles, rice products, instant foods, snack pouches, seasoning sachets, soup mixes, spice packs, sauce pouches, Instant coffee sachets, powdered drink mixes and stick packs.
Package Type:
This Automatic Pouch Bag Sachet Packing System is designed for secondary packaging of various flexible packages, including pillow bags, sachets, stick packs, flat pouches, gusset bags and small doypacks. Products are automatically counted, collated and loaded into paper cartons in single-row, multi-row or stacked configurations according to carton dimensions and packing requirements. The system supports tuck-in cartons, glue-sealed cartons, retail display cartons and customized paper box.
● 1. Fully automatic cartoning system completes product feeding, counting, carton opening, loading, coding, carton closing and rejection of unqualified products.
● 2. High-speed servo-driven design supports stable production and improves packaging efficiency for pouch, sachet and stick pack products.
● 3. Intelligent photoelectric detection system prevents empty carton loading and reduces packaging material waste.
● 4. Quick size adjustment design allows fast changeovers between different carton and product specifications without replacing major parts.
● 5. PLC touch screen control system provides user-friendly operation, recipe storage and real-time production monitoring.
● 6. Safety protection functions include overload alarms, fault detection and automatic machine stop for reliable operation.
● 7. SUS304 stainless steel construction ensures durability, easy cleaning and compliance with food and pharmaceutical packaging requirements.
● 8. Easily integrates with pouch packing machines, flow wrappers, filling machines, check weighers, labeling machines and coding systems to build a fully automated packaging line.
| Model | LDDS-80 | LDDS-100 | LDDS-220 |
| Packing Speed | 40-60 boxes/min | 30-50 boxes/min | 30-50 boxes/min |
| Box Size | L: 60-220mm, W: 20-125mm, H: 15-60mm | L: 80-250mm, W: 100-160mm, H: 40-90mm | L: 150-320mm, W: 100-180mm, H: 90-110mm |
| Air Consumption | ≥0.6 mpa, 20 m³/h | ||
| Power Supply | 220V/380V, 50HZ | ||
| Machine Power | 4.5KW | 5.5KW | 6.5KW |
| Machine Size | 3425*1390*1771mm | 3450*1450*1800mm | 4200*1650*1850mm |
| Machine Weight | 1200KG | 1600KG | 2500KG |

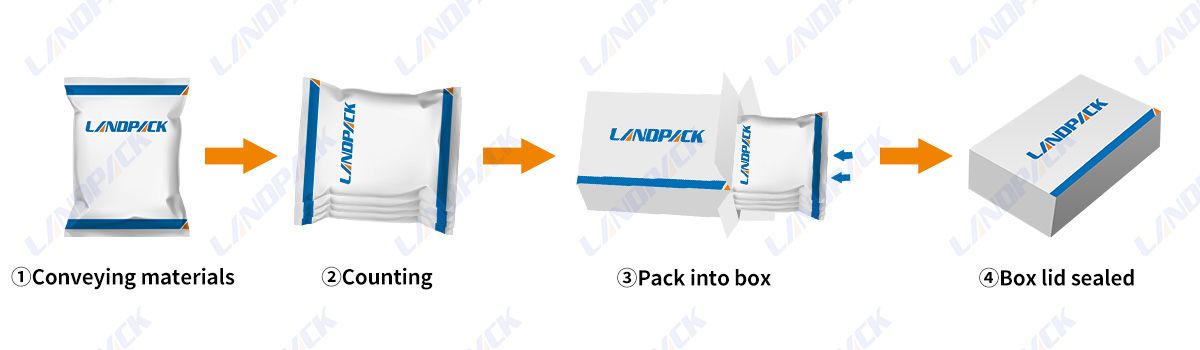

Workflow:
1.Pouch Output → Transition Conveying → Servo Positioning → Automatic Counting → Product Collating → Carton Feeding → Product Loading → Carton Closing → Finished Carton Output
