Model: LD-B8
Application:
Fully Automatic Powder Packaging System is a complete secondary and tertiary packaging solution designed for powdered products such as milk powder, coffee powder, cocoa powder, protein powder, flour, starch and seasoning powder, Instant drink powder, beverage premixes and nutritional powder products.
Max.480 cycle/min
Model: LD-B8
Application:
Fully Automatic Powder Packaging System is a complete secondary and tertiary packaging solution designed for powdered products such as milk powder, coffee powder, cocoa powder, protein powder, flour, starch and seasoning powder, Instant drink powder, beverage premixes and nutritional powder products.
Max.480 cycle/min
Application:
Fully Automatic Powder Packaging System is a complete secondary and tertiary packaging solution designed for powdered products such as milk powder, coffee powder, cocoa powder, protein powder, flour, starch and seasoning powder, Instant drink powder, beverage premixes and nutritional powder products.
Package Type:
The Powder Packaging System is designed for pillow bags, gusset bags, quad seal bags, stick packs, sachets, premade pouches and zipper pouches containing powdered products. Finished bags are automatically counted, collated and loaded into corrugated cartons before sealing and pallet stacking. Various carton arrangements and pallet patterns can be configured according to customer logistics requirements.

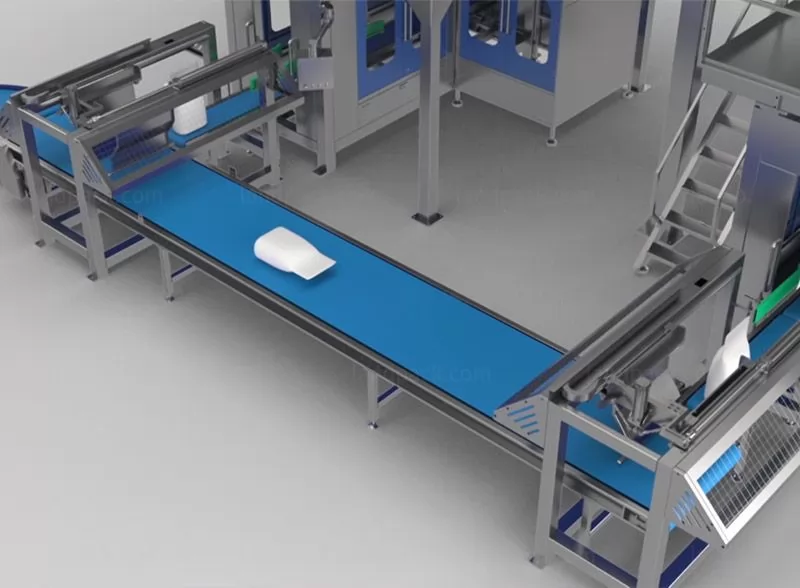

● 1. Complete end-of-line solution integrating **pouch conveying, automatic cartoning, carton erecting, carton sealing and robotic palletizing** into one continuous production line.

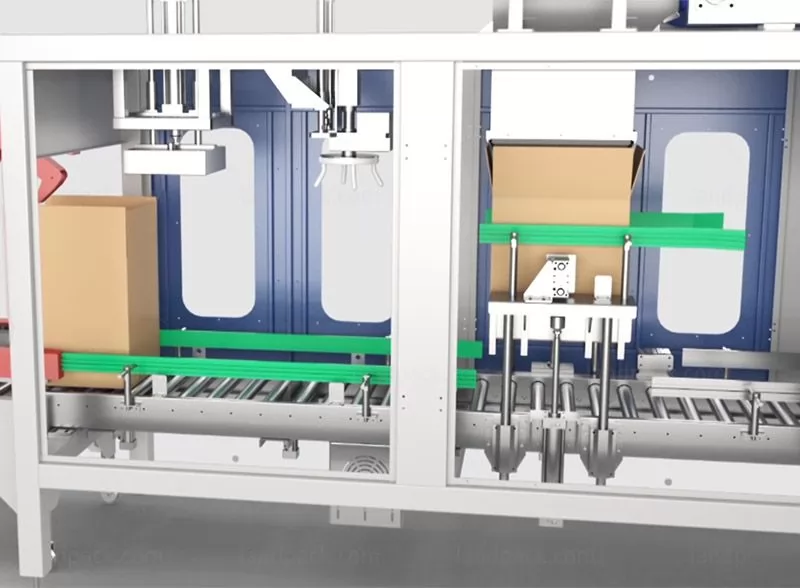

● 2. Automatic cartoning machine operates at **15-30 boxes per minute**, efficiently loading pouch products into cartons while reducing manual labor.
● 3. Intelligent PLC control system ensures stable operation, precise positioning and convenient maintenance with recipe-based parameter management.
● 4. Multiple photoelectric sensors provide **no-product-no-carton**, carton detection and fault alarm functions to improve packaging accuracy and reduce waste.
● 5. Automatic carton erector supports rapid size adjustment within **2-3 minutes** and allows carton replenishment without stopping production.
● 6. Automatic carton sealing machine creates secure and consistent carton closure, suitable for transportation and warehouse storage.
● 7. High-speed robotic palletizer features **±0.1mm repeat positioning accuracy**, supports multiple carton sizes and enables quick pallet pattern changes through the touch screen.
● 8. Compact modular design replaces the workload of multiple operators, supports **24/7 continuous production**, and significantly improves overall packaging efficiency.
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Workflow:

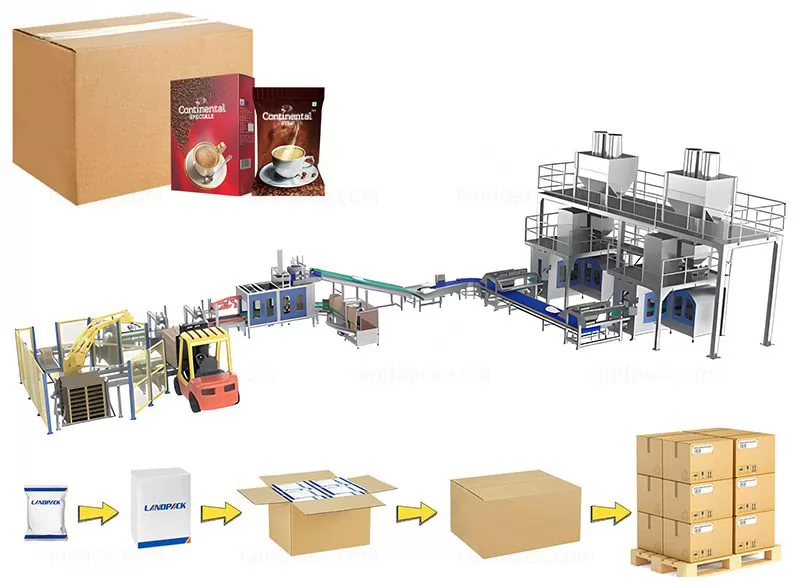

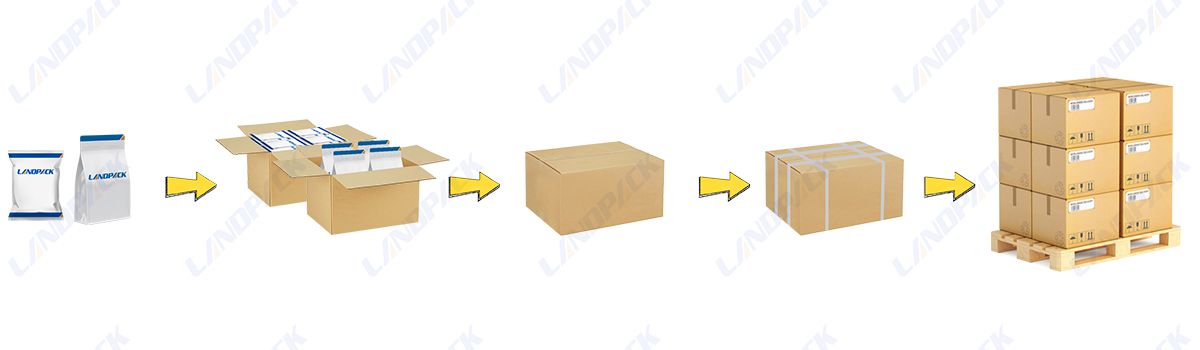

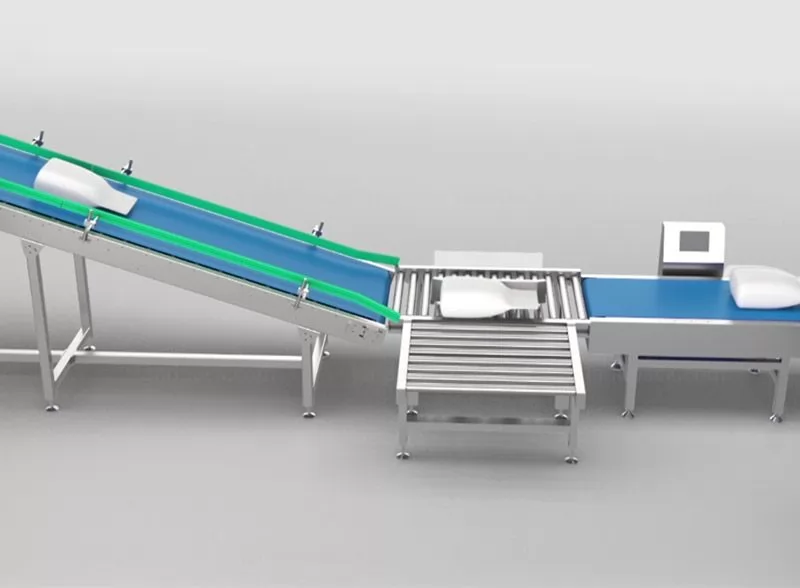

1. Powder Packaging → Product Conveying → Weight Inspection → Product Grouping → Carton Erecting → Automatic Carton Loading → Carton Sealing → Robotic Palletizing → Finished Pallet Output
