Model: LDFS-720
Application:

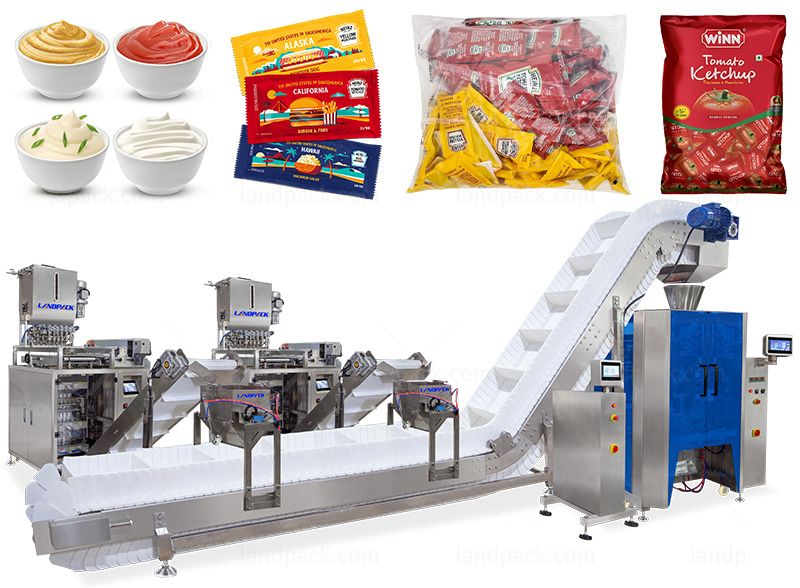

Multilane Liquid Sachet Counting Packing System is a packaging solution designed for liquid sachet manufacturers requiring high-speed sachet collection, counting and repacking. Suitable for ketchup sachets, chili sauce sachets, honey sachets, salad dressing sachets and syrup sachets.
Max.120 cycle/min
Model: LDFS-720
Application:
Multilane Liquid Sachet Counting Packing System is a packaging solution designed for liquid sachet manufacturers requiring high-speed sachet collection, counting and repacking. Suitable for ketchup sachets, chili sauce sachets, honey sachets, salad dressing sachets and syrup sachets.
Max.120 cycle/min
Application:
Multilane Liquid Sachet Counting Packing System is a packaging solution designed for liquid sachet manufacturers requiring high-speed sachet collection, counting and repacking. Suitable for ketchup sachets, chili sauce sachets, honey sachets, salad dressing sachets and syrup sachets.
Package Type:

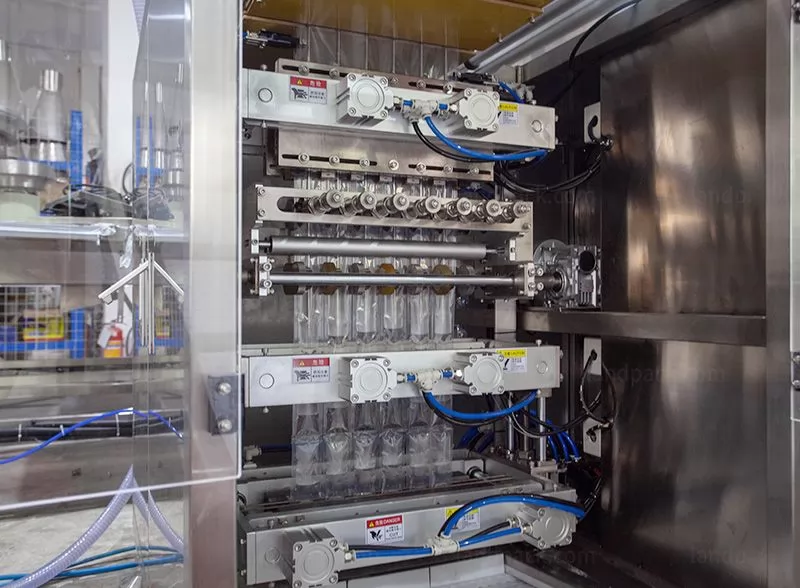

This complete packaging line is specially designed for sachet-to-bag packaging applications. First, the multi-lane machines produce back-seal, 3-side seal or 4-side seal liquid sachets. The finished sachets are automatically counted and collected according to preset quantities such as 10, 20, 50, 100 or more pieces per batch.

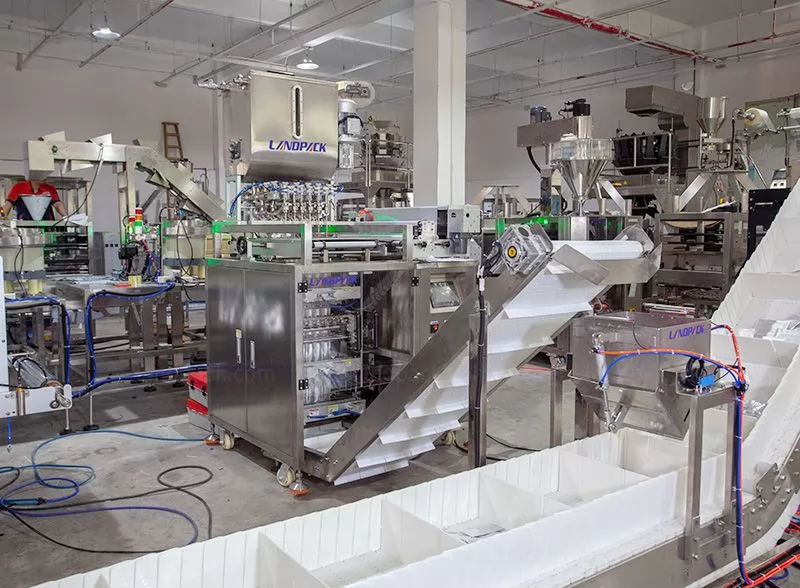

● 1. Dual multi-lane packaging machines significantly increase production capacity and overall packaging efficiency.
● 2. Automatic counting and collection system accurately gathers preset quantities of sachets before secondary packaging.
● 3. Imported high-sensitivity sensors ensure counting accuracy and reduce packaging errors.

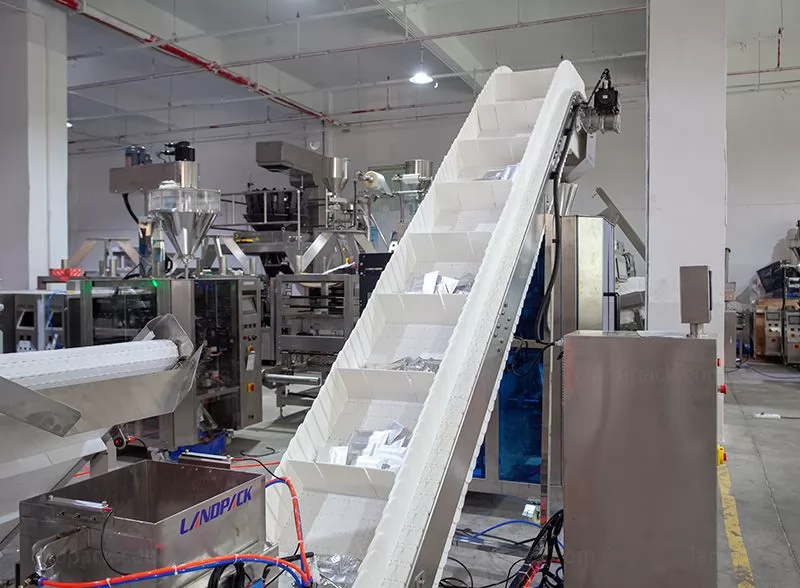

● 4. Servo-driven transfer conveyor operates only when products are detected, improving efficiency and reducing energy consumption.
● 5. Designed for automatic **small sachet into big bag** packaging, eliminating manual counting and loading processes.
● 6. Suitable for liquid products such as shampoo, sauce, honey, ketchup, hand sanitizer and other flowable materials.
● 7. PLC touch screen control system provides stable operation, recipe storage and easy parameter adjustment.
● 8. Fully automated production line improves packaging consistency, hygiene standards and labor efficiency while supporting continuous 24-hour production.
| Multi-Channel Packaging Machines Parameter | |||
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
| Vertical Form Fill Seal Machine Parameter | |||
| Model | LD-420 | LD-520 | LD-720 |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm |
| Bag Length | 80-300mm | 80-350mm | 100-500mm |
| Bag Width | 60-200mm | 100-250mm | 180-350mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm |
| Pakaging Rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min |
| Film Width | Max.420mm | Max.520mm | 150-Max.720mm |
| Measurement Range | 150-1500ml | 5-2000ml | 4000ml |
Workflow:
1.Liquid Filling → Multi-Lane Sachet Packaging → Sachet Discharge → Automatic Counting → Batch Collection → Outer Bag Forming → Sachet Loading → Bag Sealing → Finished Product Output
After receiving your inquiry, We will send you the quotation as soon as possible.
