Model: LD-420C
Application:
The Fully Automatic Powder VFFS Packing Line is suitable for laundry powder, detergent powder, cleaning powder, disinfectant powder, washing additives, industrial powder, water treatment powder, desiccant powder, and fine chemical materials.
Max.480 cycle/min
Model: LD-420C
Application:
The Fully Automatic Powder VFFS Packing Line is suitable for laundry powder, detergent powder, cleaning powder, disinfectant powder, washing additives, industrial powder, water treatment powder, desiccant powder, and fine chemical materials.
Max.480 cycle/min
Application:
The Fully Automatic Powder VFFS Packing Line is suitable for laundry powder, detergent powder, cleaning powder, disinfectant powder, washing additives, industrial powder, water treatment powder, desiccant powder, and fine chemical materials.
Package Type:
The Fully Automatic Powder VFFS Packing Line is suitable for Pillow Bag, Gusset Bag, Punch Hole Bag, Back Seal Pouch, Continuous Chain Bag.Different bag sizes and packaging weights can be quickly adjusted.

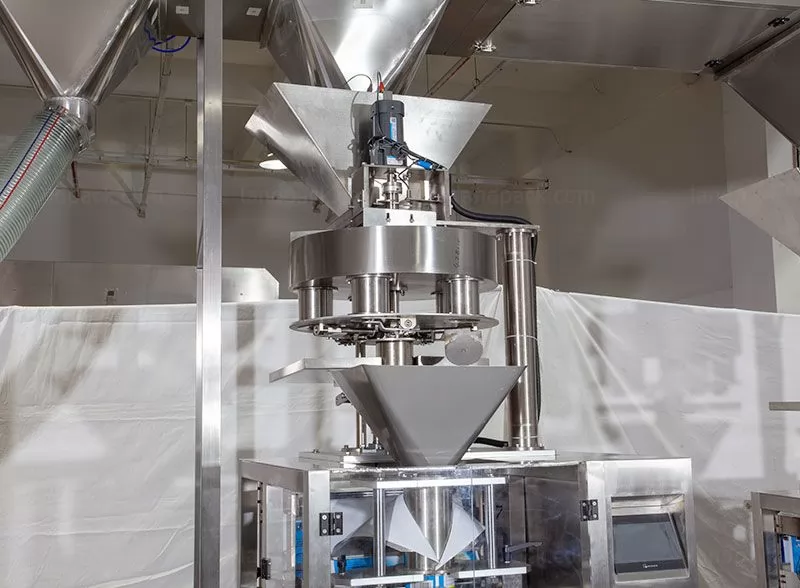

● 1. Volumetric cup measuring system offers high efficiency and cost-effective packaging.
● 2. Suitable for small granule products such as washing powder, sugar, salt and detergent granules.

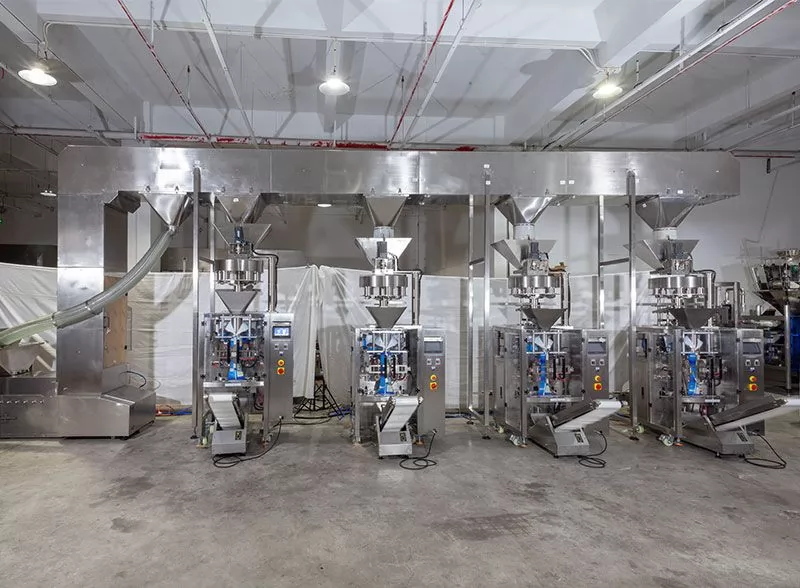

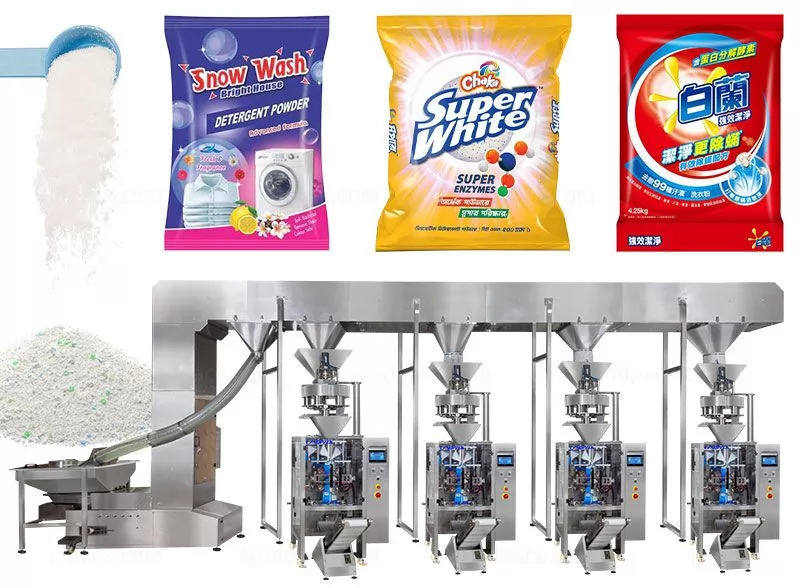

● 3. One-to-four feeding conveyor design saves floor space and improves material distribution efficiency.
● 4. Multiple machine models are available to accommodate different film roll sizes and production capacities.
● 5. PLC and touch screen control system enables easy operation and quick parameter adjustment.
● 6. Dual servo film pulling system ensures stable bag forming and consistent bag appearance.
● 7. Independent PID temperature control delivers reliable sealing performance for various packaging films.
● 8. Fully automatic process integrates feeding, measuring, filling, bag forming, sealing and cutting in one machine.
| Model | LD-320D (one set) | LD-380D (one set) | LD-420 (one set) | LD-520 (one set) | LD-720 (one set) | LD-900 (one set) |
| Film Thickness | 0.04-0.07mm | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | |
| Bag Length | 50-200mm | 60-280mm | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
| Bag Width | 50-150mm | 60-180mm | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
| Film Roll Diameter | Max.300mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm | 400mm |
| Pakaging speed | 35-70 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min | ||
| Film Width | 120-320mm | 180-380mm | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm |
| Measurement Range | 50-500ml | 50-750ml | 150-1500ml | 5-2000ml | 4000ml | 1-25L |
Workflow:

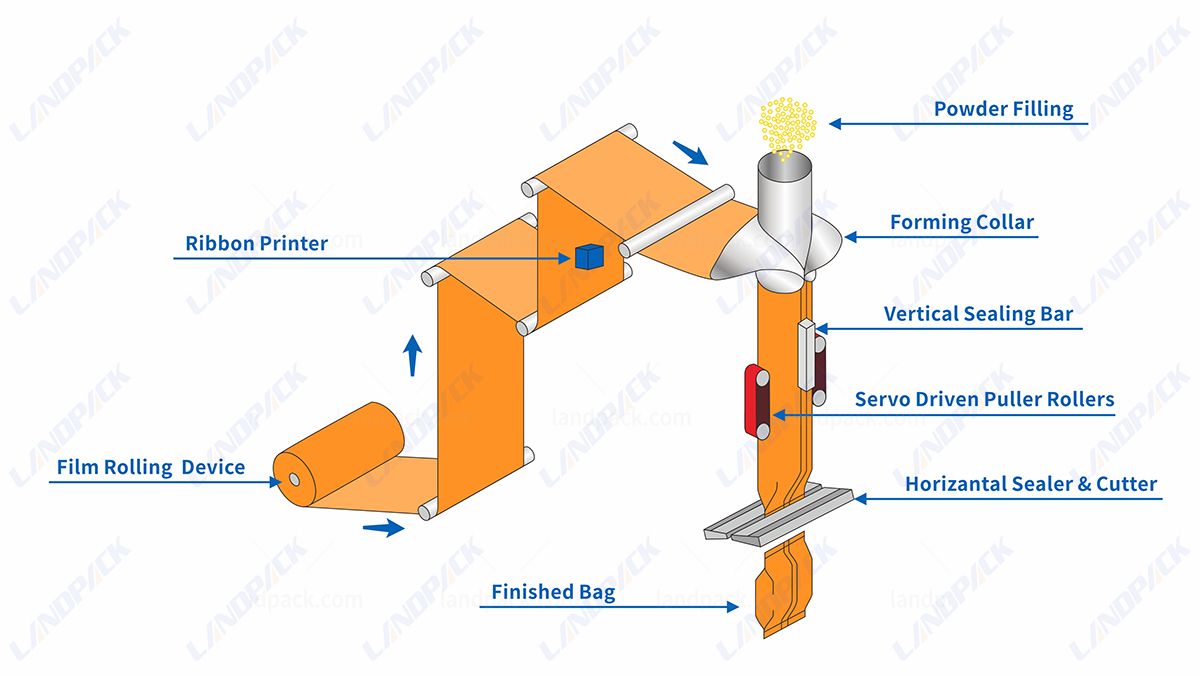

1. Bulk Powder Feeding → One-to-Four Z Elevator Conveying → Powder Distribution → Auger Filling → Bag Forming → Filling → Sealing → Date Coding → Finished Bag Output
