Model: LDSP-210
Application:
Automatic Premade Pouch Case Packing & Palletizing System is a complete end-of-line packaging solution designed for stand-up pouches, zipper pouches and doypack products. Suitable for peanuts, nuts, snacks, candy, dried fruits, coffee beans, pet treats, frozen foods, seeds, grains, beans, rice products and fertilizer granules.
Max.480 cycle/min
Model: LDSP-210
Application:
Automatic Premade Pouch Case Packing & Palletizing System is a complete end-of-line packaging solution designed for stand-up pouches, zipper pouches and doypack products. Suitable for peanuts, nuts, snacks, candy, dried fruits, coffee beans, pet treats, frozen foods, seeds, grains, beans, rice products and fertilizer granules.
Max.480 cycle/min
Application:
Automatic Premade Pouch Case Packing & Palletizing System is a complete end-of-line packaging solution designed for stand-up pouches, zipper pouches and doypack products. Suitable for peanuts, nuts, snacks, candy, dried fruits, coffee beans, pet treats, frozen foods, seeds, grains, beans, rice products and fertilizer granules.
Package Type:
Automatic Premade Pouch Case Packing & Palletizing System is suitable for doypack pouch, zipper pouch, stand-up pouch, gusset Pouch, composite film premade bags.Secondary Packaging: Corrugated Cartons, RSC Shipping Cases, Export Cartons, Palletized Carton Loads.

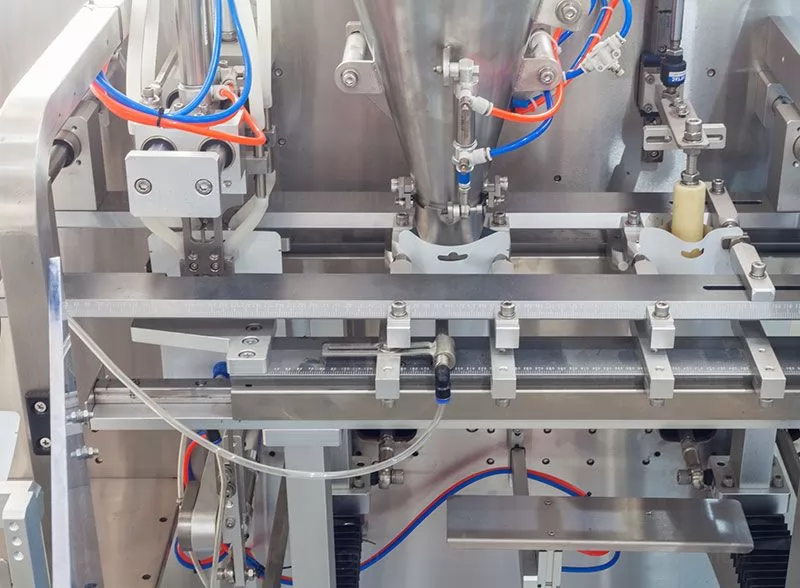

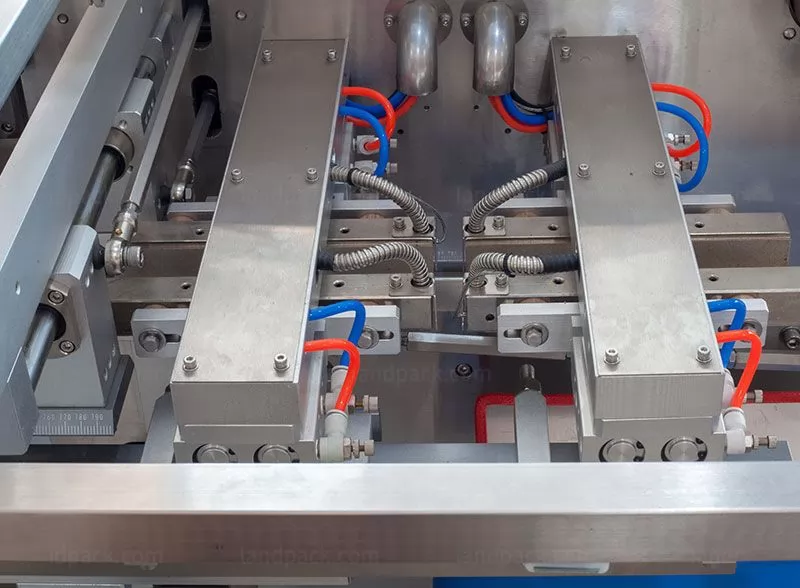

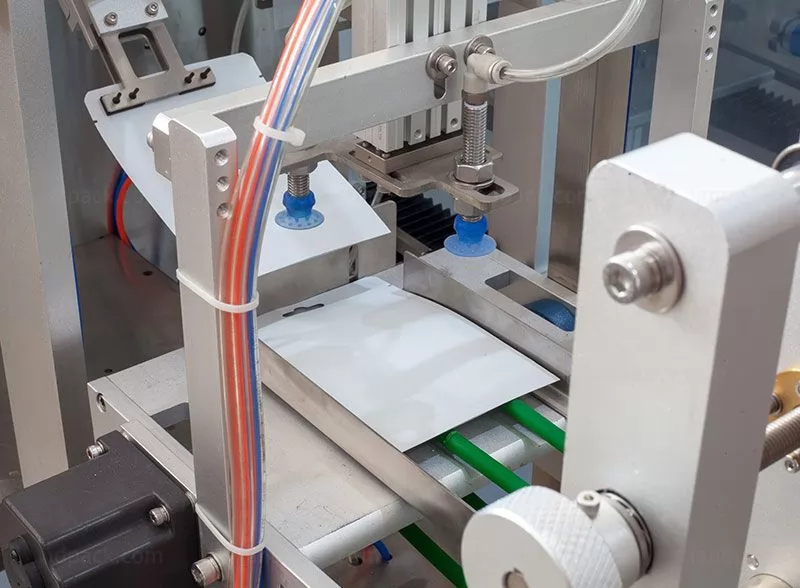

● 1. Automatically completes bag feeding, pouch opening, filling and sealing in one continuous process.
● 2. Multiple infrared sensors ensure no filling without bag opening and trigger automatic fault alarms.
● 3. PLC intelligent control system provides stable operation and easy parameter adjustment.
● 4. Supports quick product and bag size changeovers without replacing major accessories.
● 5. Automatic carton erector features vertical carton storage and carton size adjustment within 2-3 minutes.
● 6. Robotic palletizer handles various carton sizes and supports recipe switching in as little as 5 minutes.
● 7. Compact integrated design saves floor space and supports 24/7 continuous production.
● 8. Delta robot with servo-driven parallel arm delivers high-speed picking, precise positioning and optional vision-guided tracking.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
| Coding machine | |
| Resolution | 1280*800 |
| Language | 17 |
| Printing Rows | 1-4 (5*7 dot),1-5(5*5 dot) |
| Dot Matrix | *5,5*7,7*9,10*12,12*16,18*24,24*32 |
| Printing Contents | Date, time, batch number, serial number, lot number,bar code, QR code, logo, pattem, variable data, and text. |
| Speed | 285m/min |
| Character Height | 1.8-15mm |
| Printing Head to the Base | 3m |
| Printing Distance(Printing head to the object) | <30mm (Printing head to the object) |
| Temperature and Humidity | 5-45°C,30-90% |
| Power | 220W |
| Voltage | 200-240V,AC,50/60Hz |
| Size | 370*310*510mm |
| Net Weight | 23kg |
| Automatic Parallel box packing workstation | |||
| Model | LD-D-800-4-1 | LD-D-1200-4-1 | LD-D-1600-4-1 |
| Number of Axes | 3+1 | 3+1 | 3+1 |
| Arm Reach | 800 | 1200 | 1600 |
| Maximum Pickup Height | 330 | 425 | 750 |
| Rated Load | 3 | 8 | 8 |
| Maximum Load | 5 | 15 | 15 |
| Repeatability | R±0.1 | R±0.1 | R±0.1 |
| Standard Cycle Time | 240 | 200 | 185 |
| Automatic case erecting machine | |
| Model | LD-CF50H |
| Power supply | 220V 50Hz |
| Maximum packing size | 450*400*400mm |
| Minimum packing size | 250*200*150mm |
| Working height | 600mm |
| Sealing speed | 6-10 boxes/min |
| Applicable tape | (W)48-75mm x(L)0-914mm |
| MechanicalDimensions | 2200*2050*1450mm(L*W*H) |
| Machine weight | About 400kg |
| Automatic Carton sealing machine | |
| Machine Model | LD-FXC50 |
| Voltage | 220V 50Hz |
| Power | 400W |
| Case Size | (L)200-600mm*(W)150-500mm*(H)150-500mm |
| Tape Width | 48-72mm |
| Conveying Speed | 18m/min |
| Height of Worktable | 600-750mm |
| Machine Size | About 1760*890*1450mm(L*W*H) |
| Weight detector | |||||
| Model | LD10 | LD100 | LD201 | LD401 | LD1000 |
| Weight Range | 10-99g | 100-200g | 201-400g | 401-999g | 1000-10000g |
| Rate | 65bag/min | 60bag/min | 50bag/min | 45bag/min | 40bag/min |
| Precision | ±0.5g | ±1g | |||
| Minimum scale | 0.1g | ||||
| Predesign pattern | 10kinds | ||||
| Size | 1050*681*1260 | ||||
| Voltage | 220V | ||||
| Power | 300W | ||||
| Automatic Robot palletizer | |||
| Model | LD60-PL | LD120-PL | LD1800-PL |
| Arm Reach | 2000mm | 2400mm | 3060mm |
| Maximum Load | 60kg | 120kg | 180kg |
| Weight | 500kg | 1050kg | 1120kg |
| Pallet Dimensions | 1200*1200 | 1200*1200 | 1400*1400 |
| Palletizing Speed | 8 cycle/min | 8 cycle/min | 8 cycle/min |
| Stretch Wrapping | |
| Pallet Size | L1200 × W1200 mm |
| Turntable Speed | Variable speed with soft start & stop function |
| Wrapping Height | 1800 mm |
| Loading Weight | MP 303B: 2000 kg; MP 303A: 1000 kg |
| Pre-stretch Ratio | 150% |
| Turntable Height | 550 mm |

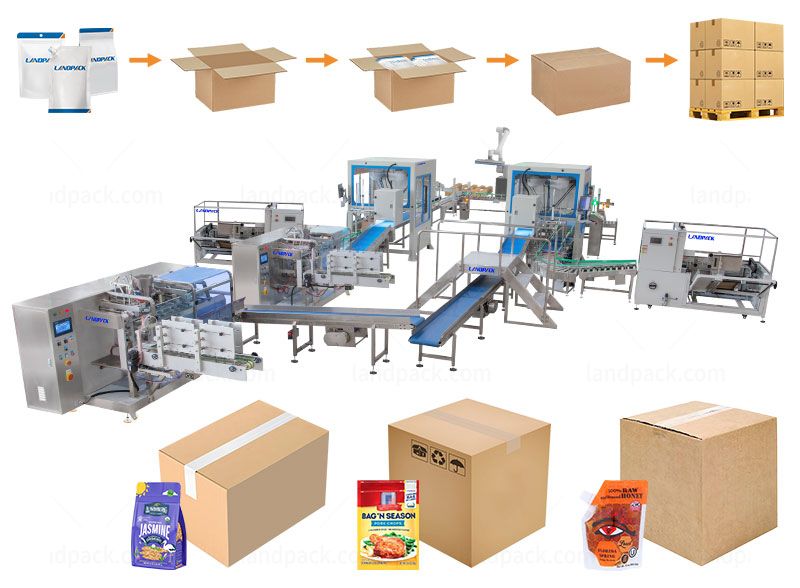

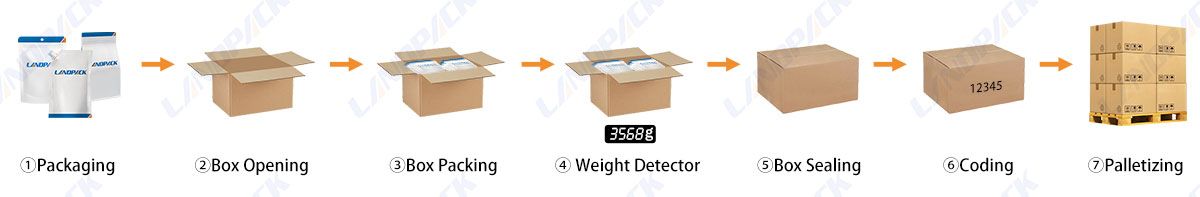

Workflow:
1. Product Feeding → Chain Bucket Elevating → Weighing → Premade Pouch Packing → Coding → Finished Product Conveying → Automatic Case Packing → Carton Erecting → Carton Sealing → Case Check Weighing → Robotic Palletizing → Stretch Wrapping → Finished Pallet Output
After receiving your inquiry, We will send you the quotation as soon as possible.
