Model: LD-720Y
Application:
This packing line is ideal for oral liquids, herbal extracts, healthcare liquids, nutritional supplements, flavor concentrates, honey liquids, beverage syrups, nutritional drinks, vitamin liquids, collagen drinks, and functional liquid supplements.
Max.120 cycle/min
Model: LD-720Y
Application:
This packing line is ideal for oral liquids, herbal extracts, healthcare liquids, nutritional supplements, flavor concentrates, honey liquids, beverage syrups, nutritional drinks, vitamin liquids, collagen drinks, and functional liquid supplements.
Max.120 cycle/min
Application:
This packing line is ideal for oral liquids, herbal extracts, healthcare liquids, nutritional supplements, flavor concentrates, honey liquids, beverage syrups, nutritional drinks, vitamin liquids, collagen drinks, and functional liquid supplements.
Package Type:
This packaging line is suitable for producing 3-side seal sachet, 4-side seal sachet, and stick pack. Finished stick packs can be automatically counted and loaded into cartons according to customized quantities such as 5, 10, 20, 30 or more sachets per box.

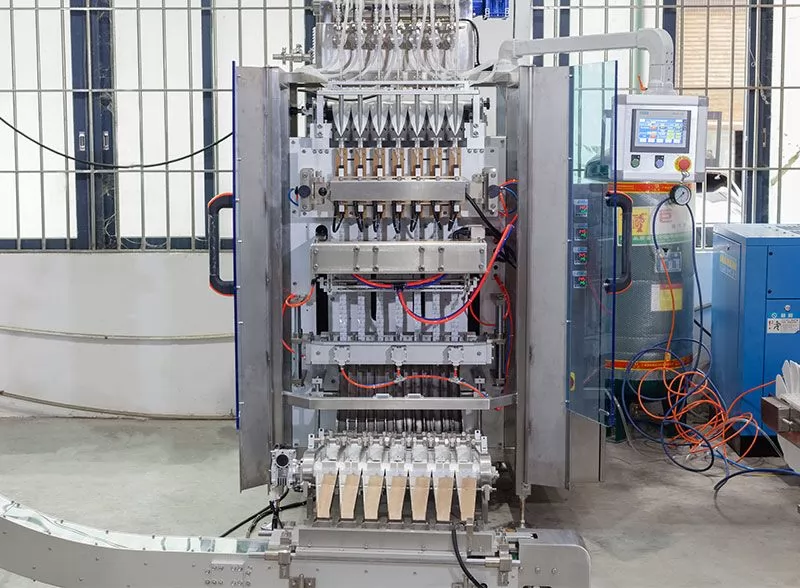

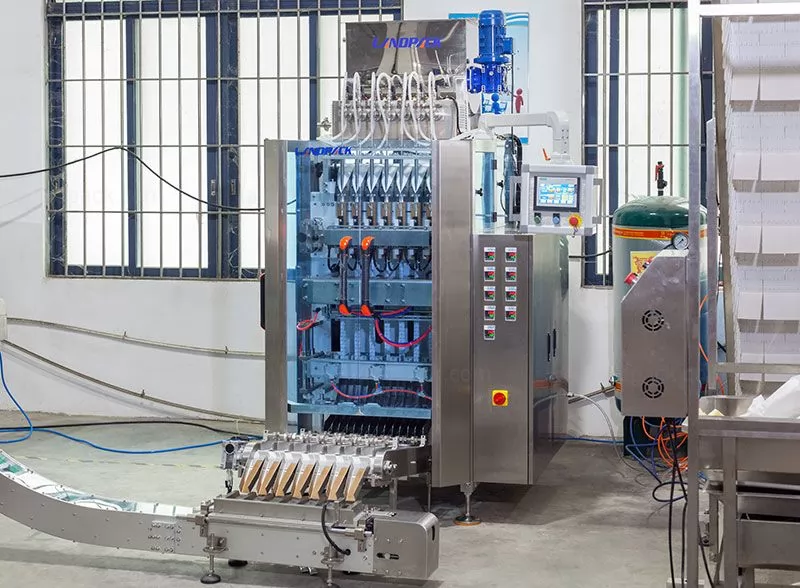

● 1. Integrated liquid stick pack packaging and cartoning line combines multi-lane sachet packaging, counting, grouping and automatic cartoning into one continuous process.
● 2. Available with up to 8 lanes, delivering high production efficiency of 20-40 cycles per minute to meet large-scale manufacturing requirements.
● 3. Servo-driven film pulling system ensures stable pouch forming, accurate registration and smooth packaging film movement.
● 4. Automatic film slitting and cutting technology provides clean sachet separation and consistent package appearance.

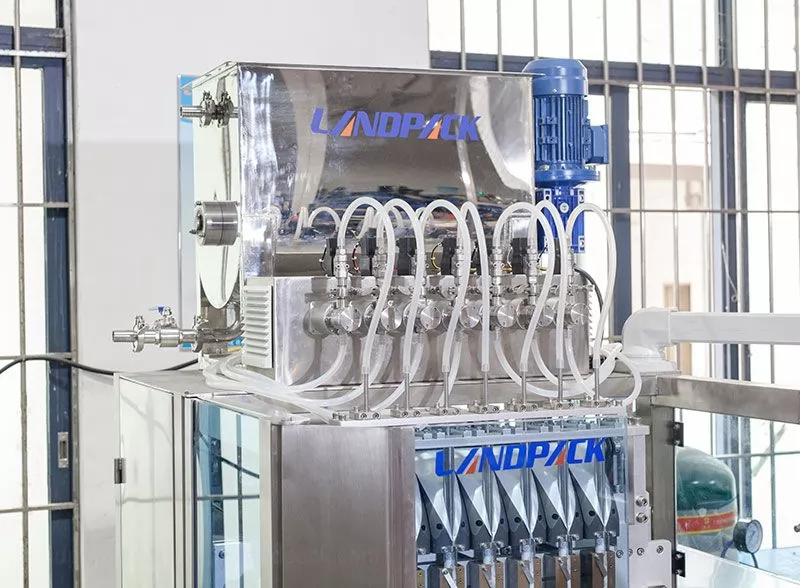

● 5. Precision liquid filling system supports filling ranges from 2-50ml, suitable for oral liquids, syrups, healthcare liquids and beverage concentrates.
● 6. Intelligent cartoning machine integrates carton opening, product loading, folding and sealing, reducing the workload of 3-6 operators.
● 7. PLC touch screen control with multiple photoelectric sensors enables accurate positioning, fault detection and no-product-no-carton protection.
● 8. SUS304 stainless steel construction and industrial-grade electrical components ensure hygienic production, long service life and reliable 24/7 operation.
| Multi-Channel Packaging Machines Parameter | |||
| Model | LD-480Y | LD-720Y | LD-960Y |
| Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/4 sides sealing | 3/4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
Workflow:

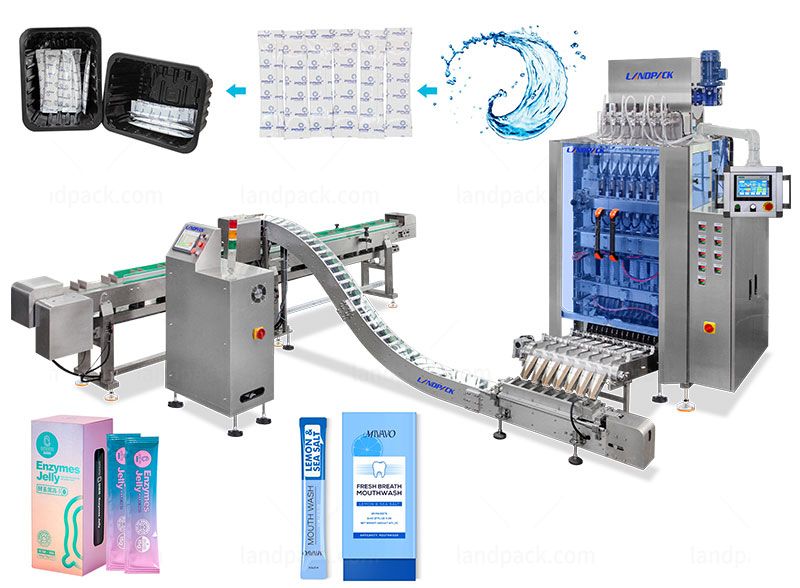

1.Film Feeding → Multi-Lane Forming → Liquid Filling → Sealing → Cutting → Sachet Counting → Product Collection → Servo Positioning → Automatic Cartoning → Finished Carton Output
