Model: LD-B8
Application:
The Fully Automatic Granular Pouch Packing System is a complete end-of-line automation solution designed for granular products such as sugar, salt, rice, beans, seeds, seasoning granules, dried food and snack products, fertilizer granules, feed pellets, soil additives and agricultural chemicals.
Max.480 cycle/min
Model: LD-B8
Application:
The Fully Automatic Granular Pouch Packing System is a complete end-of-line automation solution designed for granular products such as sugar, salt, rice, beans, seeds, seasoning granules, dried food and snack products, fertilizer granules, feed pellets, soil additives and agricultural chemicals.
Max.480 cycle/min
Application:
The Fully Automatic Granular Pouch Packing System is a complete end-of-line automation solution designed for granular products such as sugar, salt, rice, beans, seeds, seasoning granules, dried food and snack products, fertilizer granules, feed pellets, soil additives and agricultural chemicals.
Package Type:
The Fully Automatic Granular Pouch Packing System is designed for pillow bags, gusset bags, quad seal bags, stand-up pouches, stick packs, sachets and premade pouches containing granular materials. Finished bags are automatically counted, grouped in fixed quantities, and transferred into corrugated cartons.
● 1. High-speed automation significantly increases end-of-line packaging efficiency, enabling continuous operation with consistent output performance.
● 2. 24/7 running capability eliminates downtime caused by shifts, fatigue or manual limitations, maximizing overall production capacity.
● 3. Reduced labor dependency allows workers to shift from repetitive packing tasks to higher-value roles such as supervision and quality control.
● 4. Lower operating costs by minimizing manpower requirements, training expenses and overtime labor spending.
● 5. Improved workplace safety by eliminating repetitive lifting and reducing risks of strain-related injuries and handling accidents.
● 6. Consistent and standardized packaging ensures uniform carton loading patterns, improving product appearance and brand presentation.
● 7. Flexible multi-format capability supports different carton sizes, pack patterns and product types with fast changeover via PLC control.
● 8. Hygienic and Industry 4.0-ready design enables integration with MES/ERP systems while maintaining clean, stainless-steel compliant production environments.
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||

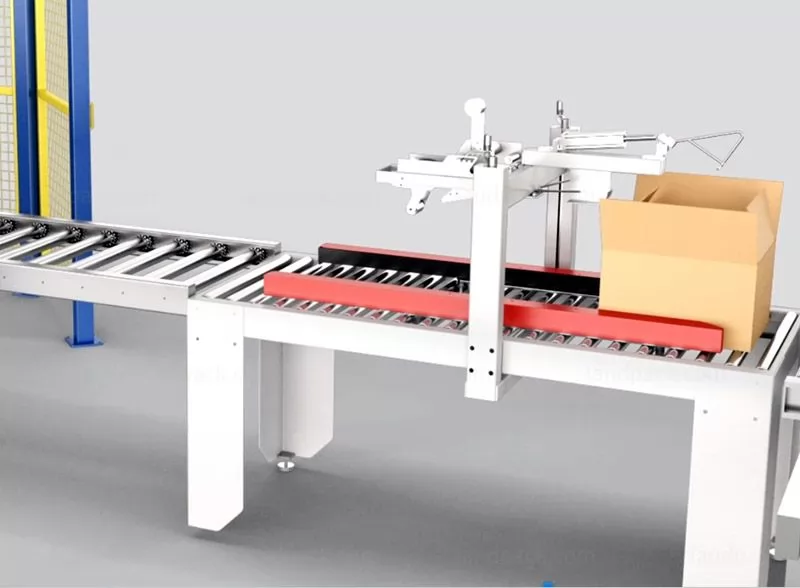

| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Workflow:

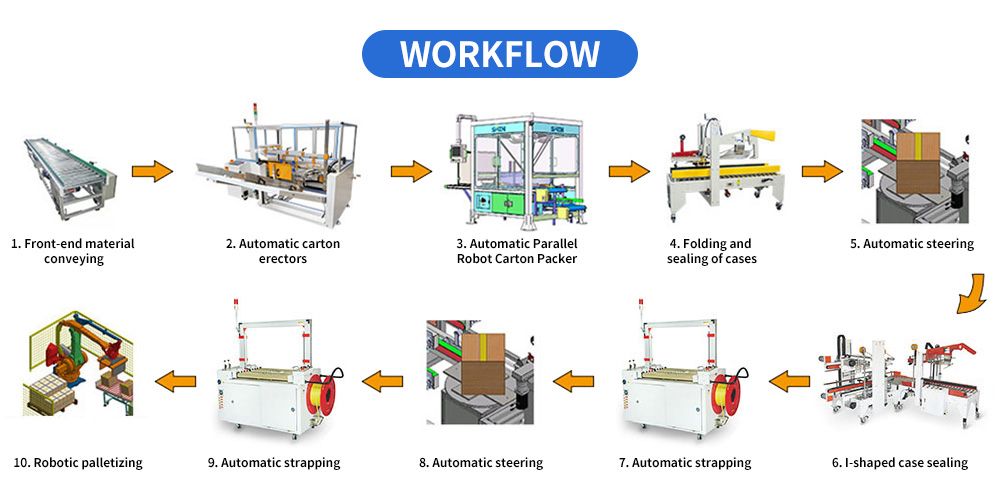

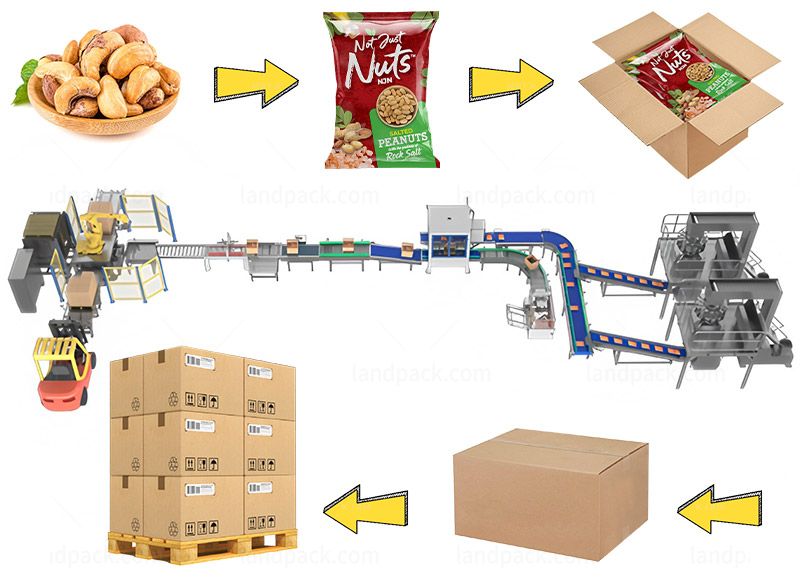

1. Pouch Output → Counting System → Product Grouping → Carton Erecting → Robotic Loading → Carton Sealing → Palletizing → Finished Pallet Output
