Model: LD280BK
Application:

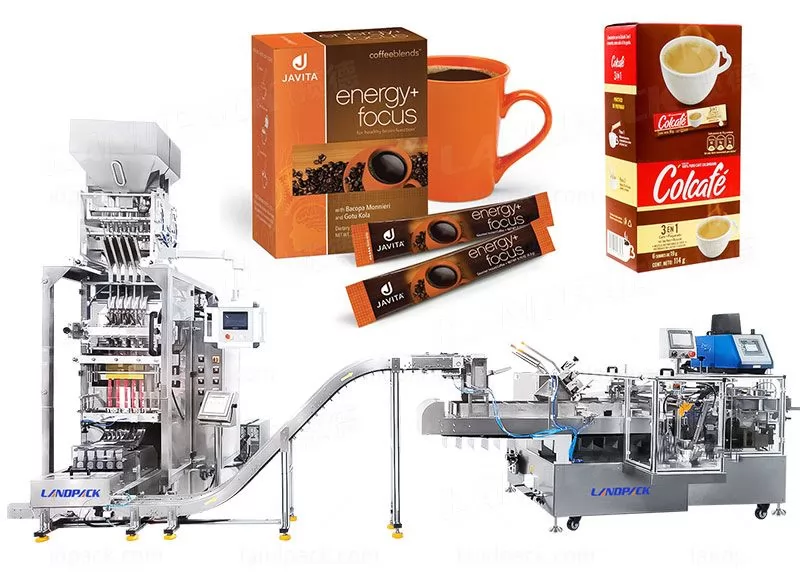

Multi-Lane Stick Pack Granule Cartoning Packing Line is a fully automatic packaging solution suitable for sugar sticks, salt sticks, coffee granules, instant beverage mixes, seasoning products, Granular medicines, oral granules, herbal granules, and healthcare supplements.
Max.120 cycle/min
Model: LD280BK
Application:
Multi-Lane Stick Pack Granule Cartoning Packing Line is a fully automatic packaging solution suitable for sugar sticks, salt sticks, coffee granules, instant beverage mixes, seasoning products, Granular medicines, oral granules, herbal granules, and healthcare supplements.
Max.120 cycle/min
Application:
Multi-Lane Stick Pack Granule Cartoning Packing Line is a fully automatic packaging solution suitable for sugar sticks, salt sticks, coffee granules, instant beverage mixes, seasoning products, Granular medicines, oral granules, herbal granules, and healthcare supplements.
Package Type:
Multi-Lane Stick Pack Granule Cartoning Packing Line is designed for producing stick packs, sachets and narrow pillow-style pouches containing granular materials. Finished stick packs are automatically counted and loaded into retail cartons in customized quantities such as 5, 10, 20, 30 or more sachets per box.
● 1. Fully automatic line integrates multi-lane granule stick pack packaging, counting, conveying and cartoning into one continuous production process.
● 2. High-speed cartoning system delivers up to 00 cartons per minute, ideal for large-volume granule packaging applications.
● 3. Automatic carton feeding magazine holds up to 1,500 cartons, reducing refill frequency and improving production continuity.
● 4. Intelligent product detection system enables no product, no carton feeding, minimizing carton waste and operating costs.
● 5. Dual-side carton opening mechanism significantly improves carton opening success rate and ensures stable operation.
● 6. Fast changeover design allows carton size adjustment within approximately 1 minute, improving flexibility for multi-SKU production.
● 7. PLC control system with automatic fault alarm and diagnostic display enables quick troubleshooting and reliable operation.
● 8. Automatic carton folding and sealing system provides neat, secure and professional retail packaging for granule stick packs such as coffee, sugar, nutritional powders and instant beverage products.
| MULTI-LANE STICK PACK GRANULE PACKAGING MACHINE | |
Model | LD280BK |
Lane number | 2-6 Lanes |

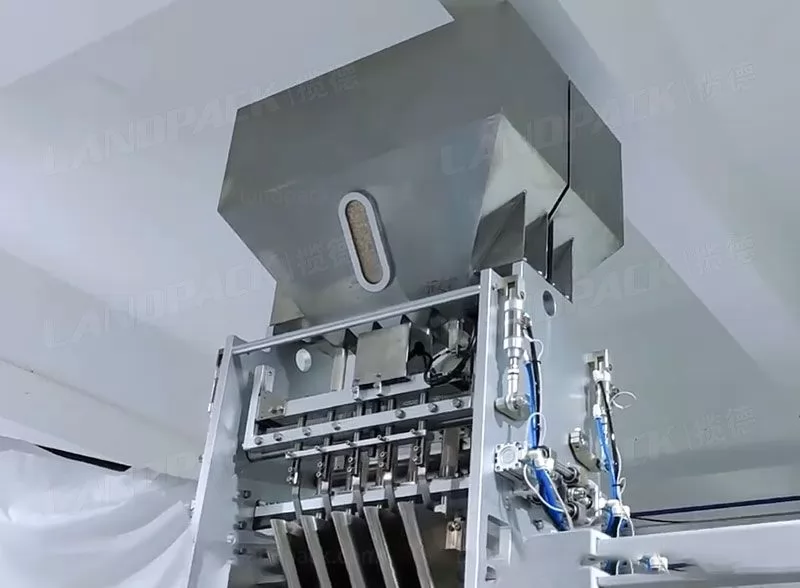

Filling Method | 1. Volumetric cup; 2. Weigher; |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-65mm |
Film width & Thickness | Max.280mm, 0.07-0.10mm |

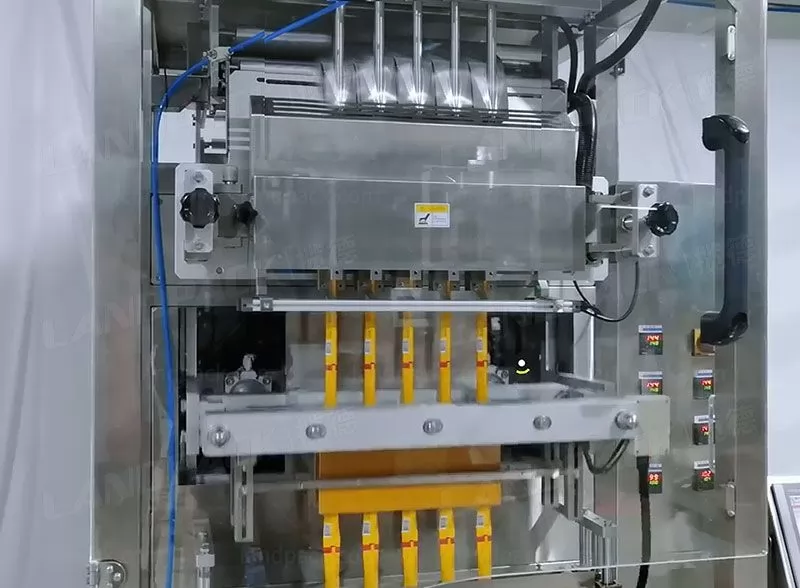

Sealing type | Back sealing/ Stick bag |
Cutting type | 1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 3.5kw |
Dimension & weight | 1385*918*2005mm;350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |

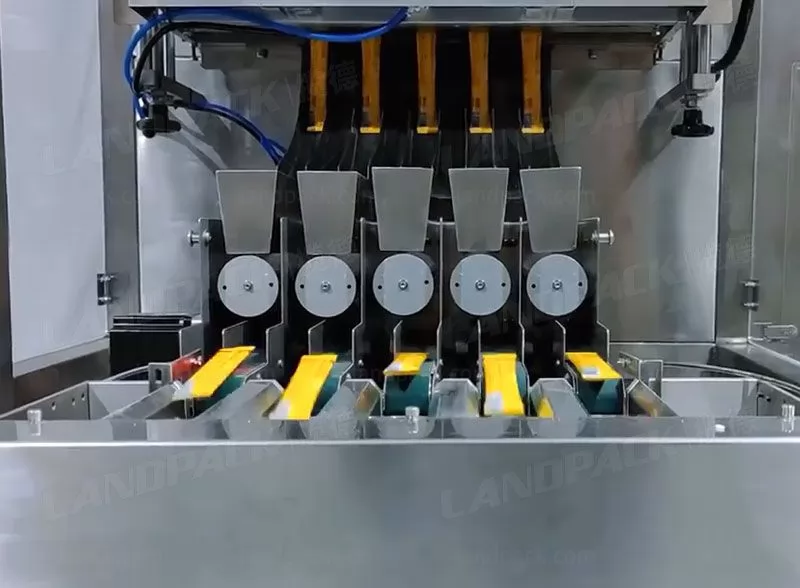

Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
Workflow:
1.Granule Feeding → Multi-Lane Filling → Stick Pack Forming → Sealing → Cutting → Counting → Product Collection → Automatic Cartoning → Finished Carton Output
