Model: LDSP-260AS
Application:
Horizontal Premade Pouch Doypack Packaging Line is suitable for seasoning powder, spice blends, soup mix, chicken seasoning, hot pot seasoning, barbecue seasoning and compound condiments, flavoring powder, seasoning sachets, and snack additives.
Max.480 cycle/min
Model: LDSP-260AS
Application:
Horizontal Premade Pouch Doypack Packaging Line is suitable for seasoning powder, spice blends, soup mix, chicken seasoning, hot pot seasoning, barbecue seasoning and compound condiments, flavoring powder, seasoning sachets, and snack additives.
Max.480 cycle/min
Application:
Horizontal Premade Pouch Doypack Packaging Line is suitable for seasoning powder, spice blends, soup mix, chicken seasoning, hot pot seasoning, barbecue seasoning and compound condiments, flavoring powder, seasoning sachets, and snack additives.
Package Type:
The Horizontal Premade Pouch Doypack Packaging Line supports a wide range of premade pouch styles such as Stand Up Pouch, Doypack Pouch, Zipper Pouch, Three Side Seal Pouch, Four Side Seal Pouch, Gusset Pouch, Quad Seal Pouch, Custom Printed Premade Pouch.Secondary Packaging:Corrugated Cartons, Shipping Cases, Retail Cartons, Export Cartons.
● 1. Siemens PLC control system with user-friendly touch screen for simple operation and stable performance.

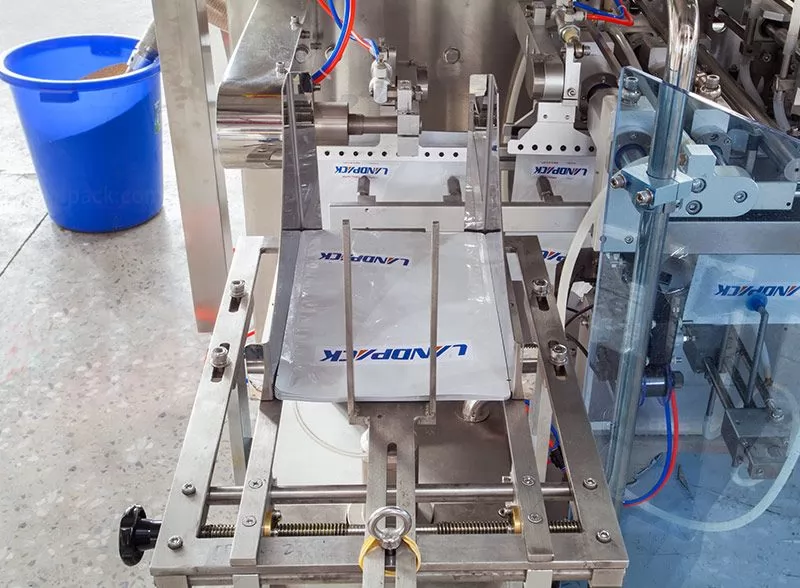

● 2. Precision indexing mechanism ensures accurate pouch feeding, filling and sealing at every station.

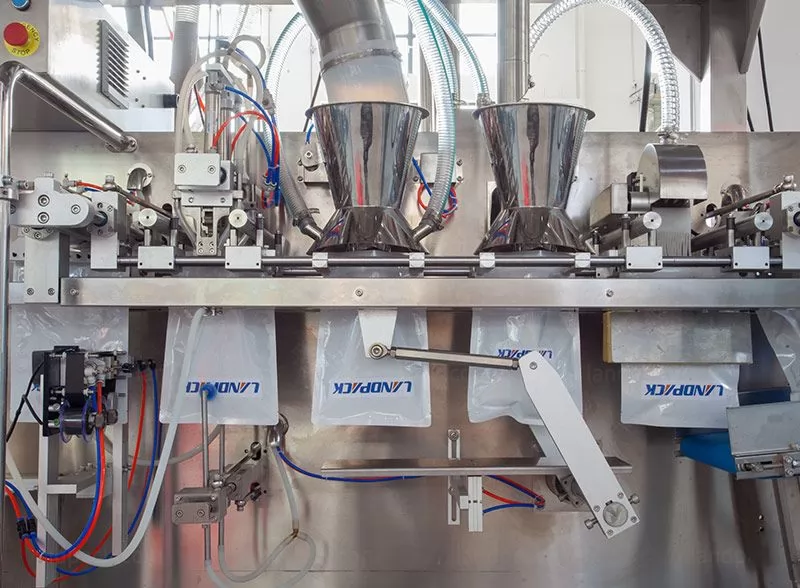

● 3. Dual measuring systems with dual discharge stations accommodate different product combinations efficiently.
● 4. Automatic bag detection system prevents filling and sealing when bags are missing or improperly opened.
● 5. Bag mouth and bag surface dust removal devices keep finished pouches cleaner and more presentable.
● 6. Full SUS304 stainless steel construction provides excellent hygiene, durability and easy maintenance.
● 7. Variable frequency speed control allows flexible adjustment according to different products and production requirements.
● 8. Integrated automatic carton erector and carton sealer enable fully automated case packing operations.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |

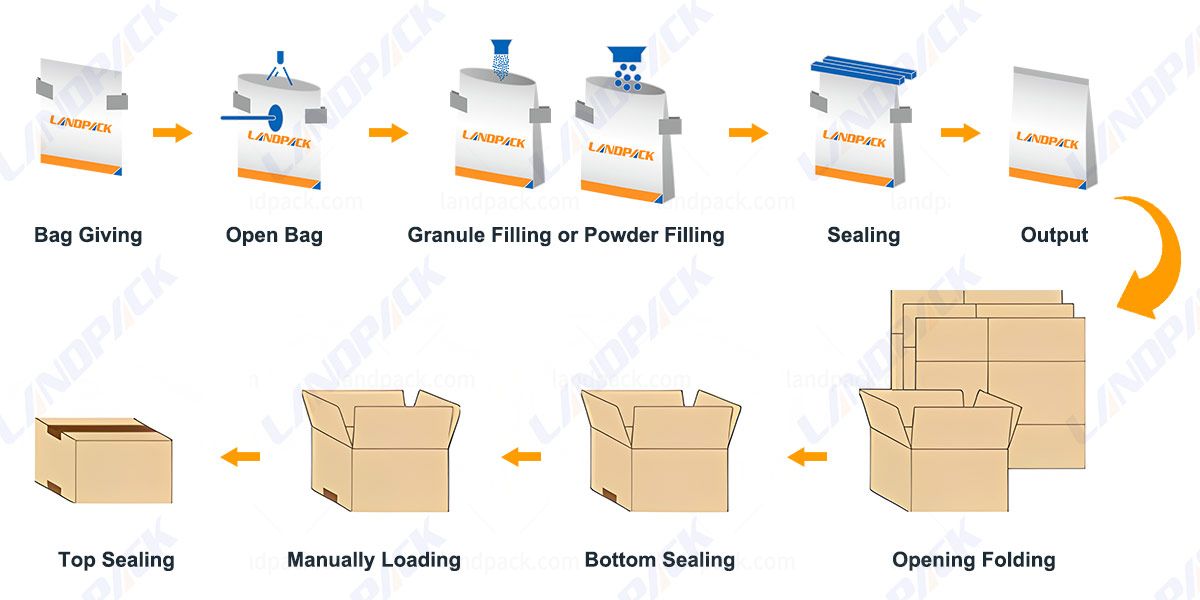

| Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
| Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
| Collocation | Screw metering,screw elevator | |||
| Coding machine | |
| Resolution | 1280*800 |
| Language | 17 |
| Printing Rows | 1-4 (5*7 dot),1-5(5*5 dot) |
| Dot Matrix | *5,5*7,7*9,10*12,12*16,18*24,24*32 |
| Printing Contents | Date, time, batch number, serial number, lot number,bar code, QR code, logo, pattem, variable data, and text. |
| Speed | 285m/min |
| Character Height | 1.8-15mm |
| Printing Head to the Base | 3m |
| Printing Distance(Printing head to the object) | <30mm (Printing head to the object) |
| Temperature and Humidity | 5-45°C,30-90% |
| Power | 220W |
| Voltage | 200-240V,AC,50/60Hz |
| Size | 370*310*510mm |
| Net Weight | 23kg |
| Automatic case erecting machine | |
| Model | LD-CF50H |
| Power supply | 220V 50Hz |
| Maximum packing size | 450*400*400mm |
| Minimum packing size | 250*200*150mm |
| Working height | 600mm |
| Sealing speed | 6-10 boxes/min |
| Applicable tape | (W)48-75mm x(L)0-914mm |
| MechanicalDimensions | 2200*2050*1450mm(L*W*H) |
| Machine weight | About 400kg |
| Automatic Carton sealing machine | |
| Machine Model | LD-FXC50 |
| Voltage | 220V 50Hz |
| Power | 400W |
| Case Size | (L)200-600mm*(W)150-500mm*(H)150-500mm |
| Tape Width | 48-72mm |
| Conveying Speed | 18m/min |
| Height of Worktable | 600-750mm |
| Machine Size | About 1760*890*1450mm(L*W*H) |
| Weight detector | |||||
| Model | LD10 | LD100 | LD201 | LD401 | LD1000 |
| Weight Range | 10-99g | 100-200g | 201-400g | 401-999g | 1000-10000g |
| Rate | 65bag/min | 60bag/min | 50bag/min | 45bag/min | 40bag/min |
| Precision | ±0.5g | ±1g | |||
| Minimum scale | 0.1g | ||||
| Predesign pattern | 10kinds | ||||
| Size | 1050*681*1260 | ||||
| Voltage | 220V | ||||
| Power | 300W | ||||
Workflow:

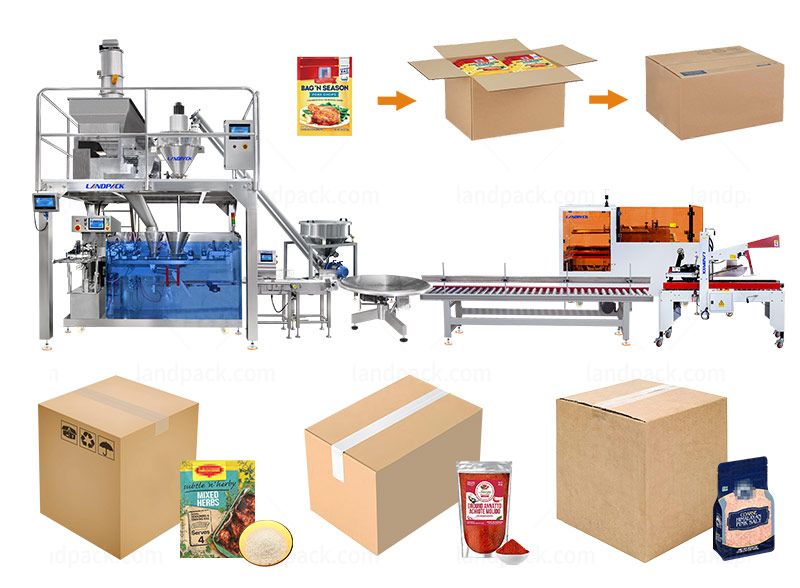

1. Powder Feeding → Vacuum Loading → Granule Feeding → Linear Weighing → Pouch Feeding → Pouch Opening → Filling → Sealing → Weight Inspection → Product Collection → Carton Erecting → Case Packing → Carton Sealing → Finished Product Output
