Model: LD-YDPHE2A
Production capacity: 100-150pcs/min
Power Supply: 220V 50-60Hz
Rated Power: 10500W
Dimensions: 4300X1980X1960mm
150pcs/min
175×95mm
Model: LD-YDPHE2A
Production capacity: 100-150pcs/min
Power Supply: 220V 50-60Hz
Rated Power: 10500W
Dimensions: 4300X1980X1960mm
150pcs/min
175×95mm

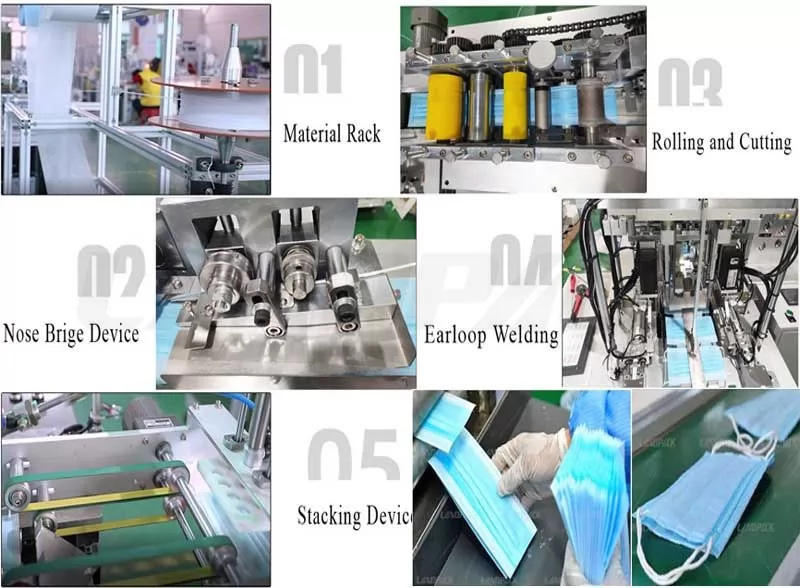

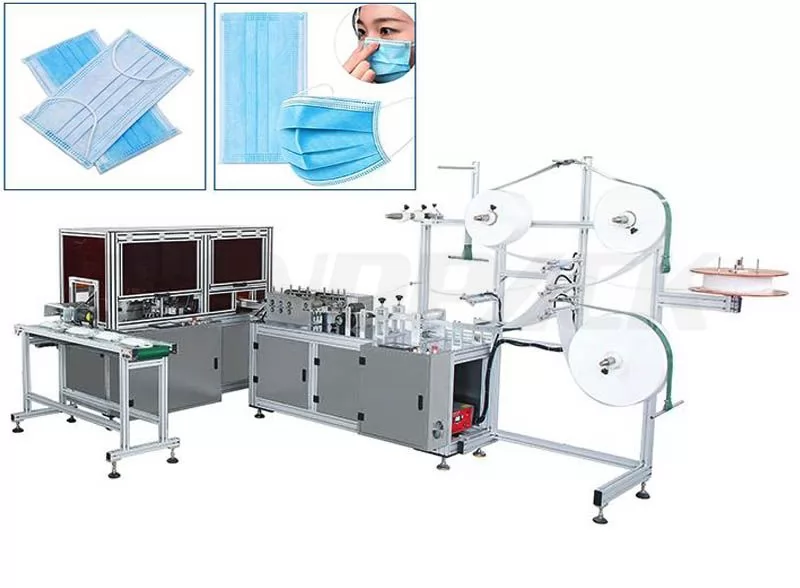

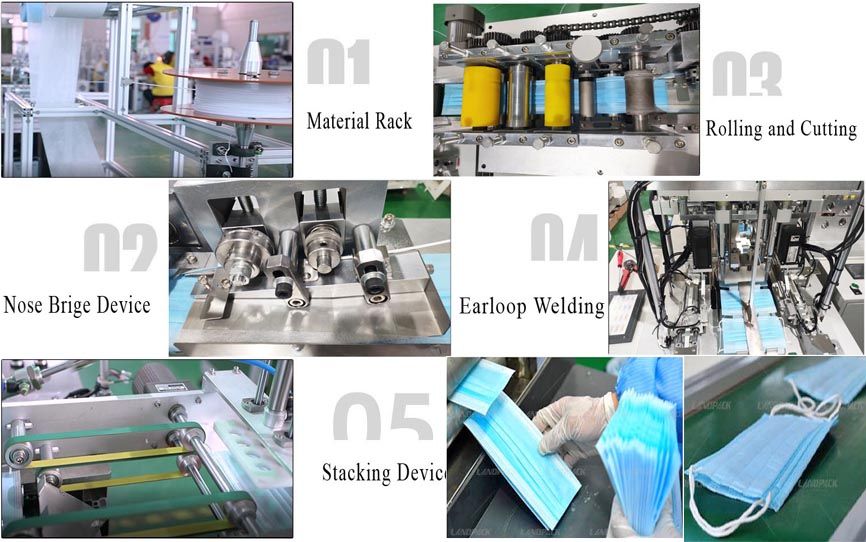

● The fully automatic one-to-one full-servo masк machine is a scientific and technological product developed by our company that integrates light, electricity and gas. The entire production line consists of a filming machine with a speed of 120-150 pieces per minute and full servo ears. It is composed of welding machine and finished product conveying system, and the intelligent control system completes the whole set of coordinated actions, and stably completes the production capacity of 100-150 pieces per minute.
● 1. The speed is adjustable, the product quality is stable, the operation is convenient, and the production efficiency is high, 80-100 pieces/min.
● 2. The all-aluminum profile machine is clean and beautiful, without welding and painting. Man-machine interface touch screen type control, built-in time, total output, daily output, set number automatic alarm and shutdown, digital keys to adjust the filming speed.
● 3. The entire production line is equipped with 8 sets of servo and motion controller systems, so that each action can be stable, coordinated and efficient.
● 4. The entire production line occupies a small workshop area and low labor intensity.
● Output: 100-150 pieces/min
● Air source: 0.6-0.8Mpa
● Total power: 10.5KW
● Voltage: 220V single phase 50HZ
● Masк size: 175X95mm
● Dimensions: 4300X1980X1960mm
● Whole machine weight: about 1000kg
● Flat masк raw materials：
● A. 2 layers masк：non-woven 、nose bridge strip
● B. 3 layers masк ：non-woven、PP melt -blown fabric、nose bridge bar
● C. Activated carbon masк：non-woven、PP melt -blown fabric、Activated carbon fabric, nose bridge bar
After receiving your inquiry, We will send you the quotation as soon as possible.
