Production capacity: 80-100pcs/min
Voltage：220V, Local voltage
Rated Power: 10000W
Applicable materials: pp non-woven composite fiber

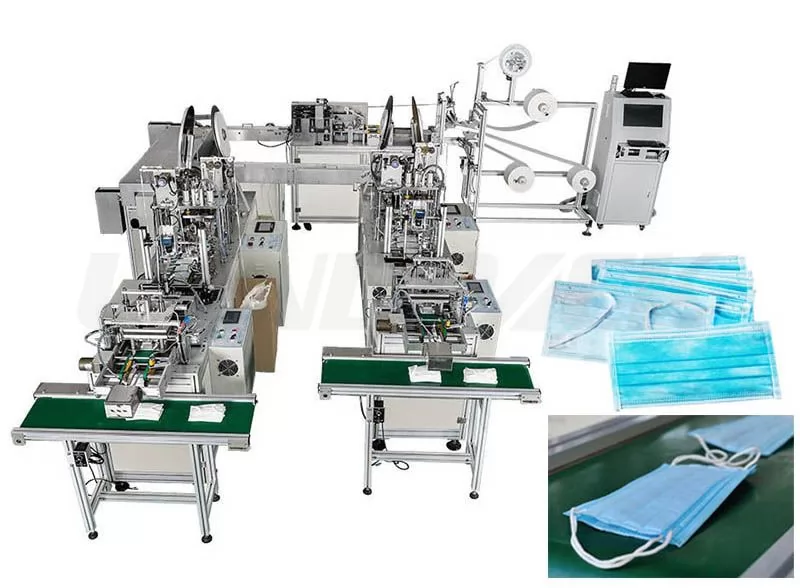

● Production Line of disposable medical flat masкs laminated with three layers of fabric.

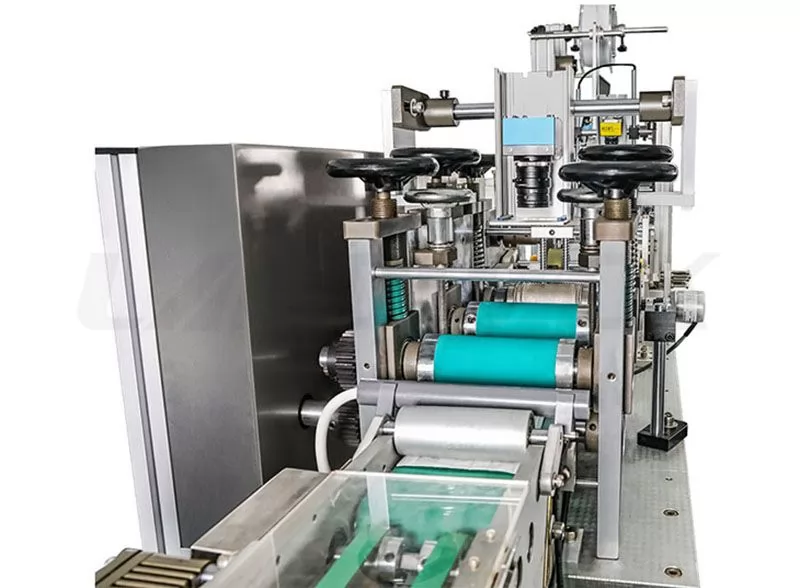

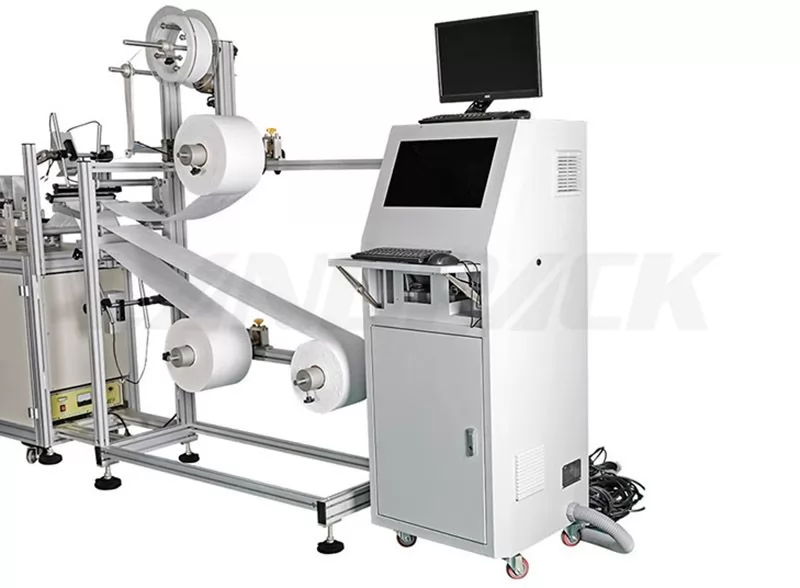

● The top layer, filter layer, and bottom layer of three rolls of fabric are automatically aligned and fed.The two sides are continuously rolled by the ultrasonic system.The nose clip is automatically cut & fed into the underlying fabric, and the first step of pressing and merging is cut into a single fabric at the same time;
● After the lamination is completed, the conveying line is sent into two automatic welding ear belt devices in a one-to-two manner;

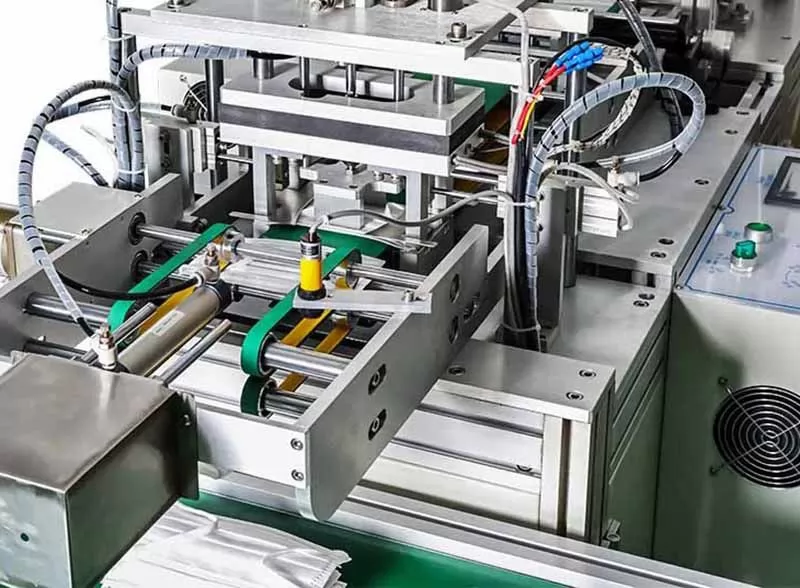

● The earband is automatically welded through automatic cutting, clamping, handling and positioning, and ultrasonic welding.

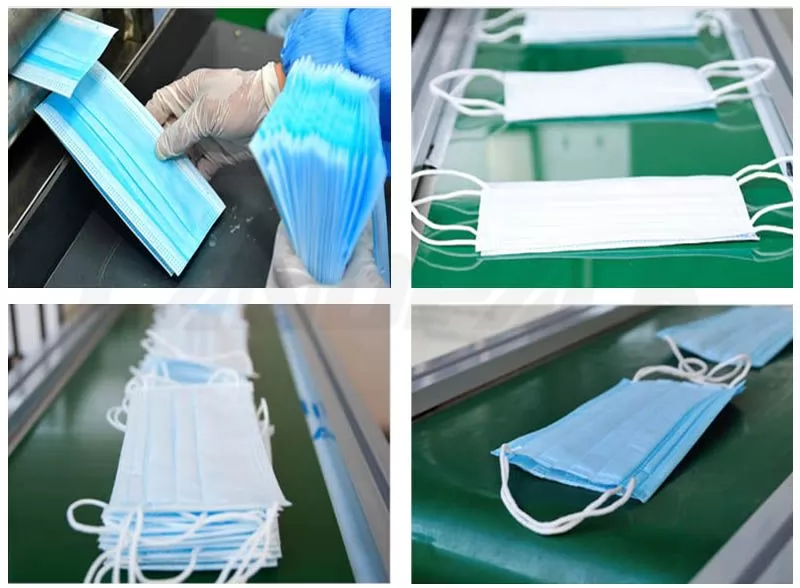

● After the welding, the masк will automatically goes to the next process.
|Type||Three-layer flat medical masк, surgical masк|
|Production speed||80 ~ 100 pieces / min|
|Applicable materials||pp non-woven composite fiber|
|Layers of cloth||3 layers|
|Composite approach||Ultrasonic welding|
|Operation method||HMI control system|
● Provide 24-hour service hotline.
● Reply and find out solution within the shortest time according to customer's requirement.
● Provide on call service to help customer solve problems.
● Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
● Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
● Provide one year guaranty and lifetime maintenance.
