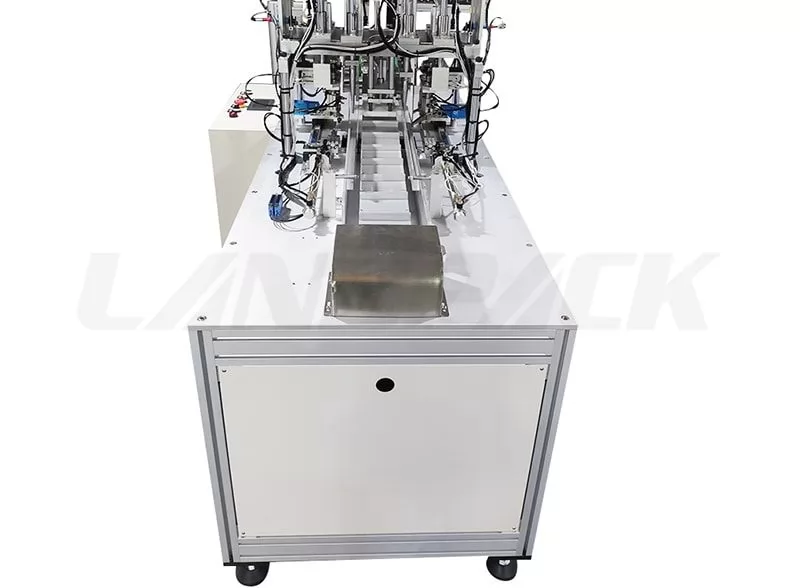

Model No:LD-HE170
Voltage: 220V or customized
Ultrasonic power: 2KW
Control system: PLC control system
Speed: 80-100pcs/min
Machine Weight: 1000KG
Machine size: 2100*1150*1700mm
80pcs/min
2000w
● Low Energy Consumption Ear-loop Welding Machine Of Disposable Face Masк

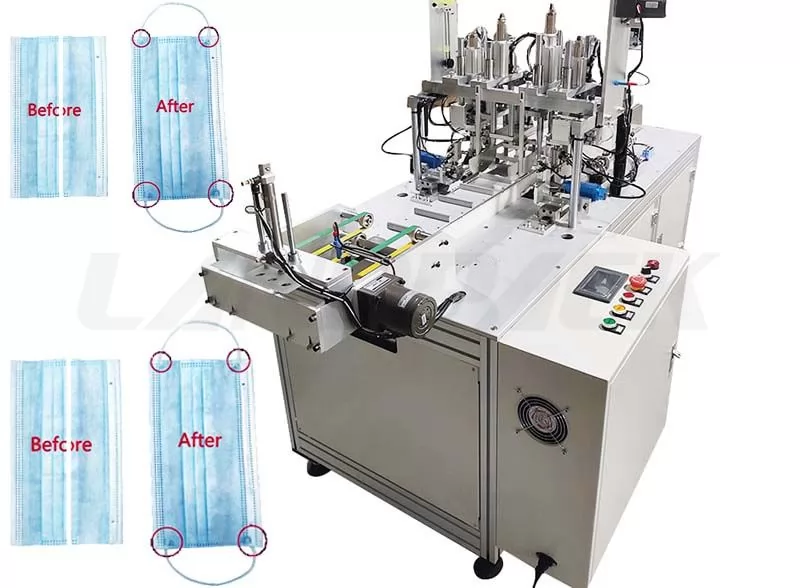

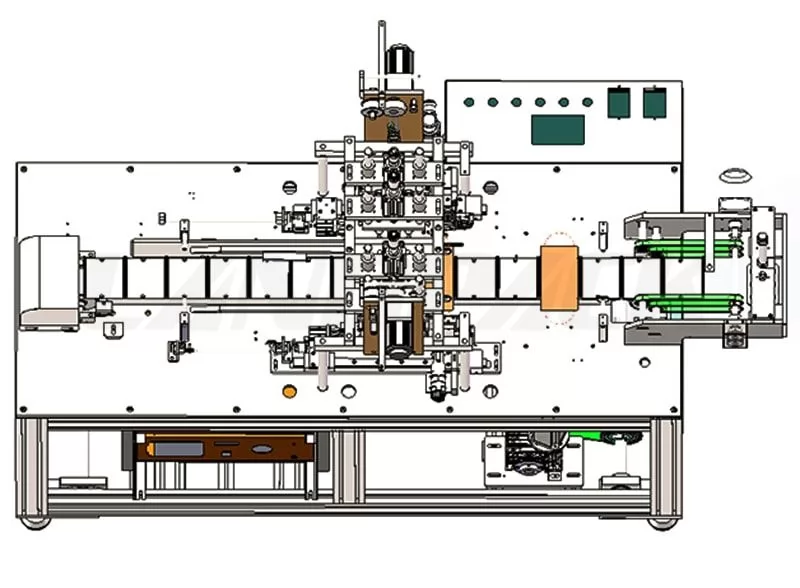

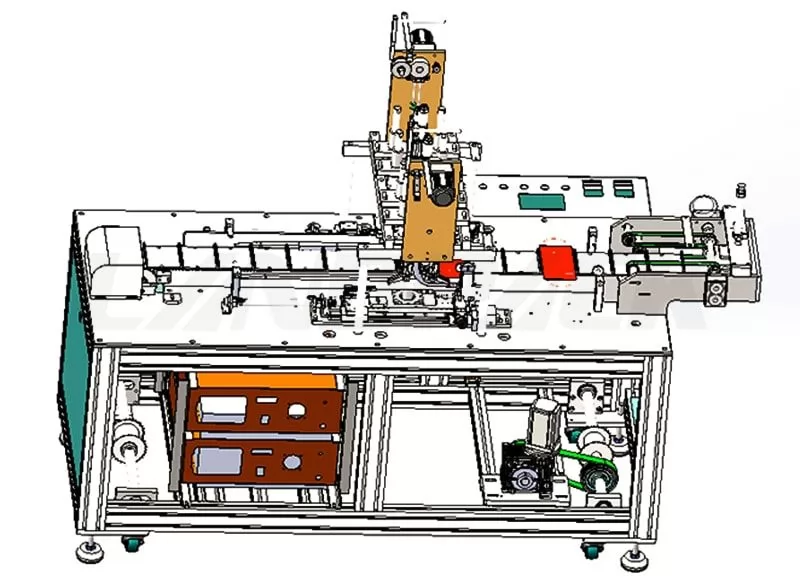

● The ear loop welding machine mainly including the ear belt automatic feeding mechanism, the ear belt shear mechanism, the automatic placement of fixed-point welding mechanism, the outlet mechanism; Realize automatic feeding, constant length and cutting of the ear band, and place the cut ear band in the specified position of the face masк, and the equipment automatically completes ultrasonic welding between the ear band and the masк.
● 1. Accurately weld the ear band of the masк by means of inductive movement.
● 2, welding, pressure, speed adjustable, simple operation.
● 3. High production efficiency, good welding quality, environmental protection and energy saving.
● 4. Low energy consumption, no deformation, no pollution.
● 1. When the ultrasonic wave ACTS on the contact surface of the material, it will produce tens of thousands of high-frequency vibrations per second.
● 2. High-frequency vibration transmits ultrasonic energy to the welding area through the upper welding piece, and the acoustic resistance at the interface of the two welding pieces is high, so local high temperature is generated.
● 3. The thermal conductivity of masк material is poor, the heat is concentrated in the welding area, the contact surface of the two materials melts quickly, and after a certain pressure, it can be fused into one.
● 4. after the ultrasonic stop action, let the pressure continue for a few seconds, make it solidify, forming a strong molecular chain to achieve welding.
● A. Check whether there are foreign objects entering or objects interfering in the machine surface, guide rail surface and chain;
● B. First ventilate, then switch on the power supply, check whether there is leakage of electricity or air;
● C. Whether there is object interference outside the device;
● D. Check whether the air shear is open to avoid the collision of the lug cylinder;
● E. Check the ear band for materials;
