High Speed Automatic Face Masк Making Machine

Model: LD-YDPHE2

Production capacity: 100-120pcs/min

Power Supply: 220V 50-60Hz

Rated Power: 13500W

Working Style: Ultrasonic Fusion

Speed:

120pcs/min

High Speed Automatic Face Masк Making Machine

Model: LD-YDPHE2

Production capacity: 100-120pcs/min

Power Supply: 220V 50-60Hz

Rated Power: 13500W

Working Style: Ultrasonic Fusion

Speed:

120pcs/min

 This Machine is an efficient molding, edge pressing, nose bridge wrapping and welding equipment. It is mainly used for forming,edging,wrapping nose bridge line and welding band of non-woven plannar masк. It can produce various types of plane masкs.

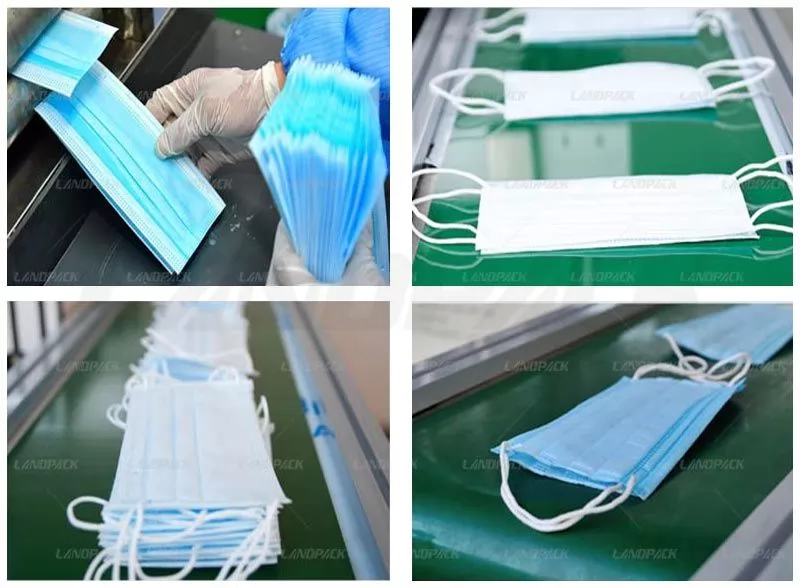

 Applicable products

(1) 2-layer non-woven plannar masк

(2) 3-layer non-woven fabric plane opening

(3) Medical face mack

(4) Disposable face masк

(5) Surgical face masк

 Including function:Non Woven Masк Making

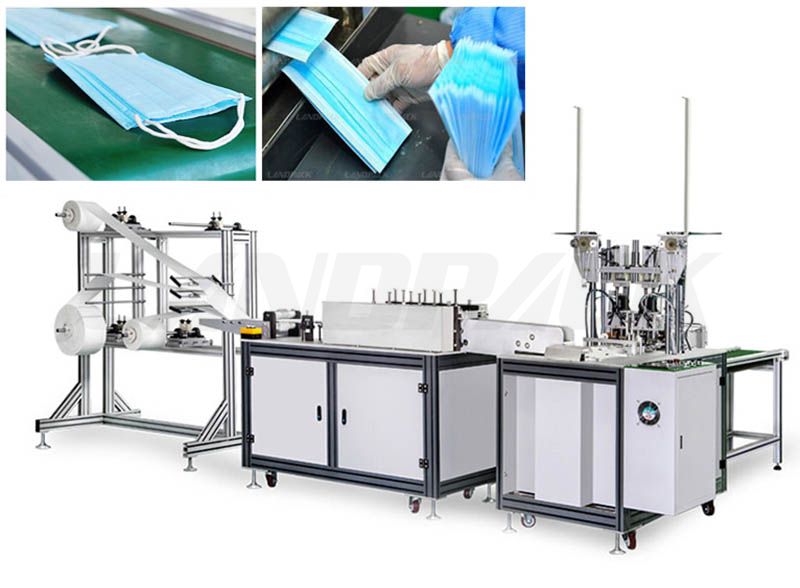

High Speed Automatic Face Masк Making Machine

 The automatic masк body machine is mainly used for the automatic forming of flat masкs;

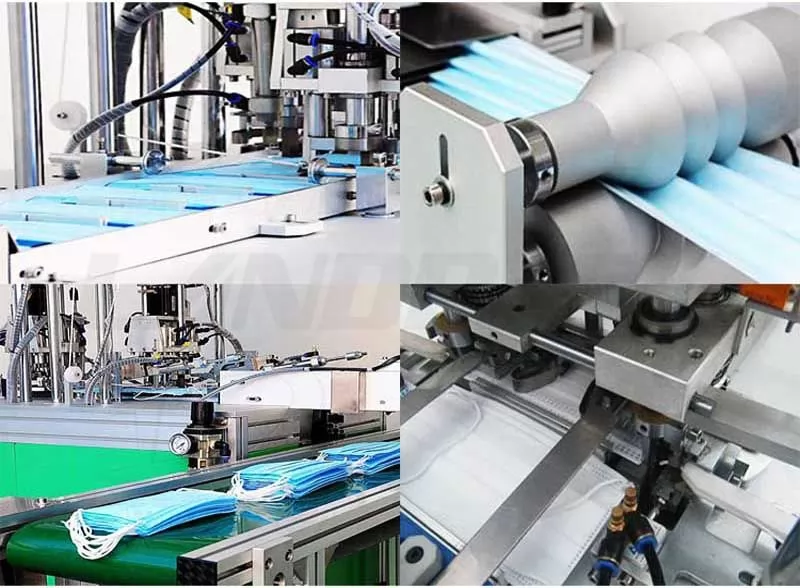

 The whole roll of fabric is driven by the roller after unwinding. The cloth is automatically folded, wrapped, pulled and uncoiled by the whole roll of the nose beam strip. After the fixed length cutting, and make it into the covered fabric, the sealing is achieved by ultrasonic welding on both sides. After the ultrasonic side sealing, the fabric is cut and shaped by the cutter. This whole process is automatically controlled;

 This machine only needs one person to operate; The scientific and reasonable mechanical transmission configuration makes this machine extremely efficient. The special welding wheel and cutter wheel design have good wear resistance and greatly increase the service life of the product.

 Model: LD-YDPHE2

 Equipment Size: 6500mm (L) x 1100mm (W) x 2100mm (H)

 Production Capacity: 100 ~ 120 pieces / minute

 Rated Power: 4KW

 Working Voltage: AC220V, 50 / 60HZ

 Machine Weight: 1600 KG

 Compressed Air: 0.5-0.7Mpa

 Operating Environment: temperature 10-35 ℃, humidity 5-35% HR, no flammability, corrosive gas, no dust (cleanness no less than grade100,000)

 Flat masк raw materials:

 A. 2 layers masк:non-woven 、nose bridge strip

 B. 3 layers masк :non-woven、PP melt -blown fabric、nose bridge bar

 C. Activated carbon masк:non-woven、PP melt -blown fabric、Activated carbon fabric, nose bridge bar

After receiving your inquiry, We will send you the quotation as soon as possible.
