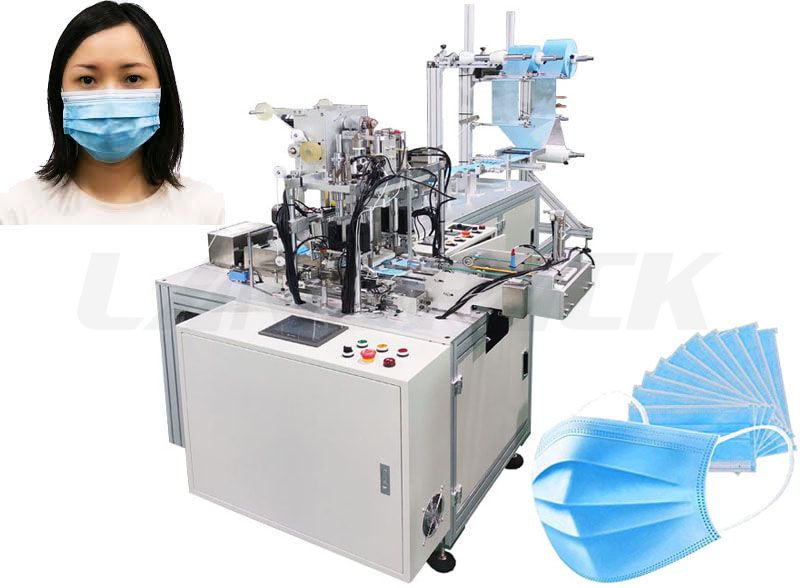

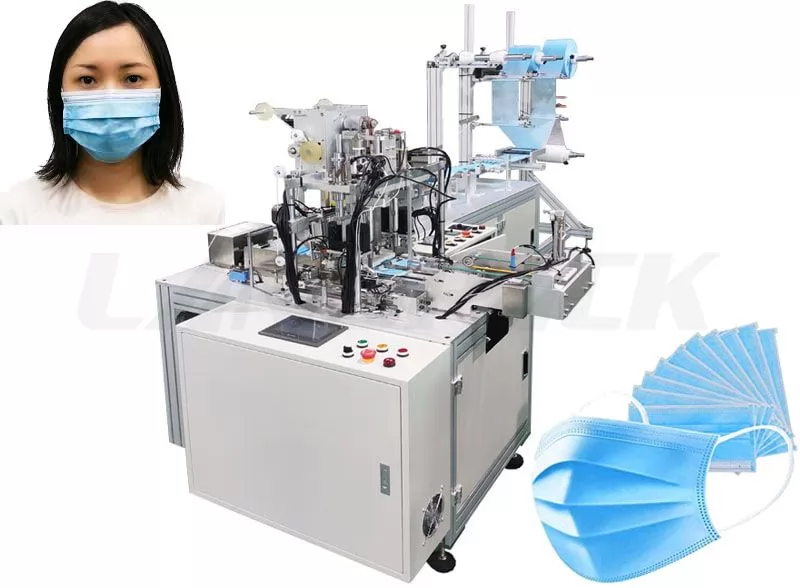

Full Automatic Masк Making Machine PLC Control

Model: LD-YDPHE2C

Production capacity: 90-100pcs/min

Voltage:220V,  Local voltage

Rated Power: 5000W

Materials: Non Woven fabric, melt blown woven

Speed:

100pcs/min

Labors require:

1-2 people

Full Automatic Masк Making Machine PLC Control

Model: LD-YDPHE2C

Production capacity: 90-100pcs/min

Voltage:220V,  Local voltage

Rated Power: 5000W

Materials: Non Woven fabric, melt blown woven

Speed:

100pcs/min

Labors require:

1-2 people

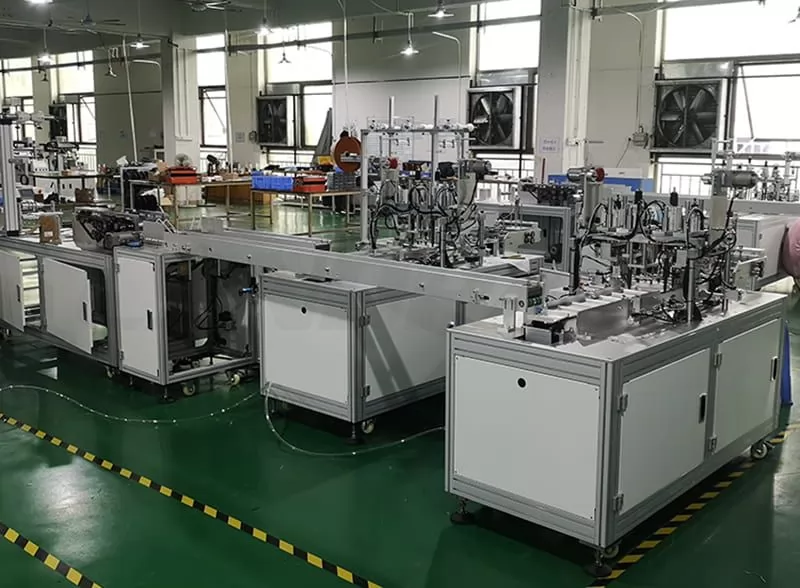

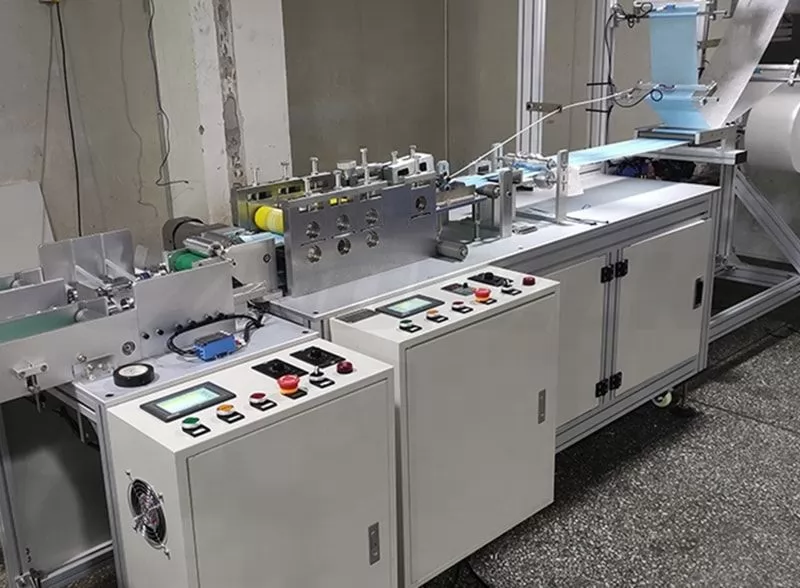

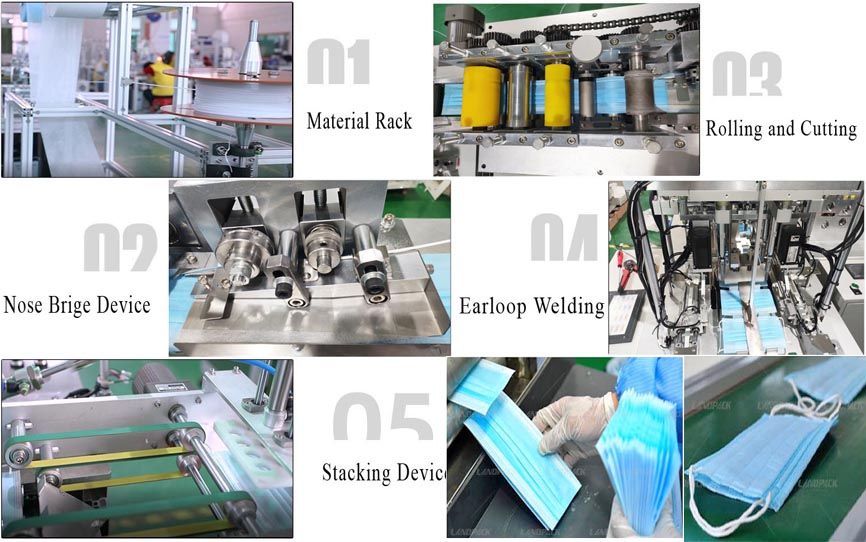

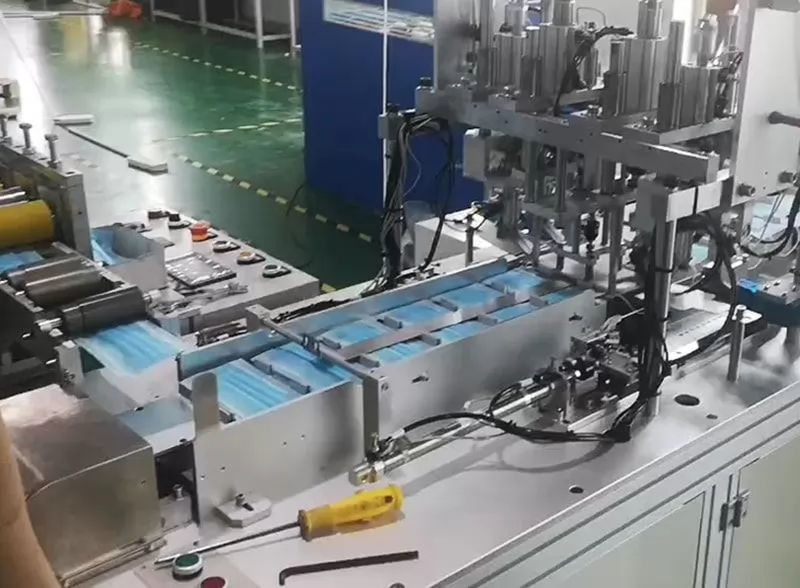

 This production line is a fully automatic one-to-one masк machine, one body machine drives one ear loop welding machine. After the main body machine outputs the masк body, the masк body sheet is conveyed to the masк plate by the conveyor belt, and then the masк piece is conveyed to the ear loop welding machine through the plate.The welding machine then finish the the ear loop welding by ultrasonic And then complete masк come out.


Full Automatic Masк Making Machine PLC Control

 1. High stability, low failure rate, beautiful appearance without rust;

 2. Computer PLC programming control, servo drive, high degree of automation;

 3. Photoelectric detection of raw materials to avoid mistakes and reduce waste.

 Model: LD-YDPHE2C

 Materials: Non Woven fabric, melt blown woven

 Machine: 4500x1400x2000mm

 System: PLC

 Frequency: 50HZ

 Labors require: 1-2 people

 Voltage: 220V, Local voltage

 Weight: 800Kg

 Power: 5kw

 Production type: length ≤ 175mm, width ≤95mm

 Air Pressure: 5-6KG/CM2

 Transportation: By air, by sea, by truck

 Capacity: 90-100pcs/min

 Flat masк raw materials:

 A. 2 layers masк:non-woven 、nose bridge strip

 B. 3 layers masк :non-woven、PP melt -blown fabric、nose bridge bar

 C. Activated carbon masк:non-woven、PP melt -blown fabric、Activated carbon fabric, nose bridge bar
