Masк Making Machine
Home >> Products >> Masк Making Machine

KN 95/ N 95 Face Masк Blank Making Machine

Model: LD-NDP

PP nonwovens size: 260mm width * 40g; 600mm reel length

Cotton filter size: 260mm width * 25g; 600mm reel length

Melt-brown fabric size: 260mm width * 25g; 600mm reel length

Nonwoven size: 260mm width * 40g; 600mm reel length

Ear loop size: 3-5mm width

Nose bridge: Dual-core metal strip 5mm

Speed:

50-80pcs/min

Air Pressure:

0.6-0.8MPA

KN 95/ N 95 Face Masк Blank Making Machine

Model: LD-NDP

PP nonwovens size: 260mm width * 40g; 600mm reel length

Cotton filter size: 260mm width * 25g; 600mm reel length

Melt-brown fabric size: 260mm width * 25g; 600mm reel length

Nonwoven size: 260mm width * 40g; 600mm reel length

Ear loop size: 3-5mm width

Nose bridge: Dual-core metal strip 5mm

Speed:

50-80pcs/min

Air Pressure:

0.6-0.8MPA

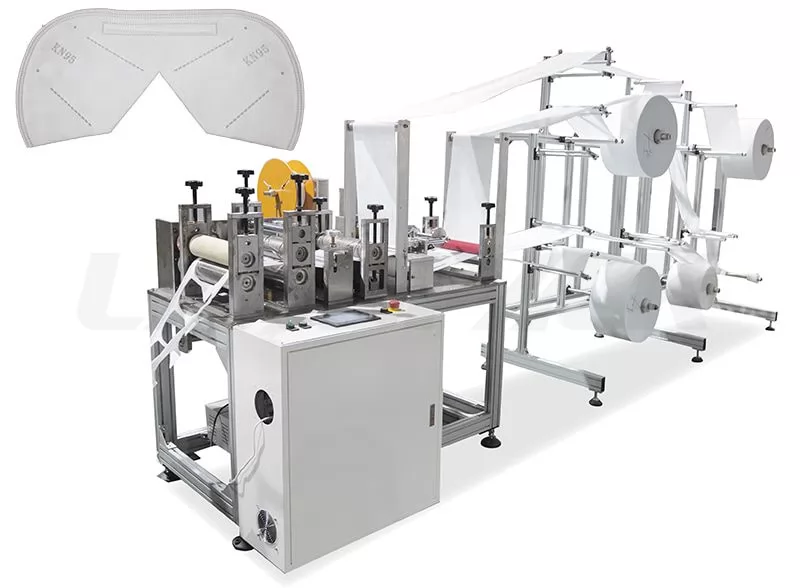

 This machine is mainly used for the automatic forming of face masкs.

 The entire roll of fabric is driven by rollers after unwinding.

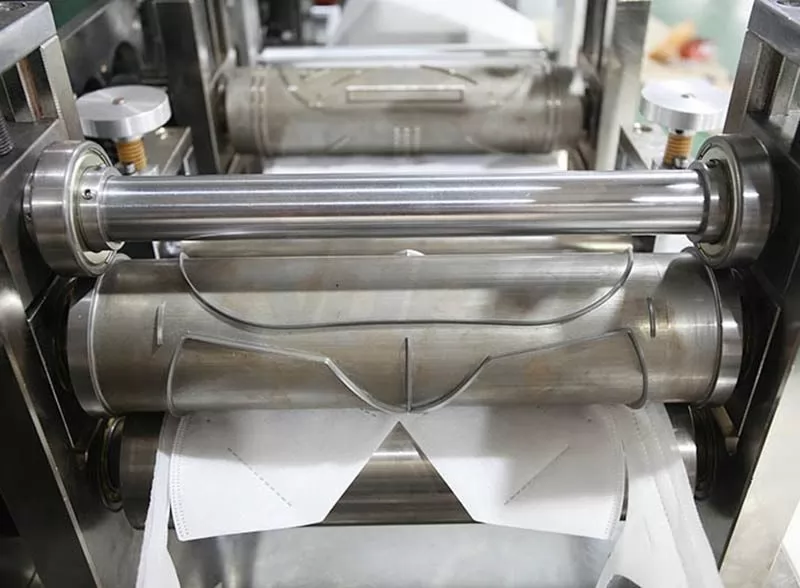

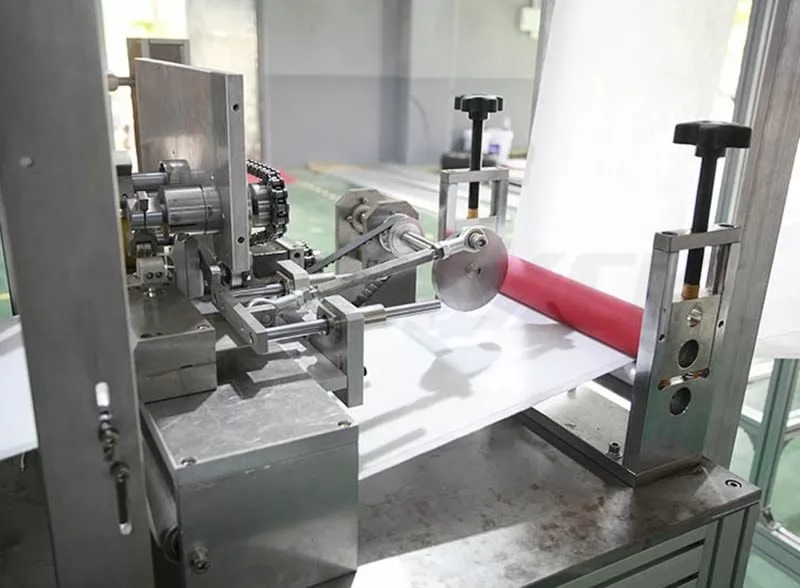

The fabric is automatic bending, hemming, the nose strip is cut automatic and then passed through the ultrasonic sealing fabric. The masк fabric with nose strip sealing parts will be cut and formed by a cutter. The whole process is automatically controlled. Only one person is required to operate this machine.

 The scientific and reasonable mechanical transmission configuration makes this machine extremely efficient. The special welding wheel and cutter wheel design have good abrasion resistance and greatly increase the service life of the product.

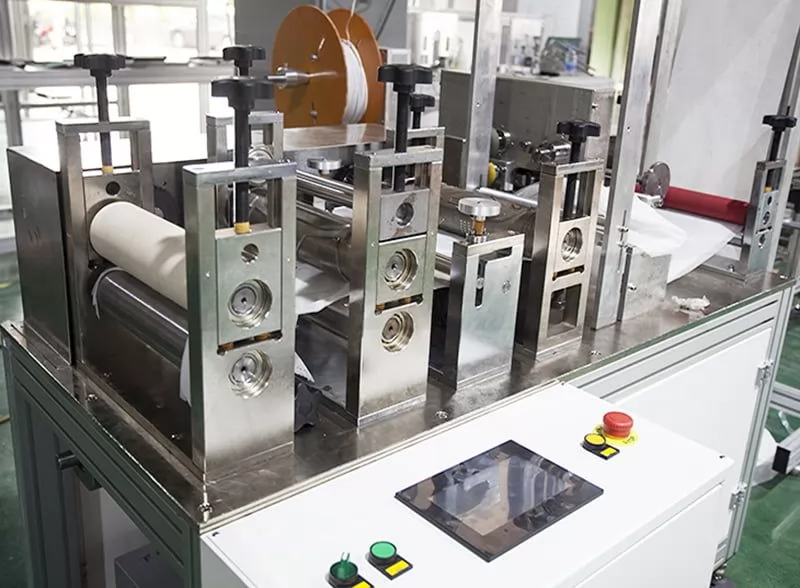

 Machine PLC control

 The production capacity reaches 50-80 tablets per minute

 The folding position can be adjusted, and the fold shape can be changed the guide device

 The machine structure is all aluminum alloy

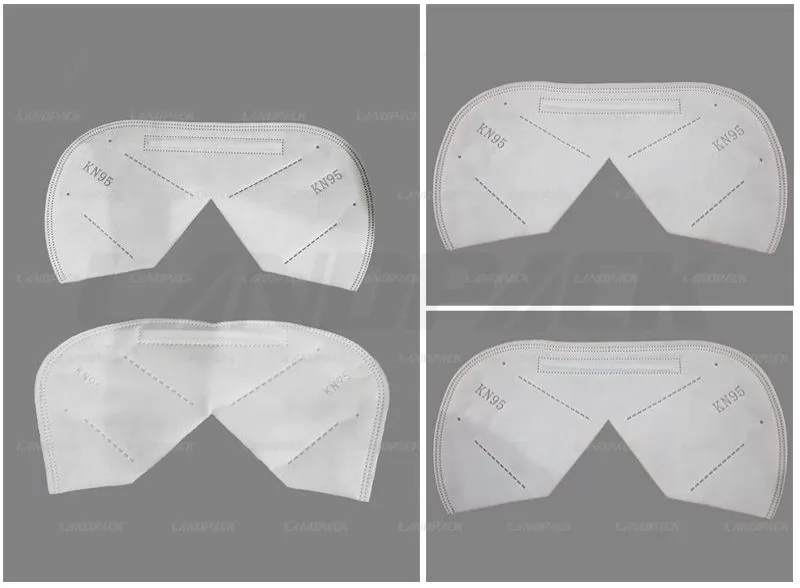

 Can produce3~ 5 layers of non-woven Blank masк

 Automatic function of nonwoven feeding, nose bridge inserting, pattern welding, ear loop welding, masк fabric forming & folding and masк shape cutting.

 Adopting advanced brand components in pneumatic parts and electric parts, which ensure machine performance.

 Masк shape can be customized per client's sample.

 Simple structure in linear type ,easy in installation and maintainance.

 Machine stable performance and constant operation is available with over 99% qualified masк output.

 Model: LD-NDP

 PP nonwovens size: 260mm width * 40g; 600mm reel length

 Cotton filter size: 260mm width * 25g; 600mm reel length

 Melt-brown fabric size: 260mm width * 25g; 600mm reel length

 Nonwoven size: 260mm width * 40g; 600mm reel length

 Ear loop size: 3-5mm width

 Nose bridge: Dual-core metal strip 5mm

 Nose bridge: Dual-core metal strip 5mm

 Power supply: 220V 50/60Hz, 8.5KW

 Air pressure: 0.6-0.8 MPA

  Provide 24-hour service hotline.

  Reply and find out solution within the shortest time according to customer's requirement.

  Provide on call service to help customer solve problems.

  Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.

  Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.

  Provide one year guaranty and lifetime maintenance.
