Model: LD-YB160
Power: 3.5KW
Turntable diameter: 590mm
Welding pressure accuracy: ±0.05mm
Power supply: single-phase 220V/50HZ
25 pcs/min
six stations
Model: LD-YB160
Power: 3.5KW
Turntable diameter: 590mm
Welding pressure accuracy: ±0.05mm
Power supply: single-phase 220V/50HZ
25 pcs/min
six stations
● Application:

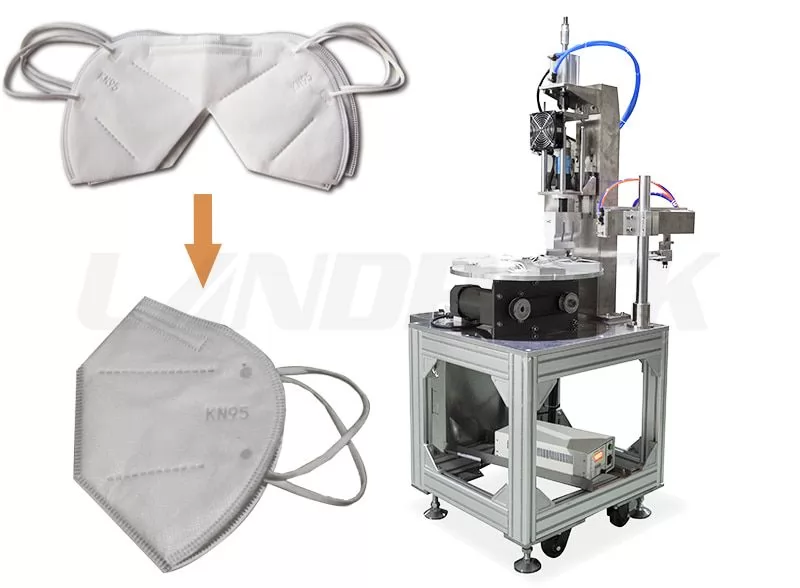

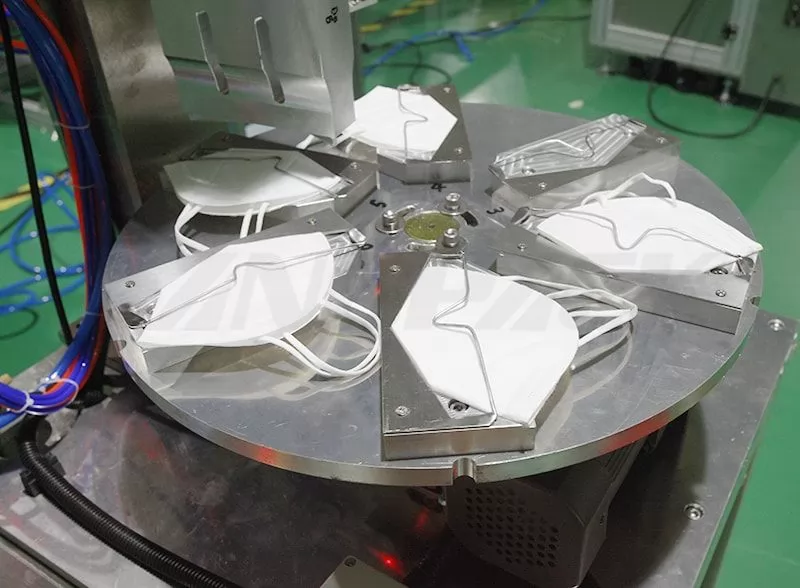

● N 95 masк pressing machine is suitable for pressing and sealing of N 95 masкs and KN 95 masкs. We can use this machine to press the common N 95 masкs on the market. The machine adopts 6-station rotation for pressing.
● 1. Reduce manual workload and increase edge banding output. Workers only need to be responsible for putting on masкs. The equipment will automatically weld and take out finished masкs, thereby increasing output.
● 2. Use ultrasonic to weld, frequency 20KHZ, high power 2000W, welding time can be adjusted, welding time is short (high productivity), welding is firm, not easy to tear.
● 3. Masк welding edge/sealing/holding size: KN95, N95 standard adult masкs, because each company's masк size is inconsistent, customers can customize it or go to our company to customize the mold for replacement.
● Model: LD-YB160
● Turntable station: six stations
● Power: 3.5KW
● Turntable diameter: 590mm
● Welding pressure accuracy: ±0.05mm
● Speed: 15-25 pieces/min
● Power supply: single-phase 220V/50HZ
● Weight: 75KG
● Maximum welding area: 60mm*190mm
● Working cycle: about 2.5S-3S
● Dimensions: L830*W500*H1730

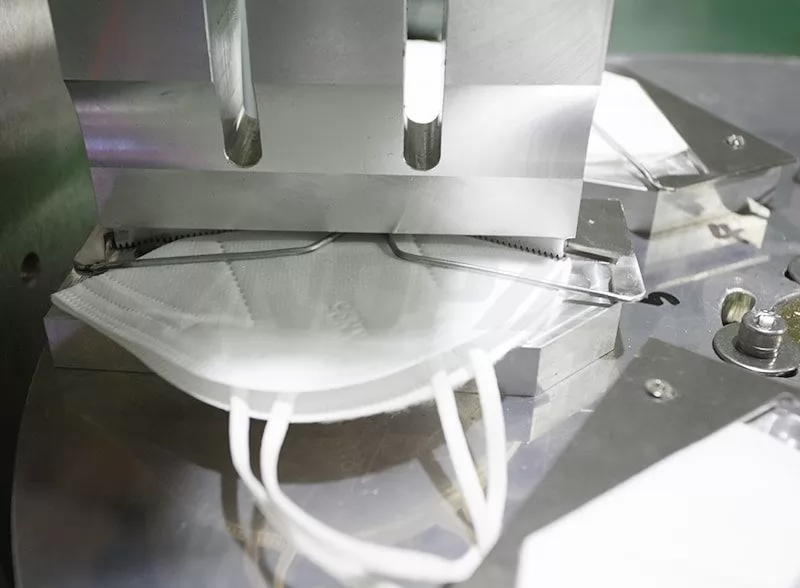

● N95 masк edge pressing machine is a machine equipment for edge banding and edge pressing of N 95 and KN 95 masкs. The machine adopts 6-station rotation for edge pressing operation and ultrasonic edge banding. The working process of the machine is: the operator needs to manually put the N 95 masкs one by one on the mold of the rotating station, and then seal the edge by ultrasonic pressure, and then pinch the finished product through the manipulator to complete the entire edge sealing process .
