Model: LD-ZHJ300
Application:
The End of Line Packaging System is a fully integrated automation solution designed for secondary and tertiary packaging operations. Suitable for snack pouches, rice bags, sugar bags, frozen food packages, seasoning sachets, bakery products, drink mixes, instant beverage powders, and pouch-packed beverage products.
Max.120 cycle/min
Model: LD-ZHJ300
Application:
The End of Line Packaging System is a fully integrated automation solution designed for secondary and tertiary packaging operations. Suitable for snack pouches, rice bags, sugar bags, frozen food packages, seasoning sachets, bakery products, drink mixes, instant beverage powders, and pouch-packed beverage products.
Max.120 cycle/min
Application:
The End of Line Packaging System is a fully integrated automation solution designed for secondary and tertiary packaging operations. Suitable for snack pouches, rice bags, sugar bags, frozen food packages, seasoning sachets, bakery products, drink mixes, instant beverage powders, and pouch-packed beverage products.
Package Type:
Suitable for stand-up pouches, pillow bags, quad seal bags, gusset bags, zipper pouches, sachets, cartons, and shipping cases. Finished cartons are automatically palletized according to predefined stacking patterns for transportation and warehouse storage.

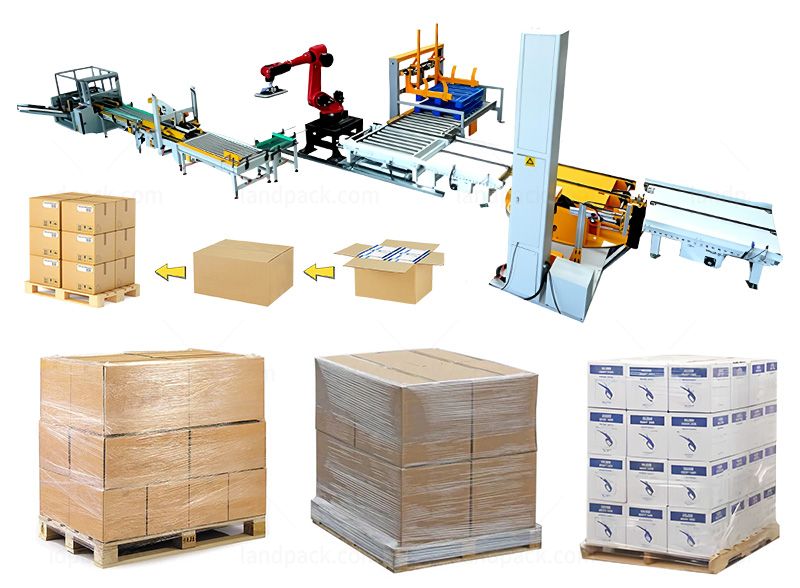

● 1. Complete end-of-line solution integrates carton erecting, carton sealing, corner sealing and robotic palletizing into one automated packaging system.

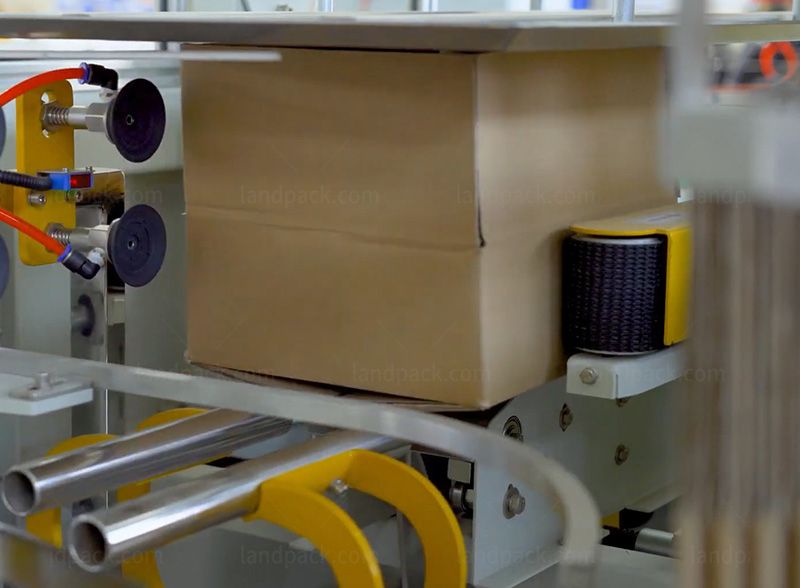

● 2. Automatic carton erector achieves speeds up to 18 cartons/min, completing carton forming, bottom folding and bottom sealing automatically.

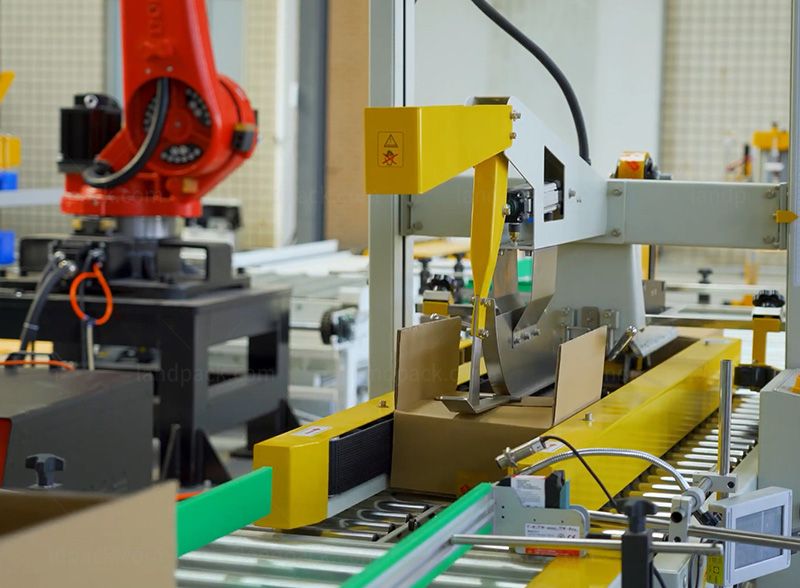

● 3. Automatic folding carton sealer closes and seals carton tops and bottoms at speeds up to 20m/min for reliable package protection.
● 4. Corner sealing machine reinforces carton edges and corners, improving carton strength and transportation safety.

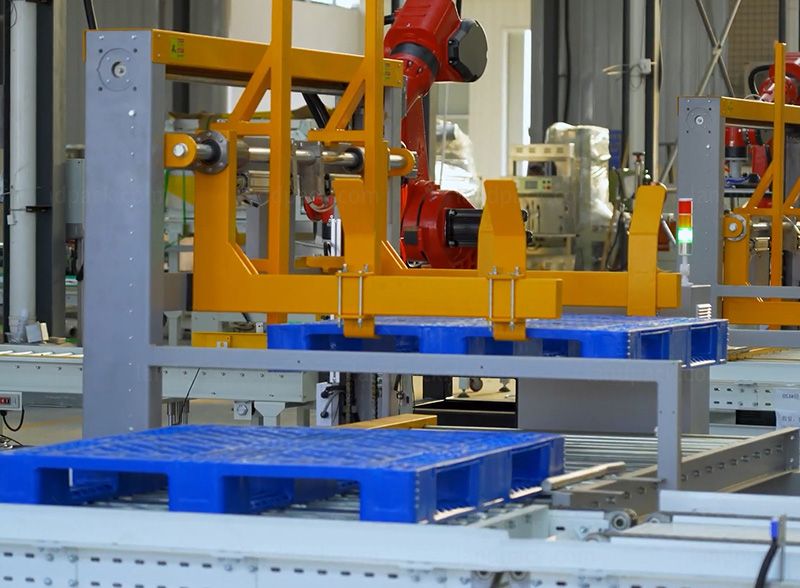

● 5. Robotic palletizer handles payloads up to 30kg with palletizing speeds of 8-12 cartons/min for efficient pallet building.
● 6. Siemens PLC, AirTAC pneumatic components and intelligent HMI ensure stable operation and easy production management.
● 7. Photoelectric sensors and automatic alarm systems enable unattended operation with enhanced packaging reliability.
● 8. Suitable for food, beverage, e-commerce, logistics, daily chemical and industrial packaging applications, reducing labor costs and improving productivity.
| Carton erector | |
Carton opening speed | 10-12 cartons/min |
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) |
Power supply | 220V, 50/60Hz, 1 Phase |
Power | 2400W |
Adhesive tape width | 48/60/75mm |
Carton storage quantity | 80-100pcs(800-1000mm) |
Air consumption | 450NL/min |
Air compressing | 6kg/cm³ |
Discharge table height | 600+30 mm |
Machine size | L2100*W2100*H1450mm |
Machine weight | 450Kg |
| Carton Box Case Sealer | |
Voltage | 220V/380V, 50HZ/60HZ |
Table height | 600-750mm |
Tape | W: 48-75mm |
Speed | 480*600 cartons/h |
Carton size | L: 320-500*W: 180-500*H: 180-500mm |
Machine weight | 110kg+350kg |
Machine size | 1910*1150*1400 |
| Strapping Machine | |
Table height | 630-750mm(adjustable) |
Width of pp strap | 9-15mm |
Thickness of pp strap | 0.55-1.2mm |
Voltage | Voltage 220V-415V, 1PH/3PH |
Power | 0.75KW, 50/60HZ |
Machine size | L1400*W630*H1430mm |
Packing size | L1500*730*H1530mm |
Machine weight | 200kg |
Workflow:

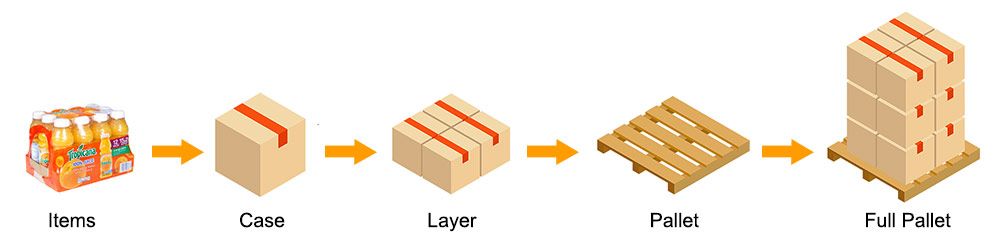

1.Finished Pouch Collection → Carton Erecting → Product Loading → Carton Sealing → Carton Conveying → Robotic Palletizing → Finished Pallet Output
