Model: LD-ZHJ300
Application:

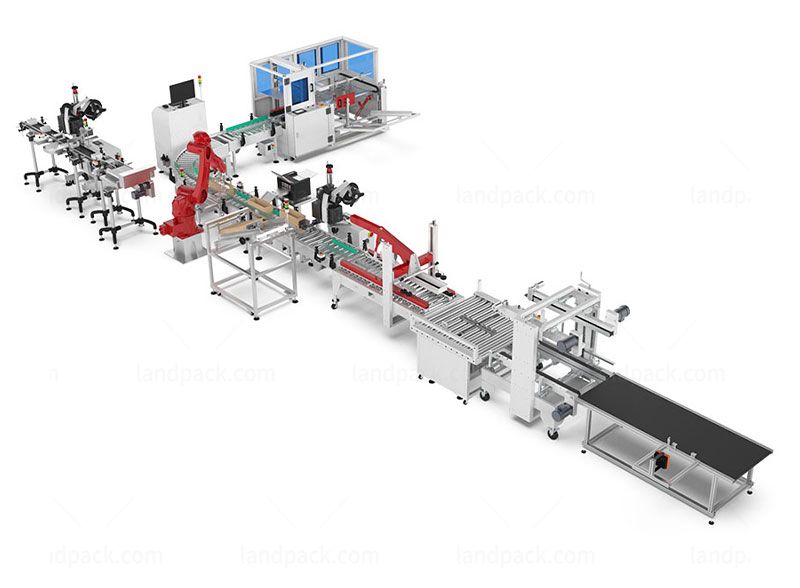

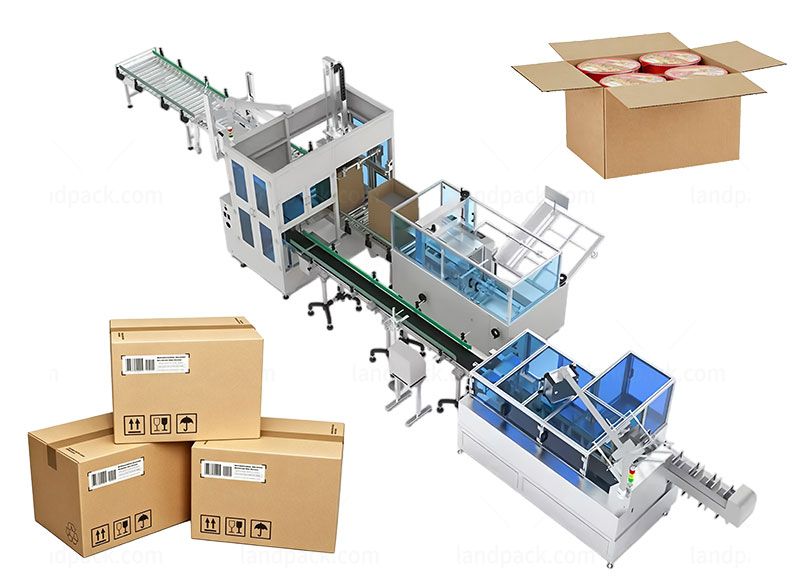

The Bottle Jar Case Packing System is a fully automatic end-of-line packaging solution designed for bottles, jars, cans, buckets, and rigid containers. Suitable for sauce bottles, honey jars, jam jars, cooking oil bottles, seasoning containers, water bottles, juice bottles, milk bottles, energy drink cans, and beverage cans.
Max.120 cycle/min
Model: LD-ZHJ300
Application:
The Bottle Jar Case Packing System is a fully automatic end-of-line packaging solution designed for bottles, jars, cans, buckets, and rigid containers. Suitable for sauce bottles, honey jars, jam jars, cooking oil bottles, seasoning containers, water bottles, juice bottles, milk bottles, energy drink cans, and beverage cans.
Max.120 cycle/min
Application:
The Bottle Jar Case Packing System is a fully automatic end-of-line packaging solution designed for bottles, jars, cans, buckets, and rigid containers. Suitable for sauce bottles, honey jars, jam jars, cooking oil bottles, seasoning containers, water bottles, juice bottles, milk bottles, energy drink cans, and beverage cans.
Package Type:

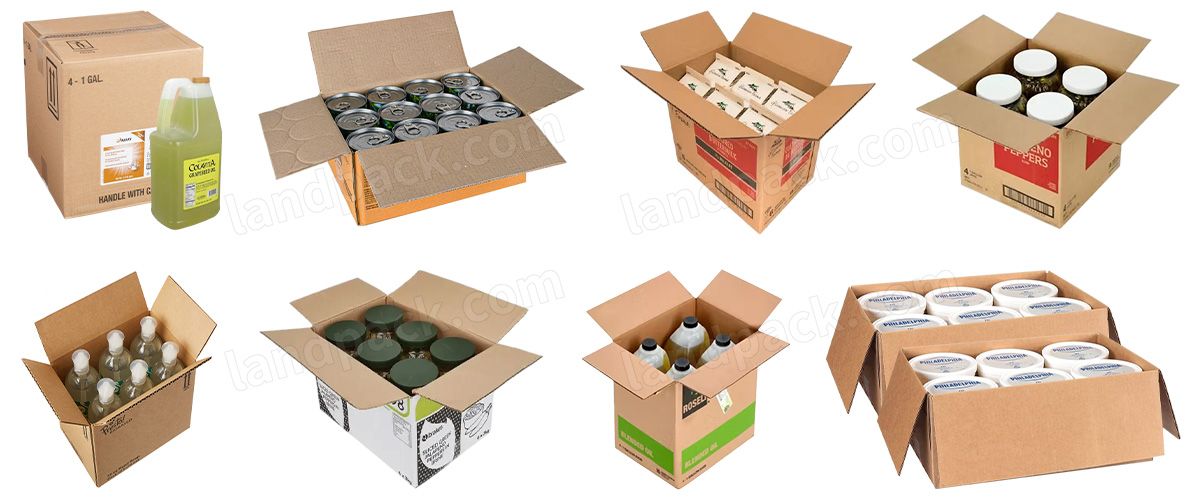

This packing system is designed for secondary carton packaging of rigid containers. It supports plastic bottles, glass bottles, PET bottles, metal cans, aluminum cans, plastic jars, glass jars, pails and buckets. Products can be arranged in various packing configurations such as 2×3, 3×4, 4×6, 5×5 and customized layouts before being automatically loaded into corrugated cartons.
● 1. High-speed automatic case packing system significantly improves end-of-line packaging efficiency and production throughput.
● 2. Advanced servo-driven pick & place technology ensures accurate, stable and reliable product loading into cartons.
● 3. Automatically completes product feeding, grouping, case loading and carton transfer with minimal manual intervention.
● 4. Gentle handling design protects bottles, jars, cans and containers from damage, scratches and deformation.
● 5. Supports multiple packing patterns such as **2×3, 3×4, 4×6** and customized carton configurations.
● 6. Compatible with plastic bottles, glass bottles, jars, cans, buckets and various container shapes.
● 7. PLC touch screen control system enables real-time monitoring, simple operation and fast product changeovers.
● 8. Heavy-duty industrial construction provides stable long-term operation, low maintenance requirements and reduced labor costs.
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Workflow:

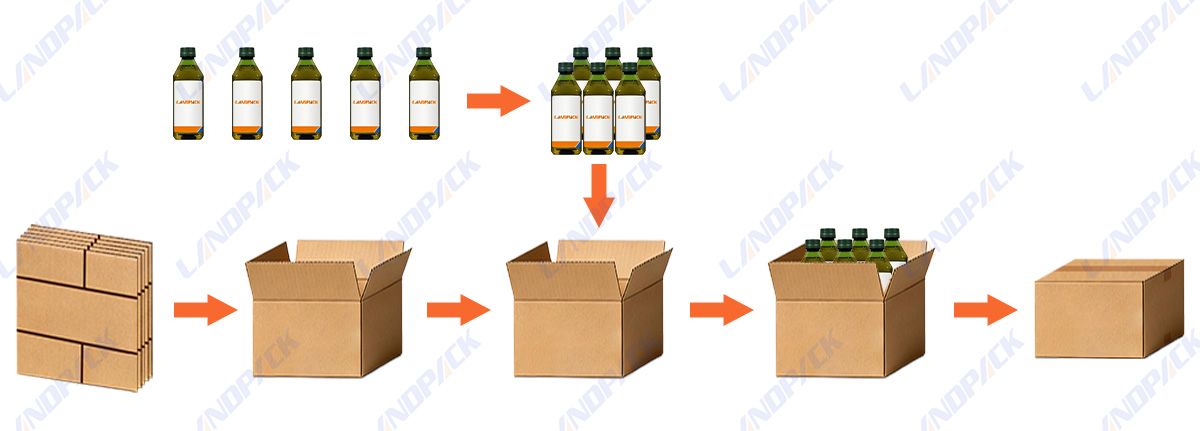

1.Product Infeed → Product Grouping → Carton Erecting → Automatic Case Loading → Carton Transfer → Carton Sealing → Finished Carton Output
