Model: LD-ZHJ300
Application:
The Case Packaging System is an integrated end-of-line packaging solution designed for snack cartons, frozen food cartons, seasoning products, bakery products, packaged foods, water cartons, dairy products, juice cartons, and beverage multipacks, detergents, personal care products, tissue products, and household goods.
Max.120 cycle/min
Model: LD-ZHJ300
Application:
The Case Packaging System is an integrated end-of-line packaging solution designed for snack cartons, frozen food cartons, seasoning products, bakery products, packaged foods, water cartons, dairy products, juice cartons, and beverage multipacks, detergents, personal care products, tissue products, and household goods.
Max.120 cycle/min
Application:
The Case Packaging System is an integrated end-of-line packaging solution designed for snack cartons, frozen food cartons, seasoning products, bakery products, packaged foods, water cartons, dairy products, juice cartons, and beverage multipacks, detergents, personal care products, tissue products, and household goods.
Package Type:
The Case Packaging System is suitable for corrugated cartons, RSC cartons, shipping cases, distribution cartons and export cartons. The system automatically forms, seals and straps cartons for improved stacking strength and transportation safety.
● 1. High-speed automatic carton erecting, sealing and strapping with synchronized operation for maximum packaging efficiency.
● 2. Carton forming success rate reaches ≥99.9%, ensuring stable and reliable production.
● 3. One-button start and user-friendly controls simplify operation without requiring specialized training.
● 4. Quick carton size adjustment through manual knobs and lever-type mechanisms reduces changeover time.
● 5. Full servo-driven lifting and handling system provides precise movement and long-term durability.
● 6. Imported pneumatic components ensure smooth, stable and low-noise carton sealing performance.
● 7. Integrated safety system includes fault alarms, automatic shutdown and emergency stop protection.
● 8. Compact footprint and flexible design make it suitable for e-commerce, logistics, food, electronics and industrial packaging applications.
| Carton erector | |
Carton opening speed | 10-12 cartons/min |
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) |
Power supply | 220V, 50/60Hz, 1 Phase |
Power | 2400W |
Adhesive tape width | 48/60/75mm |
Carton storage quantity | 80-100pcs(800-1000mm) |
Air consumption | 450NL/min |
Air compressing | 6kg/cm³ |
Discharge table height | 600+30 mm |
Machine size | L2100*W2100*H1450mm |
Machine weight | 450Kg |
| Carton Box Case Sealer | |
Voltage | 220V/380V, 50HZ/60HZ |
Table height | 600-750mm |
Tape | W: 48-75mm |
Speed | 480*600 cartons/h |
Carton size | L: 320-500*W: 180-500*H: 180-500mm |
Machine weight | 110kg+350kg |
Machine size | 1910*1150*1400 |
| Strapping Machine | |
Table height | 630-750mm(adjustable) |
Width of pp strap | 9-15mm |
Thickness of pp strap | 0.55-1.2mm |
Voltage | Voltage 220V-415V, 1PH/3PH |
Power | 0.75KW, 50/60HZ |
Machine size | L1400*W630*H1430mm |
Packing size | L1500*730*H1530mm |
Machine weight | 200kg |

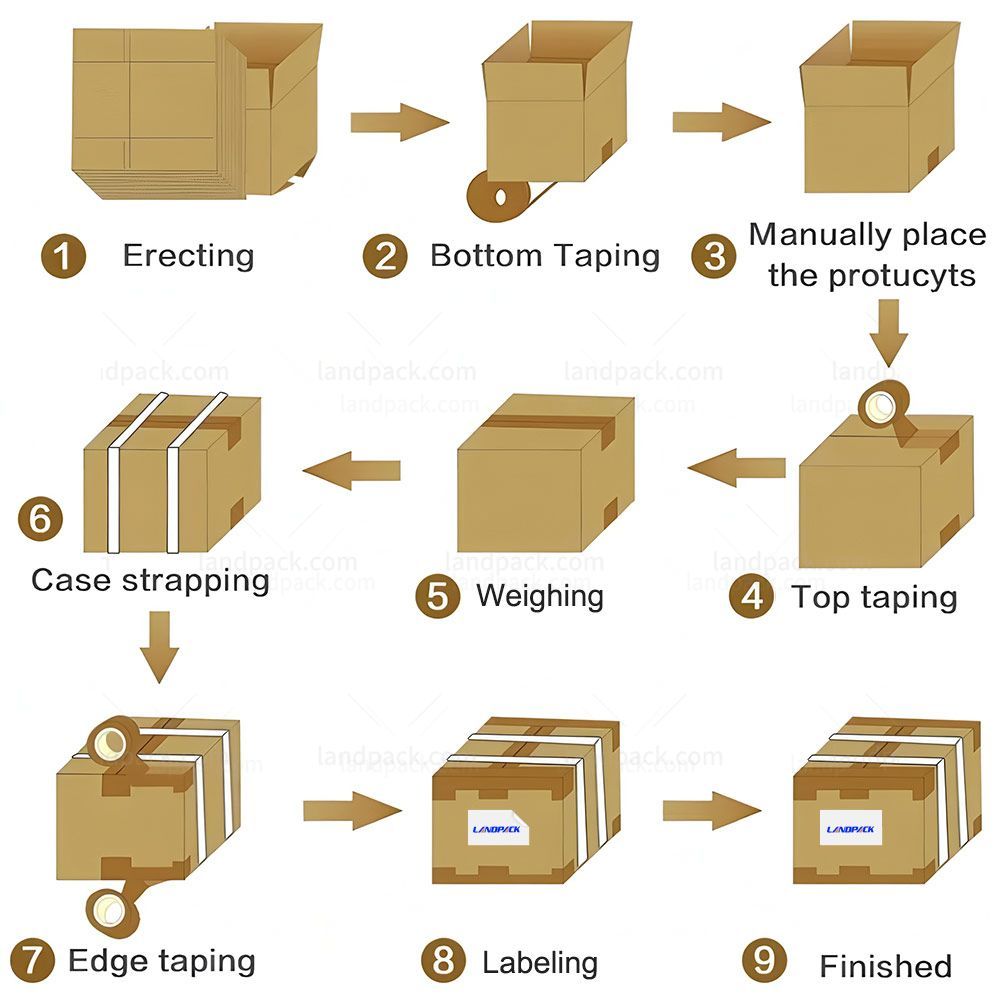

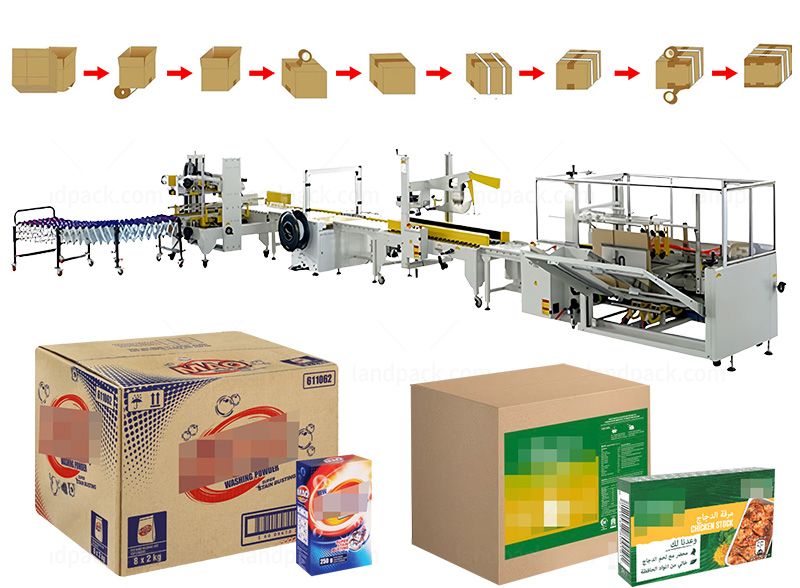

Workflow:
1.Carton Erecting → Bottom Sealing → Product Loading → Top & Bottom Carton Sealing → Automatic Strapping → Finished Carton Output
