Model: LD-LD-LLP550
Application:

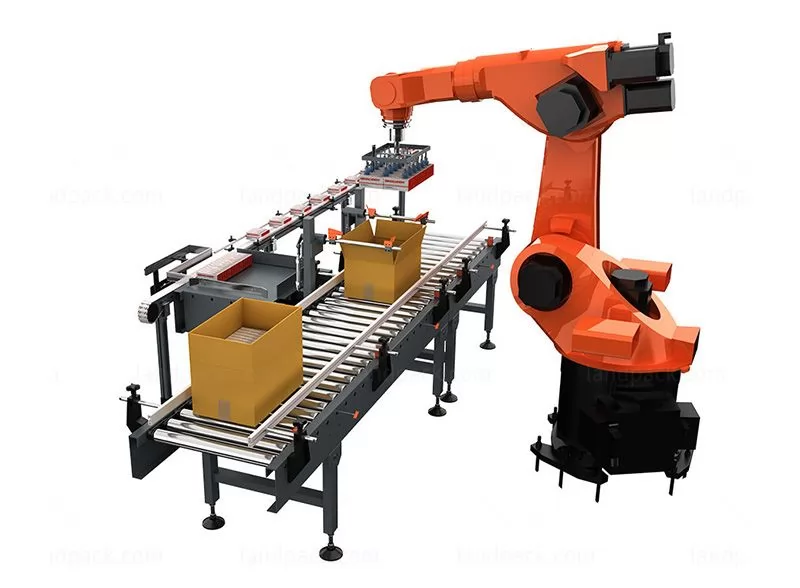

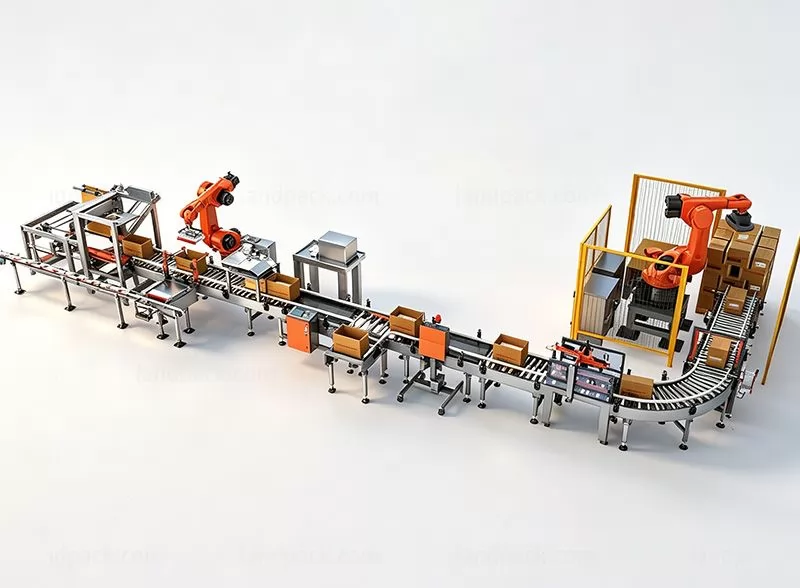

Carton Case Packing System is a complete end-of-line packaging solution designed to automate carton handling, case packing, carton sealing and pallet stacking operations.Suitable for snack cartons, pet food cartons, frozen food cartons, seasoning products and beverage cases.
Max.40 cycle/min
Model: LD-LD-LLP550
Application:
Carton Case Packing System is a complete end-of-line packaging solution designed to automate carton handling, case packing, carton sealing and pallet stacking operations.Suitable for snack cartons, pet food cartons, frozen food cartons, seasoning products and beverage cases.
Max.40 cycle/min
Application:
Carton Case Packing System is a complete end-of-line packaging solution designed to automate carton handling, case packing, carton sealing and pallet stacking operations.Suitable for snack cartons, pet food cartons, frozen food cartons, seasoning products and beverage cases.
Package Type:
Suitable for RSC cartons, corrugated shipping cases, wrap-around cartons, display cartons, tray cartons, multi-layer case packing, bundle cartons and palletized carton loads.
● 1. Automatic case packing, carton sealing and robotic palletizing integrated into one end-of-line solution.
● 2. Collaborative robot technology enables safe operation alongside workers without complex safety fencing.
● 3. Intelligent servo control system ensures accurate carton handling and stable pallet stacking.
● 4. Flexible palletizing patterns support various carton sizes, layer arrangements and pallet specifications.
● 5. User-friendly PLC touch screen allows quick setup, recipe storage and production monitoring.
● 6. Fast changeover design adapts easily to different products and packaging formats.
● 7. 24/7 continuous operation improves production efficiency and reduces labor dependency.
● 8. Reduces manual lifting and repetitive handling, improving workplace safety and operational consistency.
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||

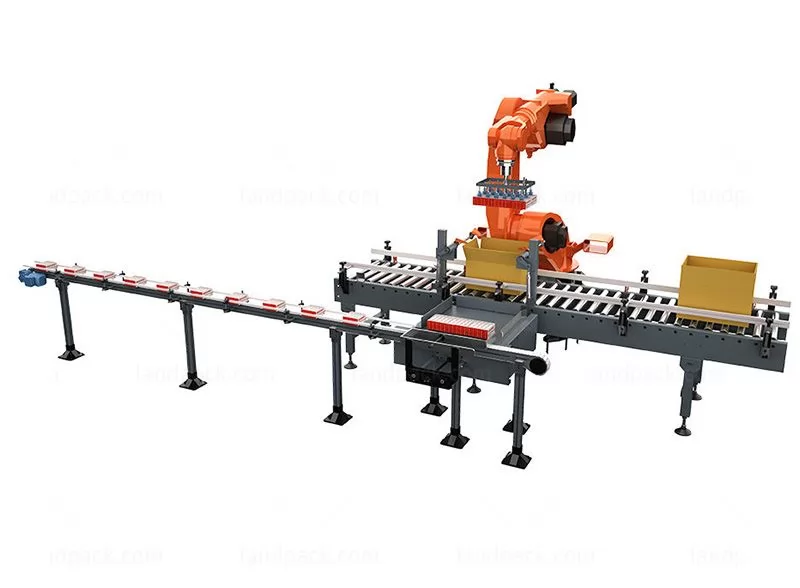

| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Automatic Robot palletizer | |||
| Model | LD60-PL | LD120-PL | LD1800-PL |
| Arm Reach | 2000mm | 2400mm | 3060mm |
| Maximum Load | 60kg | 120kg | 180kg |
| Weight | 500kg | 1050kg | 1120kg |
| Pallet Dimensions | 1200*1200 | 1200*1200 | 1400*1400 |
| Palletizing Speed | 8 cycle/min | 8 cycle/min | 8 cycle/min |
| Stretch Wrapping | |
| Pallet Size | L1200 × W1200 mm |
| Turntable Speed | Variable speed with soft start & stop function |
| Wrapping Height | 1800 mm |
| Loading Weight | MP 303B: 2000 kg; MP 303A: 1000 kg |
| Pre-stretch Ratio | 150% |
| Turntable Height | 550 mm |
Workflow:

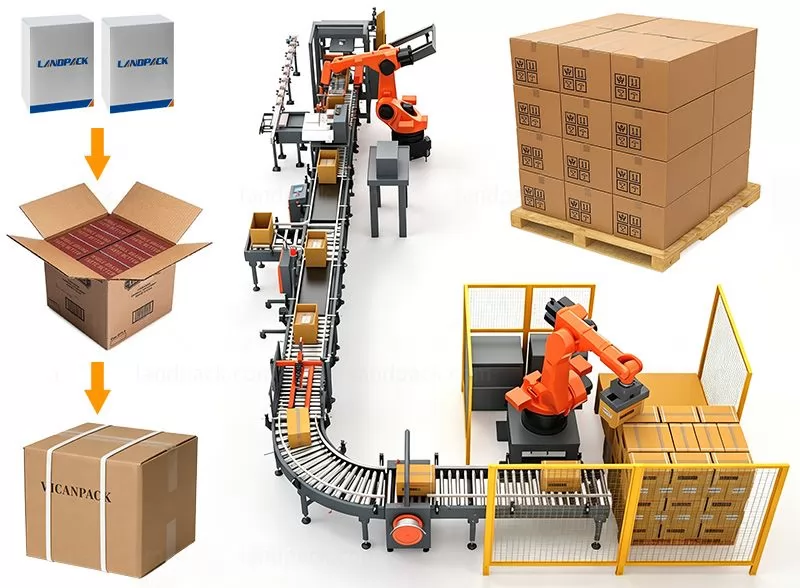

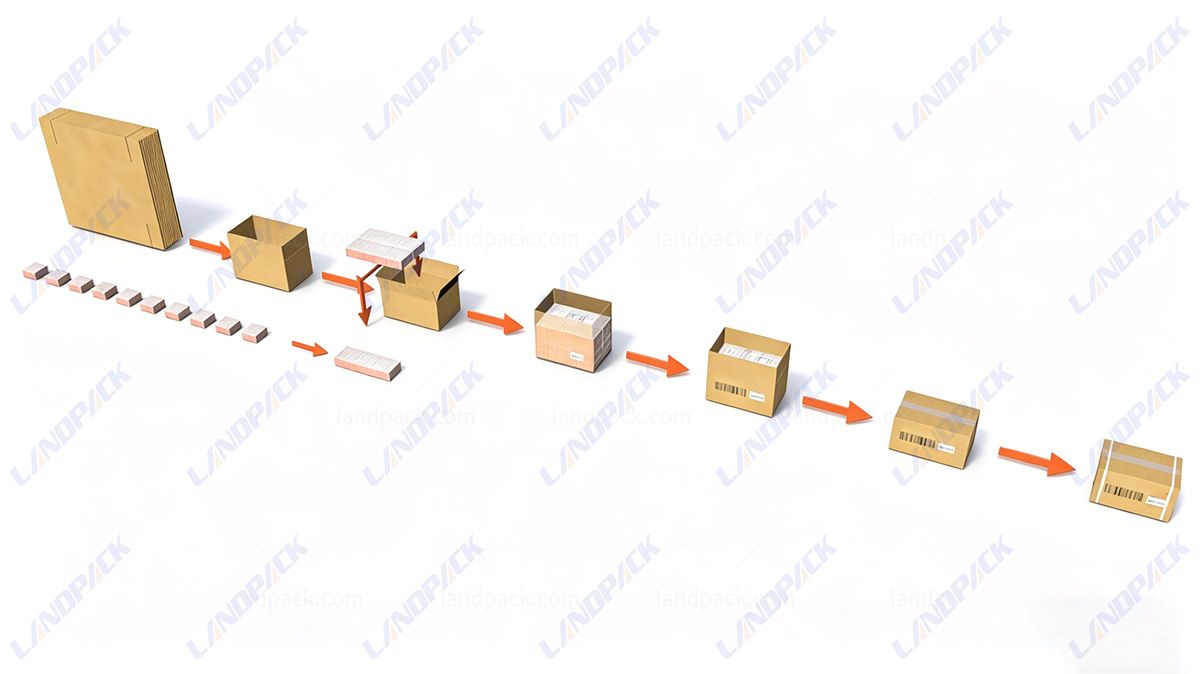

1. Finished Product Infeed → Carton Packing → Carton Sealing → Carton Conveying → Robotic Palletizing → Finished Pallet Output
