Model: LD-B8
Application:
The Packing System is a complete end-of-line packing solution designed for biscuits, snacks, candy, bakery products, instant foods, condiment sachets, Bottles, cans, cartons, juice products and dairy products.
Max.120 cycle/min
Model: LD-B8
Application:
The Packing System is a complete end-of-line packing solution designed for biscuits, snacks, candy, bakery products, instant foods, condiment sachets, Bottles, cans, cartons, juice products and dairy products.
Max.120 cycle/min
Application:
The Packing System is a complete end-of-line packing solution designed for biscuits, snacks, candy, bakery products, instant foods, condiment sachets, Bottles, cans, cartons, juice products and dairy products.
Package Type:
The Packing System is suitable for Product Packaging: Sachets, Pouches, Bottles, Jars, Cans, Stick Packs.Secondary Packaging: Corrugated Cartons, RSC Cases, Shipping Cartons, Display Cartons, Export Cases.Final Logistics Packaging: Palletized Cartons, Stretch Wrapped Pallets.

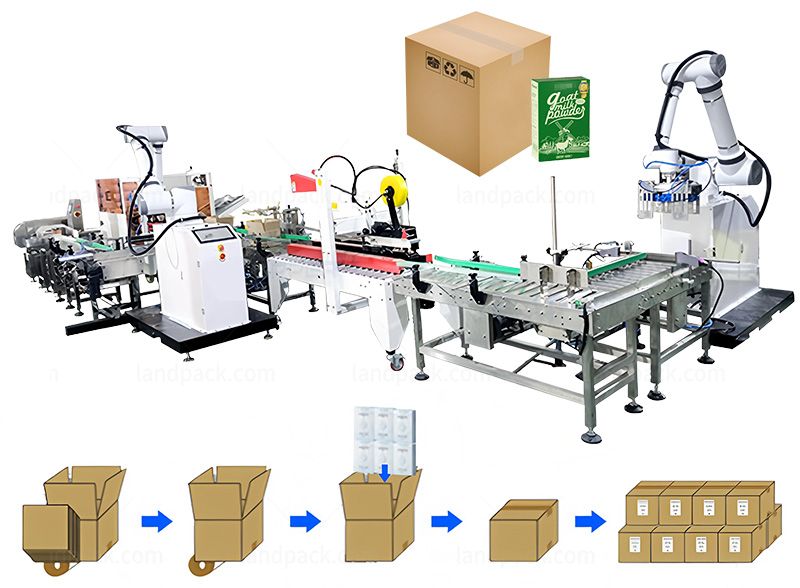

● 1. Fully automatic system integrates carton erecting, box packing, carton sealing and robotic palletizing in one production line.
● 2. Collaborative palletizing robot supports payloads up to 30 kg and provides safe, stable operation with power-off protection.
● 3. Flexible production design allows rapid switching between different products, carton sizes and pallet patterns.
● 4. User-friendly visual programming enables new palletizing recipes to be created in minutes without complex robot coding.
● 5. Automatic carton erector forms and seals cartons with high efficiency before case packing.

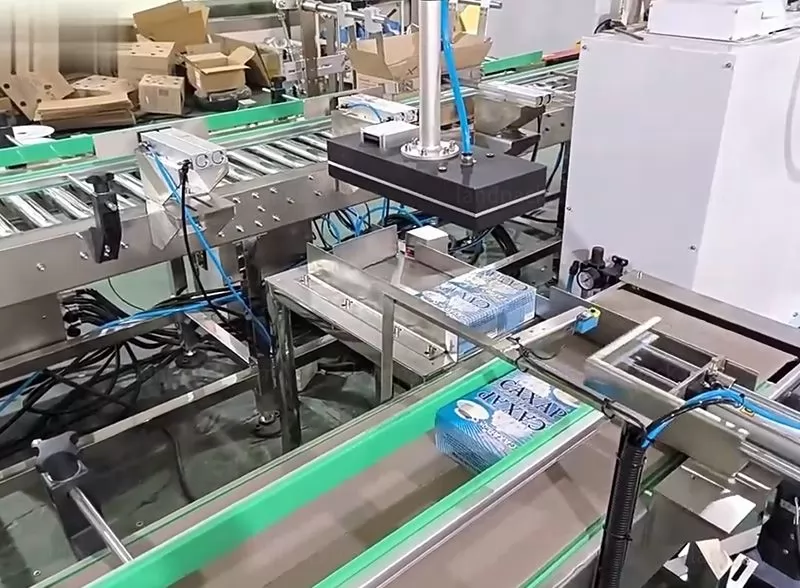

● 6. Intelligent case packing system automatically loads gift boxes or products into shipping cartons with consistent arrangement.
● 7. Robotic palletizer supports multiple pallet sizes, custom grippers, slip sheets and continuous 24/7 operation.
● 8. Optional pallet dispenser automatically feeds empty pallets, reducing manual handling and improving logistics automation.
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||

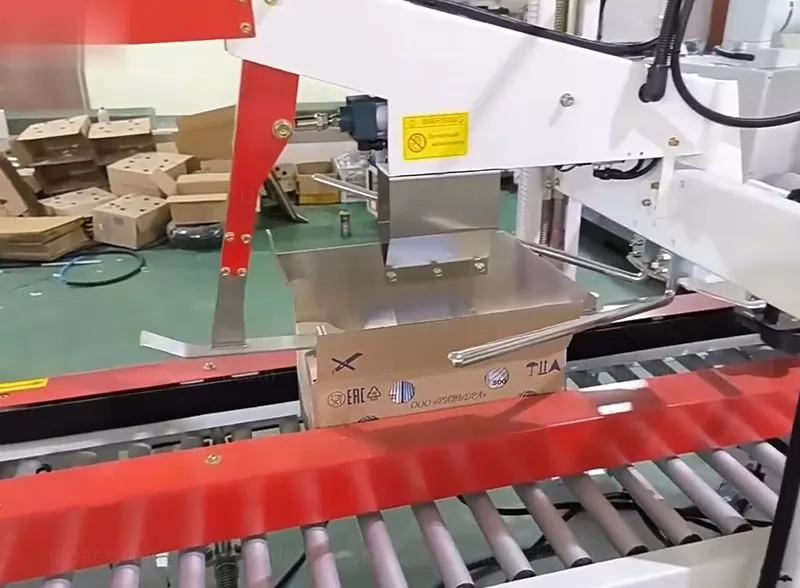

| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Workflow:
1. Product Conveying → Product Sorting → Delta Robot Picking → Product Grouping → Carton Erecting → Automatic Case Packing → Carton Sealing → Robotic Palletizing → Finished Pallet Output
