Model: LD-LD-LLP550
Application:

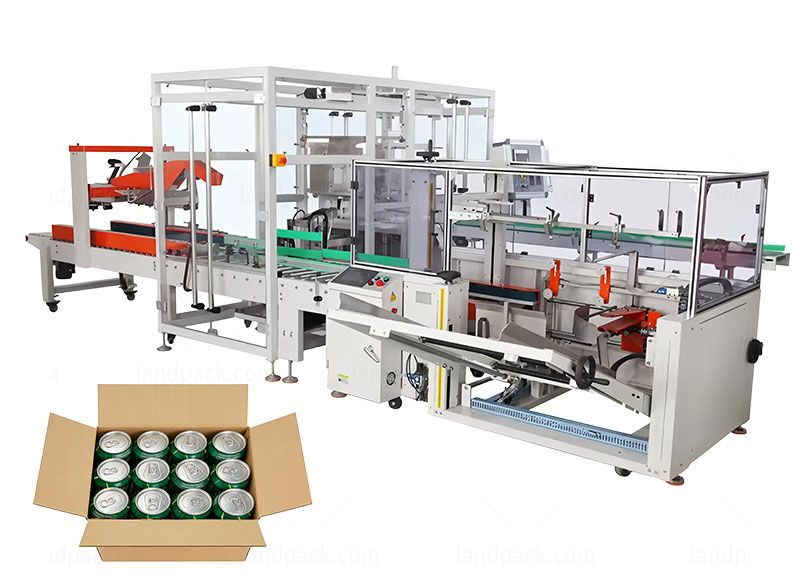

Automatic Robotic Case Packing System is an end-of-line packaging solution designed for packing snack bags, bottles, coffee pouches, biscuit packs, frozen food bags, and seasoning sachets into shipping case.
Max.40 cycle/min
Model: LD-LD-LLP550
Application:
Automatic Robotic Case Packing System is an end-of-line packaging solution designed for packing snack bags, bottles, coffee pouches, biscuit packs, frozen food bags, and seasoning sachets into shipping case.
Max.40 cycle/min
Application:
Automatic Robotic Case Packing System is a end-of-line packaging solution designed for packing snack bags, bottles, coffee pouches, biscuit packs, frozen food bags, and seasoning sachets into shipping case.
Package Type:
Suitable for corrugated cartons, shipping boxes and taped cases used in secondary packaging applications. Supports bottles, cans, pouches, trays, cartons and wrapped products with adjustable carton sizes and packing layouts.
● 1. Pick-and-place robotic system accurately transfers bottles from conveyors into cartons.
● 2. Automatic product grouping ensures neat and organized carton loading.
● 3. Dual servo motor control provides stable operation and precise positioning.
● 4. Intelligent synchronization system improves packing efficiency and reduces errors.
● 5. High-accuracy control technology ensures consistent packaging performance.
● 6. Quick-adjust self-locking mechanisms simplify size changeovers and maintenance.
● 7. Durable alloy frame and safety enclosure enhance machine reliability and longevity.
● 8. Equipped with shortage detection, product inspection and overload protection for safer operation.
Model | LD-LLP550 | |
Packing speed | ≤5/min(depends on products) | |
Carton size | minimum | 220*150*120 |
maximum | 600*400*400 | |
Air compressed | ≤1m³/hour 0.6mpa | |
Power supply | 1.5kw 220/380v 50hz | |
Using tape | OPP, kraft paper | |
Machine Size(mm) | 2200*1600*2400 | |
Machine weight | 1500kg | |

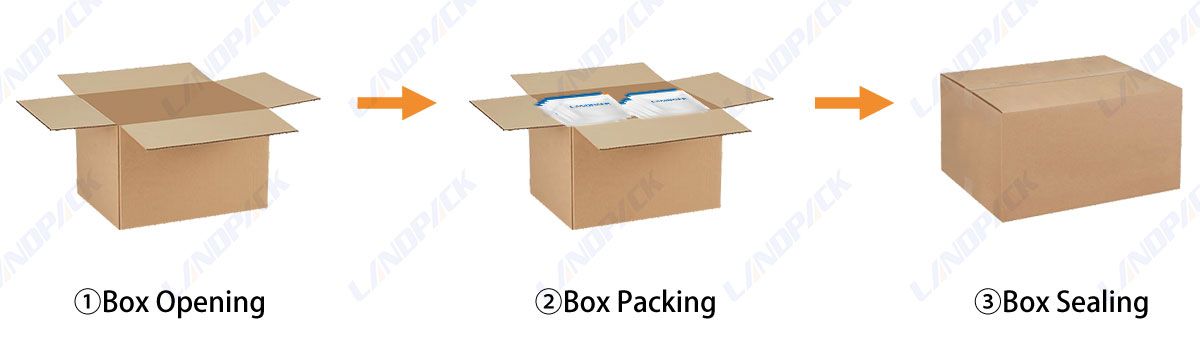

Workflow:
1. Product Conveying → Product Grouping → Position Detection → Robotic Picking → Case Loading → Finished Case Output
