Model: LD-1990
Application:

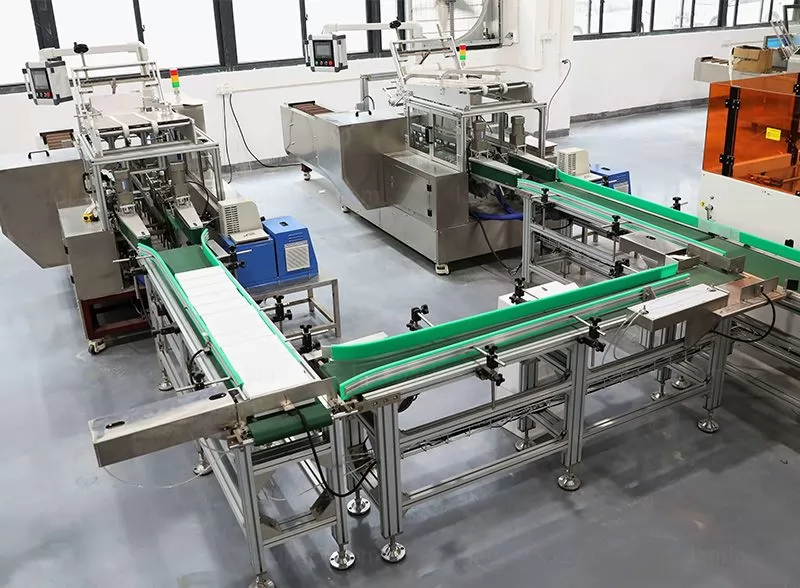

Automatic Carton Case End of Line Packaging System is designed to automate product cartoning, carton handling, case packing and case sealing. Suitable for snack boxes, biscuit cartons, coffee cartons, seasoning cartons and frozen food packaging, medicine cartons, healthcare products, medical devices and supplement packaging.
Max.40 cycle/min
Model: LD-1990
Application:
Automatic Carton Case End of Line Packaging System is designed to automate product cartoning, carton handling, case packing and case sealing. Suitable for snack boxes, biscuit cartons, coffee cartons, seasoning cartons and frozen food packaging, medicine cartons, healthcare products, medical devices and supplement packaging.
Max.40 cycle/min
Application:
Automatic Carton Case End of Line Packaging System is designed to automate product cartoning, carton handling, case packing and case sealing. Suitable for snack boxes, biscuit cartons, coffee cartons, seasoning cartons and frozen food packaging, medicine cartons, healthcare products, medical devices and supplement packaging.
Package Type:
Suitable for paper cartons, folding cartons, retail cartons, display cartons, corrugated shipping cases, RSC cartons, wrap-around cases and palletized carton loads. Supports both single-product and multi-product packaging configurations.
● 1. Fully automatic cartoning, case packing and carton sealing in one integrated packaging system.
● 2. High-accuracy control system ensures stable operation and precise product handling.
● 3. Multiple servo motors provide smooth movement and reliable packing performance.
● 4. Compatible with various carton and shipping case sizes with quick format changeover.
● 5. Compact machine layout saves factory space and simplifies installation.
● 6. PLC intelligent control system enables easy operation and real-time production monitoring.
● 7. Durable alloy frame and protective enclosure ensure long service life and safe operation.
● 8. Equipped with product detection, shortage alarms and overload protection to reduce packing errors.
Model | LD-1990 | LD-2620 |
Packing speed | 120box/min | 60box/min |
Max width of box size | Max 190*90*40mm/ Min 80*20*15mm | Max 260*180*80mm/ Min 90*60*20mm |
Power | 2.075KW | 1.5KW |
Nosize | ≤80dB | |
Air sources | 0.5-0.8Mpa | |
Machine weight | 1500kg | 1000kg |
Device size | (L)3316*(W)1230(H)1884mm | (L)3825*(W)1592(H)1761mm |
Power supply specifications | 380V 50HZ | |
Workflow:

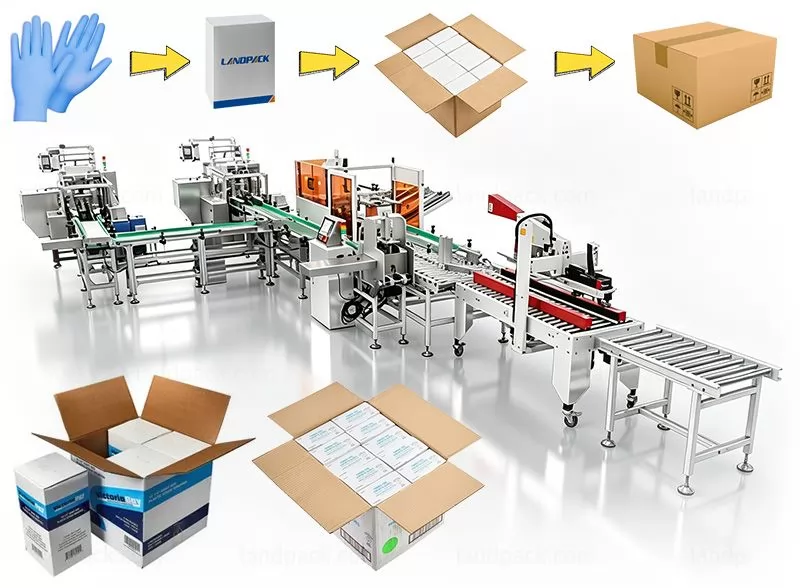

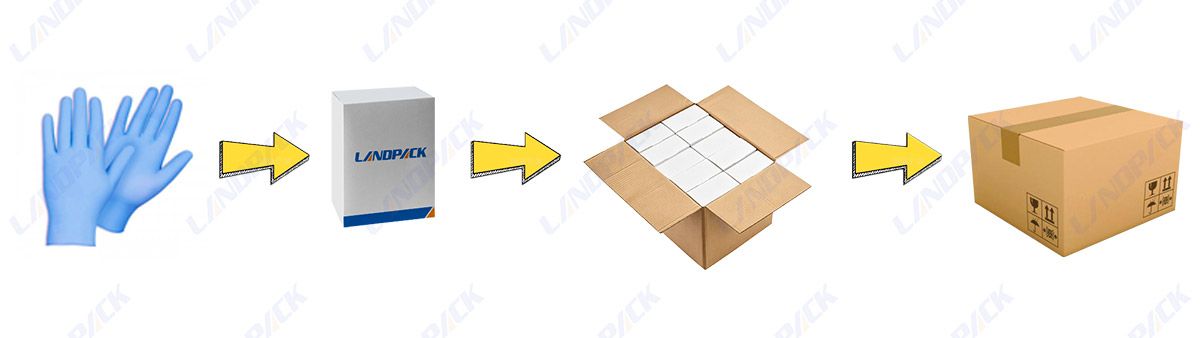

1. Product Infeed → Automatic Cartoning → Carton Closing →Case Erecting →Case Packing → Case sealing →Case Conveying
After receiving your inquiry, We will send you the quotation as soon as possible.
