Model: LDDS-80
Application:
Automatic Packing Line Case Packer Packaging System For Bottle Can Jar is a packaging solution designed for bottles, cans, jars and rigid containers.Suitable for water bottles, juice bottles, carbonated drinks, energy drinks and canned beverages, sauce jars, seasoning bottles, canned foods, honey jars and edible oil containers.
Max.120 cycle/min
Model: LDDS-80
Application:
Automatic Packing Line Case Packer Packaging System For Bottle Can Jar is a packaging solution designed for bottles, cans, jars and rigid containers.Suitable for water bottles, juice bottles, carbonated drinks, energy drinks and canned beverages, sauce jars, seasoning bottles, canned foods, honey jars and edible oil containers.
Max.120 cycle/min
Application:
Automatic Packing Line Case Packer Packaging System For Bottle Can Jar is a packaging solution designed for bottles, cans, jars and rigid containers.Suitable for water bottles, juice bottles, carbonated drinks, energy drinks and canned beverages, sauce jars, seasoning bottles, canned foods, honey jars and edible oil containers.
Package Type:
This packaging system is designed for secondary carton packaging of various rigid containers, including PET bottles, glass bottles, aluminum cans, plastic jars, metal tins and composite containers. Products can be automatically arranged in single-row, double-row or multi-row configurations before being loaded into corrugated cartons.

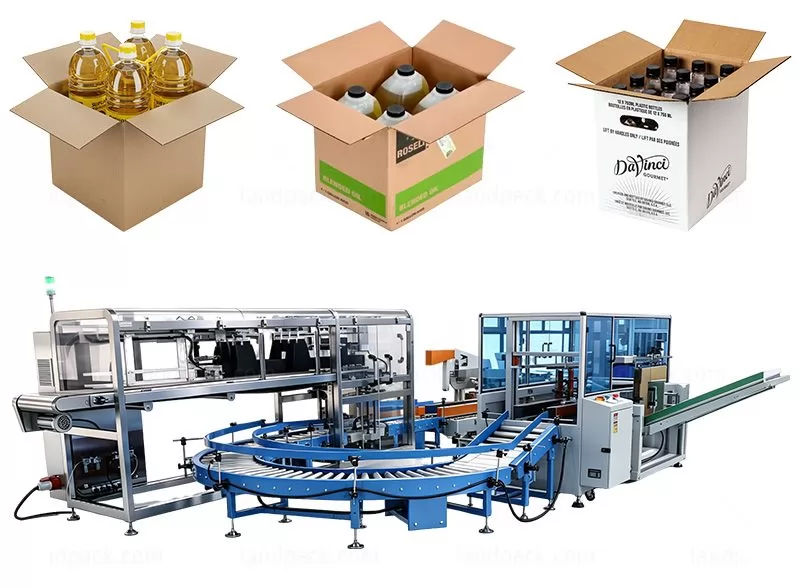

● 1. Automatically completes carton erecting, product grouping, case packing, carton sealing and palletizing in one integrated production line.
● 2. Servo-controlled handling system ensures accurate product positioning and stable high-speed operation.
● 3. Intelligent product detection system prevents empty cartons, missing products and packing errors.
● 4. Modular design supports bottles, cans, jars, cartons, pouches and other packaged products with flexible packing patterns.

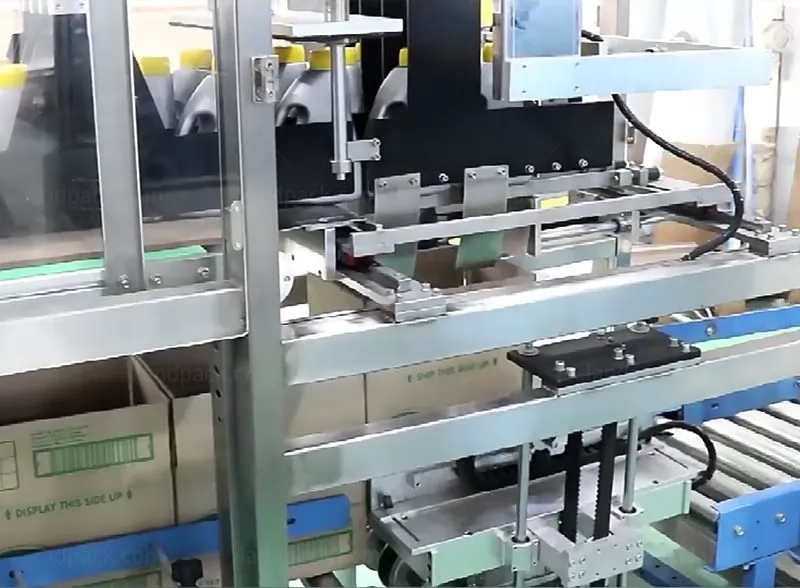

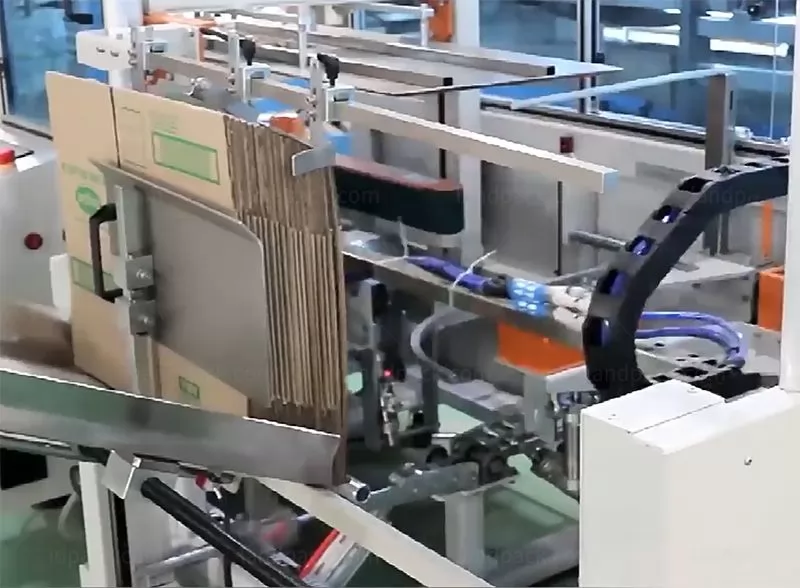

● 5. Automatic carton erector achieves stable carton forming with a success rate of up to 99.9%, ensuring continuous production.
● 6. Robotic palletizer supports multiple pallet sizes and stacking patterns for efficient warehouse and logistics operations.
● 7. PLC touch screen control system enables quick product changeovers, recipe storage and user-friendly operation.
● 8. High-level automation significantly reduces labor requirements while improving packaging consistency, transport stability and overall production efficiency.
Name | Case packing station for bottle |
Feeding speed | 5-40m/min, adjustable (2000-16000 bottles/hour according to 550ml round bottle) |
Column width | 450mm |
column number | adjustable from 1-10 |
Material size | Height 40-300mm, width20-150mm (other sizes are customized) |
Carton size | L250-450×W150-400×H100-400mm (other sizes are customized) |
Packing speed | 1-15 boxes/min (can be customized) |
Power | 380V/50HZ/2.5kw |
Machine dimension | L3270*W800*1450mm |
Machine weight | about 750kg |
Workflow:
1.Product Conveying → Product Counting → Product Grouping → Carton Erecting → Drop-Type Case Packing → Carton Sealing → Finished Carton Output
After receiving your inquiry, We will send you the quotation as soon as possible.
