Model: LD-ZHJ300
Application:

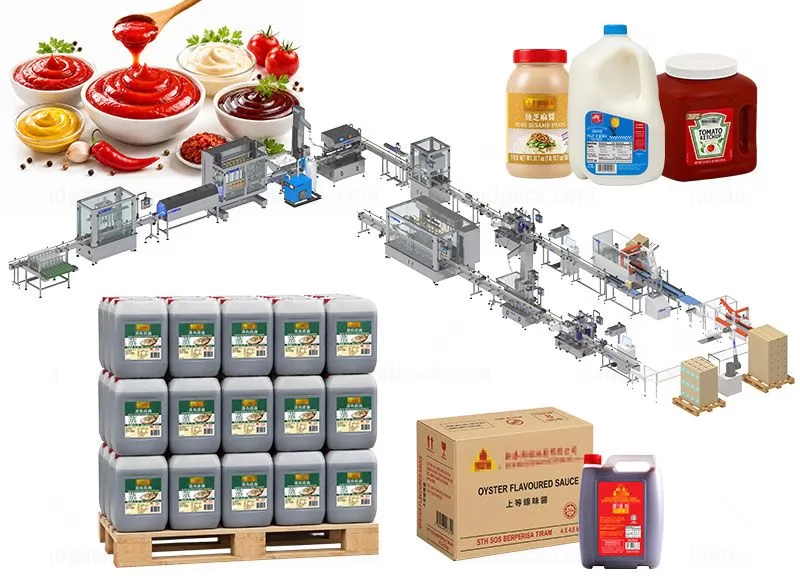

Fully Automatic Bottle Jar Liquid Packaging Systems is suitable for Chili sauce, tomato ketchup, pasta sauce, barbecue sauce, hot sauce and seasoning sauces, Honey, jam, syrup, dressing, cooking sauces and liquid condiments.
Max.120 cycle/min
Model: LD-ZHJ300
Application:
Fully Automatic Bottle Jar Liquid Packaging Systems is suitable for Chili sauce, tomato ketchup, pasta sauce, barbecue sauce, hot sauce and seasoning sauces, Honey, jam, syrup, dressing, cooking sauces and liquid condiments.
Max.120 cycle/min
Application:
Fully Automatic Bottle Jar Liquid Packaging Systems is suitable for Chili sauce, tomato ketchup, pasta sauce, barbecue sauce, hot sauce and seasoning sauces, Honey, jam, syrup, dressing, cooking sauces and liquid condiments.
Package Type:
The Bottle Jar Liquid Packaging Systems supports glass jars, PET bottles, HDPE bottles, sauce containers, wide-mouth jars, round bottles, square bottles and customized liquid packaging containers. Finished products are automatically packed into cartons and palletized for transportation and warehouse storage.

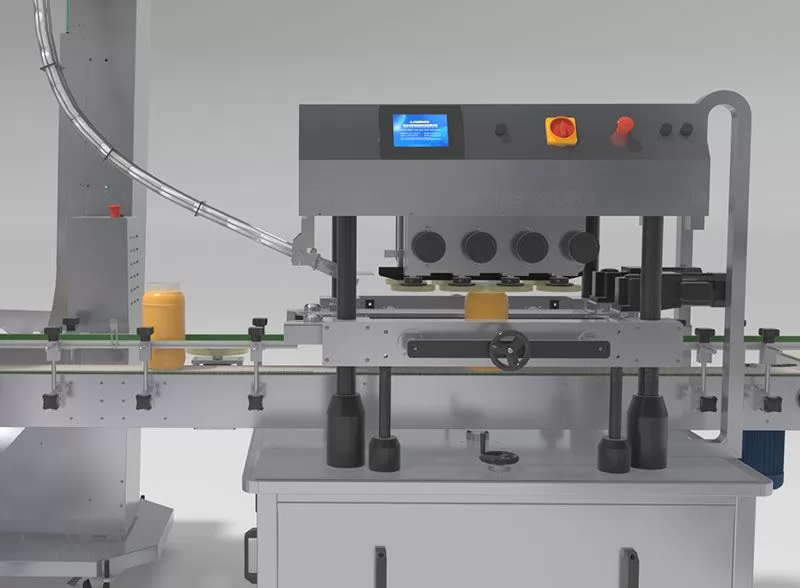

● 1. Fully automatic line integrates bottle handling, filling, capping, sealing, labeling, cartoning and palletizing into one continuous production process.

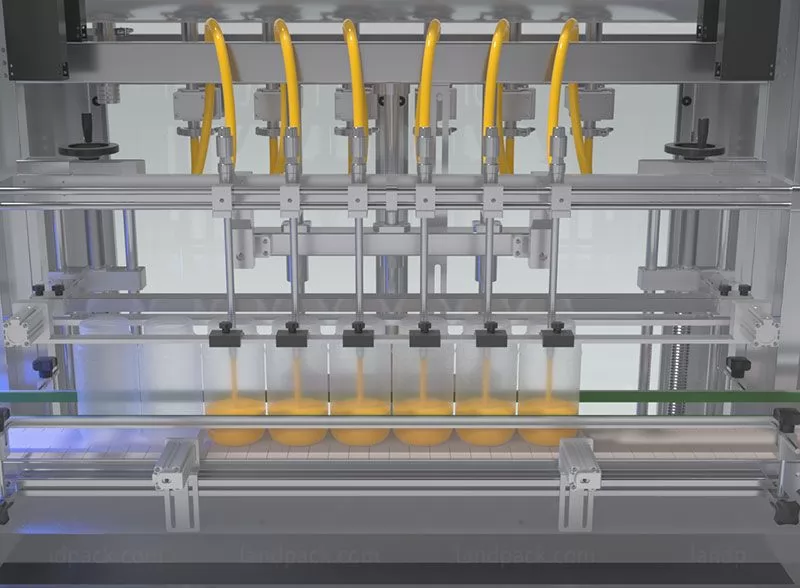

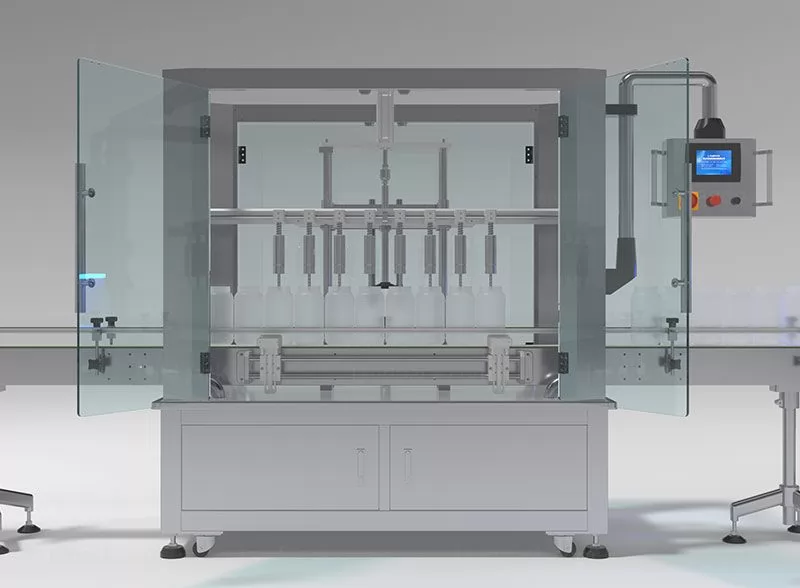

● 2. Filling system can be customized according to different sauce viscosities, filling volumes and production capacity requirements.
● 3. UV bottle sterilization and optional liquid nitrogen injection help improve product hygiene, freshness and shelf life.
● 4. Aluminum foil induction sealing provides additional leak protection and enhances packaging safety during transportation.
● 5. Automatic labeling and date coding ensure clear product identification and full production traceability.
● 6. Intelligent case packing system automatically completes carton erection, bottle loading and carton sealing, significantly reducing manual labor.
● 7. Dual production lines can share one robotic palletizer, improving equipment utilization and reducing investment costs.
● 8. Flexible line configuration can be customized based on bottle specifications, carton sizes, factory layout and output requirements, delivering efficient end-of-line automation.
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
Workflow:

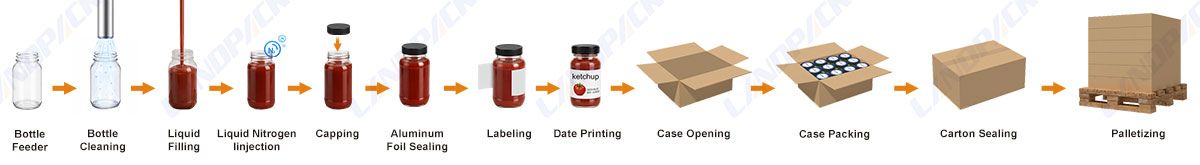

1.Bottle Washing → Liquid Filling → Capping → Inkjet Coding → Carton Erection → Automatic Case Packing → Carton Sealing → Robotic Palletizing → Finished Pallet Output
