Model: LDF-350
Production capacity: 300-600 bags/min
Packing size: Length 70-450mm×Width 80-175mm
Applicable raw materials: Swab, Cotton Swab.
300-600 bag/min
Model: LDF-350
Production capacity: 300-600 bags/min
Packing size: Length 70-450mm×Width 80-175mm
Applicable raw materials: Swab, Cotton Swab.
300-600 bag/min

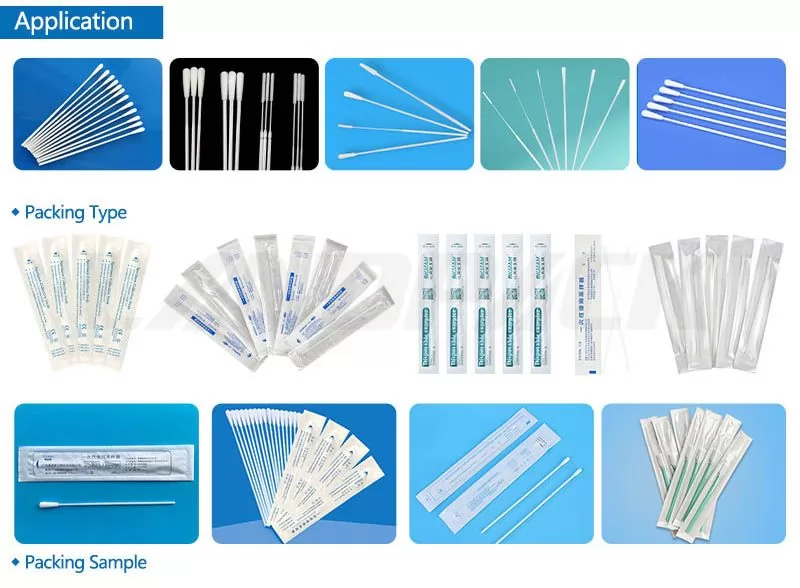

● Application: It is suitable for the packaging of sheet materials such as medical dressings, gauze sheets, throat swabs, and nasal swabs. It is driven by servo motor and adopts PLC programmable controller to make the operation of the whole machine programmed. It is composed of servo traction, multi-row feeding, reciprocating heat sealing, vertical and horizontal cutting and finished product conveying mechanism. The machine runs stably and is easy to operate!
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● Programmable control, PLC programmable control, driven by servo motor, make the whole machine run programmatically.
● Touch screen display, host speed, set bag length, cutter, heat sealing and feeding time, output will be displayed on the screen, at a glance.
● Graphic matching: Imported photoelectric eye tracking color scale, accurate graphic matching.
● Automatic temperature control, two sets of temperature controllers are used for automatic temperature control in the heat sealing part to improve the sealing quality.
Model | LDF-350 |
Film width | 350mm |
Bag length | 70-450mm |
Bag width | 80-175mm |
Product height | 1-5mm |
Film roll diameter | Max 400mm |
Packaging speed | 300-600bag/min |
Packaging materials | paper/plastic |
Power | 380V,50/60Hz,20KW |
Machine size | (L)5600 (W)1730 (H)1500 mm |
Machine weight | 2750Kg |
● The stability of the whole machine is good.
● Automatic feeding, reducing manual work.
● The alarm will light up and stop if there is no material in the unloading bin.
● Each of the 6 heating devices has a temperature control meter display, which can accurately reflect the temperature of each heating device. Once one of the abnormalities is detected, it can be resolved immediately.
