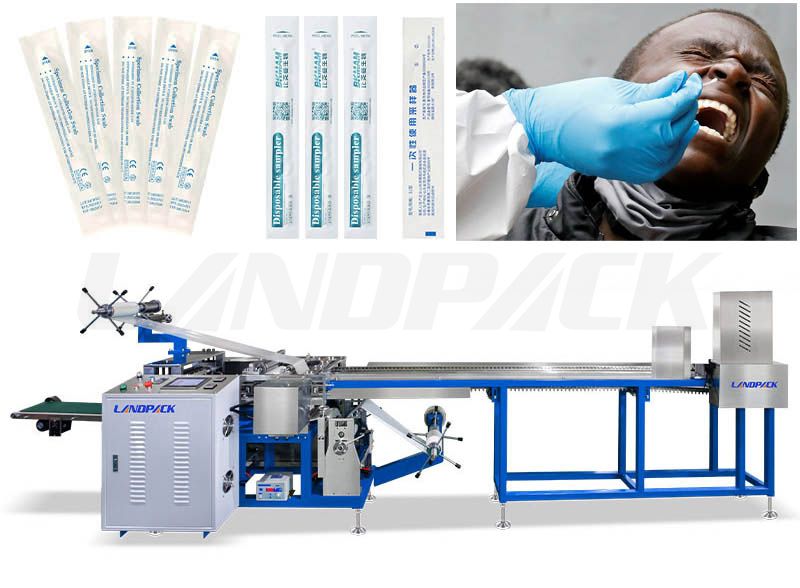

Automatic Nasal Swab Packing Machine Fast Packaging And Running Stable

Model: LD-S327

Production capacity:  250-300pcs/min

Packing size: L*W: 190*35.56mm; L*W: 190*40mm

Applicable raw materials: Swab, Cotton Swab.


Speed:

250-300pcs/min

Bag Size:

L: 190mm

W: 35-40mm

Automatic Nasal Swab Packing Machine Fast Packaging And Running Stable

Model: LD-S327

Production capacity:  250-300pcs/min

Packing size: L*W: 190*35.56mm; L*W: 190*40mm

Applicable raw materials: Swab, Cotton Swab.


Speed:

250-300pcs/min

Bag Size:

L: 190mm

W: 35-40mm

 Application: This packing machine is fabricated to automatically and individually packaging of sterile cotton swabs, throat swabs, anal swab, medical nasal swabs, oral swabs, specimen collection swab, etc.

 Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristicAutomatic Nasal Swab Packing Machine Fast Packaging And Running Stable (Swab Packing Machine)

 Servo motors and control system drive mode:
  A. Air defense, positioning stop function, save packaging materials;
  B. Prevent cutting, protect the cutter, improve efficiency;
  C. Accurate positioning and automatic error correction;
  D. Fast packaging speed, less noise, and less power consumption;

 The same type of machinery on the market mostly adopts manual adjustment of product position. It is large error and high reject rate; However, medicine plate packing machine adopts motor positioning and "differential" feeding mode. In the process of operation, it can easily realize the adjustment of feeding position, accurate and fast;

 Adopt adjustable bag making device to meet the packaging requirements of multiple varieties, specifications and plates;

 Sliding horizontal sealing mechanism, can arbitrarily adjust the center height of horizontal sealing;

 Adopt high quality pressure brush. Compared with the ordinary pressure brush on the market, it is not easy to deformation and more durable; 6) Large color touch screen and microcomputer packaging controller can do free setting for the feeding position, plate number, speed, bag length, cutting point position detection and other parameters and it is convenient for later technical upgrade and function adjustment;

 Independent temperature PID control, better suitable for all kinds of packing material;

 Compact structure design, simple rotation system, stable performance, more convenient maintenance;

 With fault self-diagnosis function, reduce maintenance time, to ensure stable production;

 Manual/feeder/online, three working ways selection according to requirements, more suitable for customers' existing equipment

ModelLD-S327
Packing Speed250-300pcs/min
Packaging Film SizeWidth: 190mmSpacing: 35.56 (Roll film)
Bag SizeL*W: 190*35.56mmL*W: 190*40mm
Equipment Size
4300*900*1150mm(L*W*H)
Equipment Weight
700kg
Power Supply
AC:220V, 50/60HZ, 3KW

 The stability of the whole machine is good.

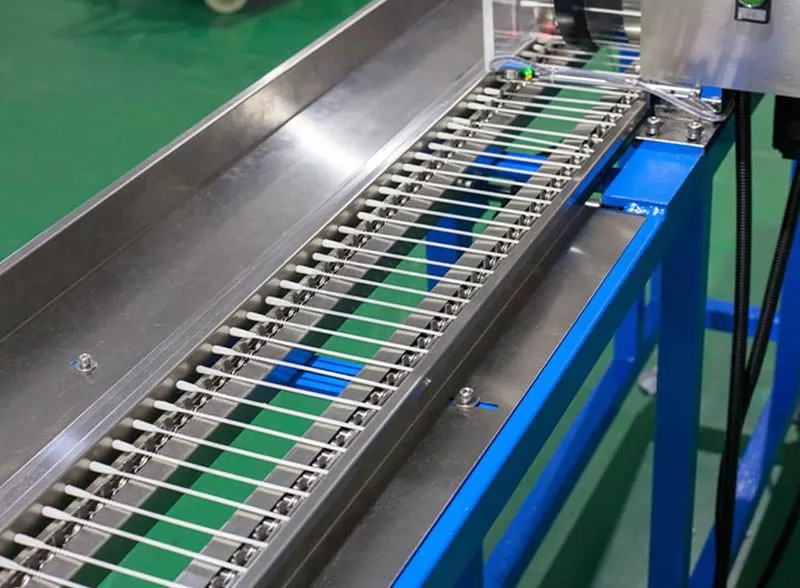

 Automatic feeding, reducing manual work.

 The alarm will light up and stop if there is no material in the unloading bin.

 Accurately reflect the temperature of each heating device. It can be resolved immediately when abnormalities is detected.
