Mini Sugar Premade Pouch Fill And Seal Machine With Two Linear Weigher

Model: LD-200AX

Packaging materials: Multilayer Composite Premade Bag(e.g.: PET/PE).

Bag Type: 3-side-seal, gussette pouch, standup pouch no-zip-lock.

Sealing Type: Straight grain, pitch is 1mm (Optional reticulate).

Speed:

1~26 bags/min

Bag Size:

70mm≤W≤150mm

100mm≤L≤200mm

Mini Sugar Premade Pouch Fill And Seal Machine With Two Linear Weigher

Model: LD-200AX

Packaging materials: Multilayer Composite Premade Bag(e.g.: PET/PE).

Bag Type: 3-side-seal, gussette pouch, standup pouch no-zip-lock.

Sealing Type: Straight grain, pitch is 1mm (Optional reticulate).

Speed:

1~26 bags/min

Bag Size:

70mm≤W≤150mm

100mm≤L≤200mm

 It can auto finish material feeding, weighing, premade pouch pick-up, open, fill and seal, etc. Premade pouch can be 3-side-seal, gussette pouch, standup pouch no-zip-lock.

 Suitable for sugar standing bags, zipper bags, pre-made bags packing such as white sugar, brown sugar, sucrose, granulated sugar, brown sugar, etc.

Packaging Material:

sugar

sugar

sugar

sugar

sugar

sugar

sugar

sugar

sugar

sugar

sugar

sugar

Bag Style:

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

premade pouch

Basic Configurations:

 Touch Screen: China Kinco 7 inches corlor touch screen;

 Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);

 PLC: Japan Panasonic;

 Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);

 Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);

 Vacuum Component: Japan SMC;

 Modular Control System For Vacuum Pressure: Japan SMC;

 Modular Control System For Temperature: China YUDIAN;

 Electrical Component: Schneider / Omron;

 Safety Key Interlock Switch;

 The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;

 The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).


Basic Functions:

 The machine stops running when the safety key interlock switch is pulled out;

 No bag prompting function;

 Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;

 Positioning (anti-dropping) function of hopper;

 Warning function of cartridge heater fault ;

 Warning function of cylinder fault.

 Warning function which air pressure is not up to standard.


Performance Features:

 Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;

 Low maintenance cost / Modular replacement of the parts;

 Certificate of Conformity.

Model: LD-200AX

Bag Material: Multilayer Composite Premade Bag (e.g.: PET/PE)

Bag Type: 3 Side Seal Bag, Stand-up Bag"

Upgradable Bag Type: N/A

Size Range: 70mm≤W≤150mm, 100mm≤L≤200mm"

Speed: 0~26bags/min

Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)

Sealing Width: 10mm (5--20mm can be customized)

Voltage: 220V, Single-phase, 50/60HZ, 1KW

Air Pressure: 0.65Mpa

Air Consumption: 0.2m³/min (Standard machine, no additional function)

Body Dimension: 1080*535*1010mm

Packing Dimension: 1240*670*1320mm (Export non-fumigation wooden case)

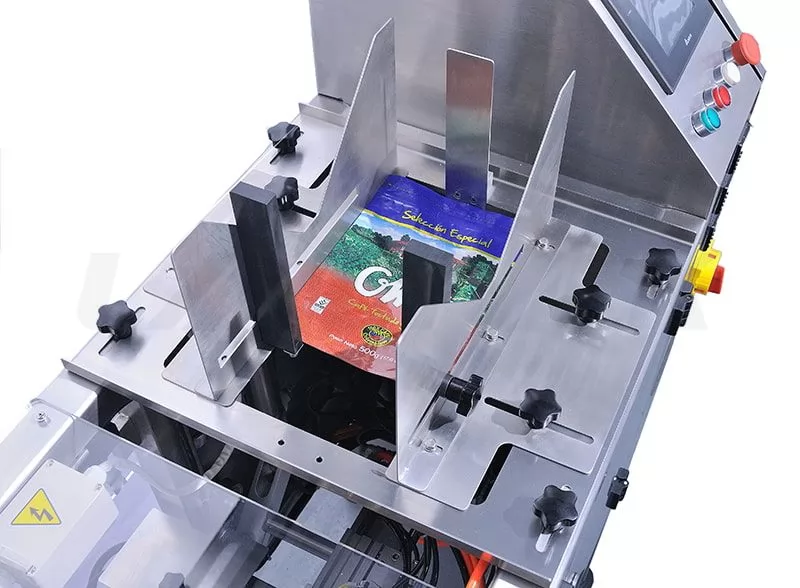

BAG OPENINHG

Pouches are individually removed from the cartridge with a unique combination of vacuum and pneumatic actuators. They are rotated to the fill area and opened.

TRANSITION CHUTE

doubling as a timing bucket. product enters the transition chute while the bag is being opened below. Upon pouch detection the chute enters the bag and opens its gate. Product is dispensed immediately, without spillage and protecting the seal from contamination. Difficult product that easily bridges is dispensed into the pouch directly from the filler, through the "open-gate''

FILLING

During filling, pouches are held in place with our "posi-hold" gripper system. This allows for heavy weights and shock loads

without disturbing bag Position

SEALING

Digitally controlled ribbed or flat constant heat seal bars give a integral attractive seal. Pouches are sealed ''in place" eliminating wrinkles, folded corners and non aligned seals

MECHINE CONTROLS

System controls are fully solid state. utilizing a commercial Programmable Logic Controller [PLC] and pneumatics. Indicator lights signal all cycle processes for easy monitoring.

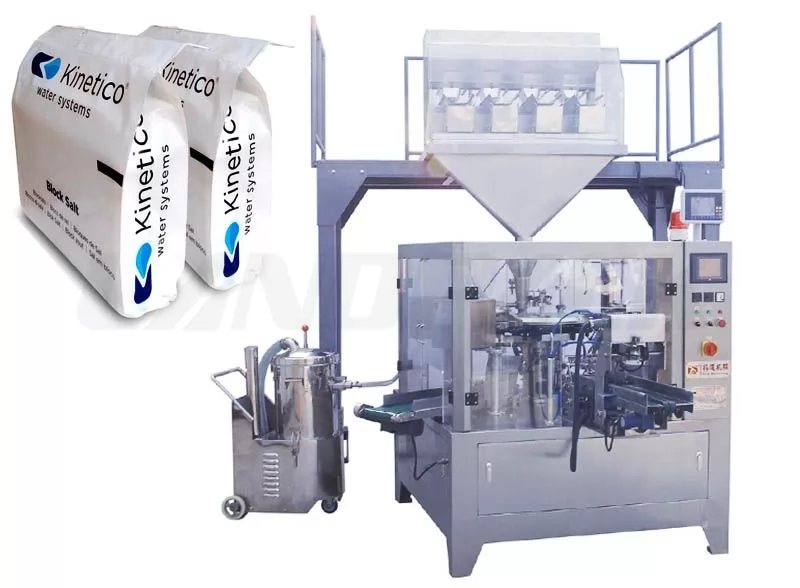

Mini Doypack Packaging Machine with 4 head weigher
