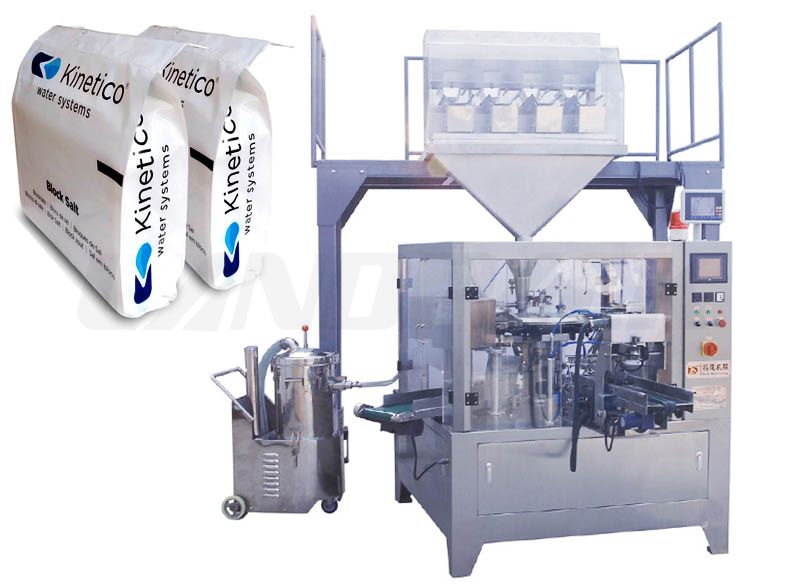

Model: LD-8200AX-4
Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.
Filling Volume: Up to 5kg
Packaging Accuracy: ±0.5~1.5%
10-60bags/min
Model: LD-8200AX-4
Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.
Filling Volume: Up to 5kg
Packaging Accuracy: ±0.5~1.5%
10-60bags/min
● Suitable for the big Premade pouch packaging of various fine particles, such as edible salt, mineral salt, sea salt, sugar, brown sugar, monosodium glutamate, etc.
● Suitable Pouches: All type of heat sealable preformed side seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout ect.
Packaging Material:
Salt
Sugar
Brown Sugar
Himalayan Salt
Salt
Brown Sugar
Bag Style:
Premade Pouch
Premade Pouch
Premade Pouch
Premade Pouch
Premade Pouch
Premade Pouch
● Easy To Operate:PLC control, man-machine interface is friendly.
● Variable frequency speed regulation:Used frequency conversion adjustment device, the speed can be adjusted within the range according to the needs of reality in production.
● Easy to adjust the clip width:Control by motor;Only by a button you can sync control 8 sets of clip.
● The material level is all made of stainless steel 304 or food-degree plastic according with food hygienic requirement.
● Use no oil vacuum pimp,avoid polluting the enviroment in the production.
● Easy to clean:the machine table can be washed.
● Pouch Material: Laminated film,PE,PP
● Pouch pattern: Stand up pouch,stand up pouch with spout,Flat pouch
● Max filling range: Up to 5kg
● Filling accuracy:±0.5-1.5%
● Pouch size: W:100-210mm L:100-350mm(can choose other size)
● Speed: 10-60bags/min
● Voltage: 380V3phase 50HZ/60HZ(Customized)
● Total power: 4.5KW
● Compress air: 0.6m3/min(supply by user)
1. Bag giving
2. Date coding
3. Bag opening
4. Filling and vibrating 1
5. Filling and vibrating 2
6. Product settling after filling by vibrating
7. Heat sealing
8. Forming and product output
