Model: LF-YX 600
Filling Scope: 100-300g, 100-500g, 500-2500g (optional)
Precision: 2-4%g
Compatible bottle height range: 80-180mm
1200-3500 BPH
Model: LF-YX 600
Filling Scope: 100-300g, 100-500g, 500-2500g (optional)
Precision: 2-4%g
Compatible bottle height range: 80-180mm
1200-3500 BPH

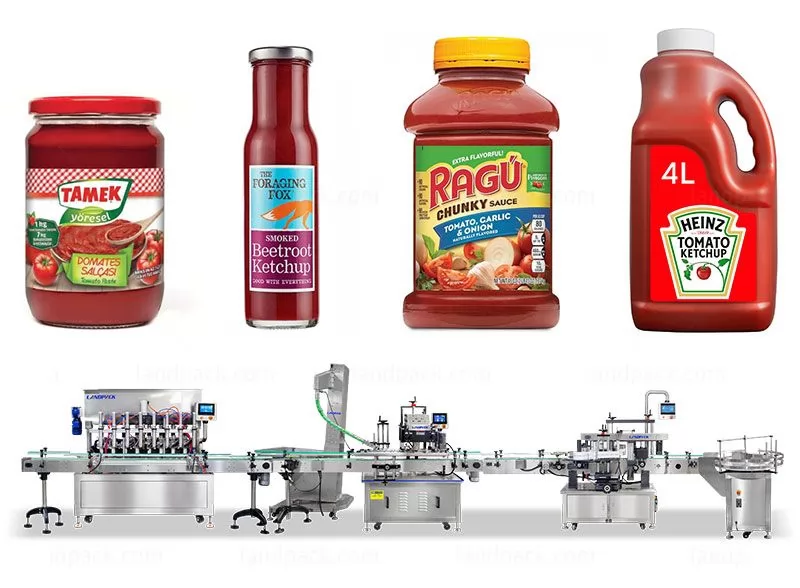

● This production line is suitable for the filling of some large particle sauce products, such as: chili sauce, mushroom sauce, spicy sauce, seafood sauce, beef sauce, bean paste, tempeh sauce and other sauce products. The production efficiency of this automatic chili sauce filling and capping production line is very high, which can reach thousands of bottles per hour, which is very suitable for the needs of some large-scale production enterprises.
Bottle Style:
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
Bottle Style
● Use professional servo motors at home and abroad to precisely control the speed of the motor to achieve the precise position movement of the quantitative cylinder;
● Taiwan Delta or Germany Siemens programmable controller (PLC) and Taiwan Weilun touch screen terminal, the filling process is accurate and reliable;
● The machine can be customized with various models of 4-12 heads according to different speed requirements of customers;
● This production line uses a precise gear transmission system and a DC motor to allow the height of the bottle to be adjusted through the function of the high and low lifting buttons when switching bottles. This innovation makes it easier to use.
● Model: LF-YX 600
● Filling range: 100-300g, 100-500g, 500-2500g (optional)
● Filling speed: 1200-3500 bottles/hour
● Measurement accuracy: 2-4%g
● Rated voltage: AC 380V 50Hz
● Rated power: 3KW
● Working air pressure: 0.6-0.8Mpa
● Compatible bottle height range: 80-180mm
● Material supply method: hoist/screw pump/diaphragm pump
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
