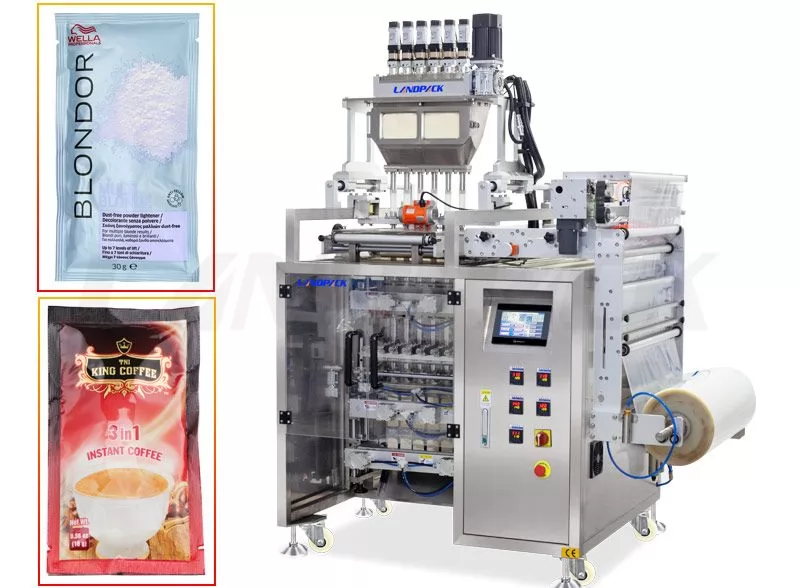

Model: LD480F/ 720F/ 960F/ 1200F
Application:
Suitable for packing loose, non sticky powder material in the medicine, food, daily chemical and other industry, and automatic packing into sachets with measuring requirement. Such as coffee powder, milk powder, soymilk powder, starch, drug, pulveres, and so on.
160-480pcs/min
Model: LD480F/ 720F/ 960F/ 1200F
Application:
Suitable for packing loose, non sticky powder material in the medicine, food, daily chemical and other industry, and automatic packing into sachets with measuring requirement. Such as coffee powder, milk powder, soymilk powder, starch, drug, pulveres, and so on.
160-480pcs/min
● Application: Suitable for packing loose, non sticky powder material in the medicine, food, daily chemical and other industry, and automatic packing into sachets with measuring requirement. Such as coffee powder, milk powder, soymilk powder, starch, drug, pulveres, and so on.

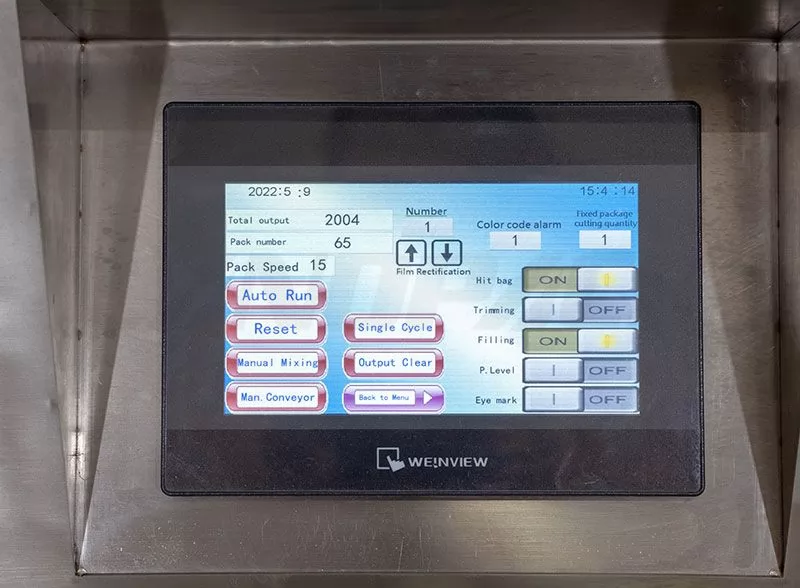

● 1. PLC control system, wide vision touch screen with English/Chinese interface;
● 2. State-of-art but simple design, easy to operate and maintain;

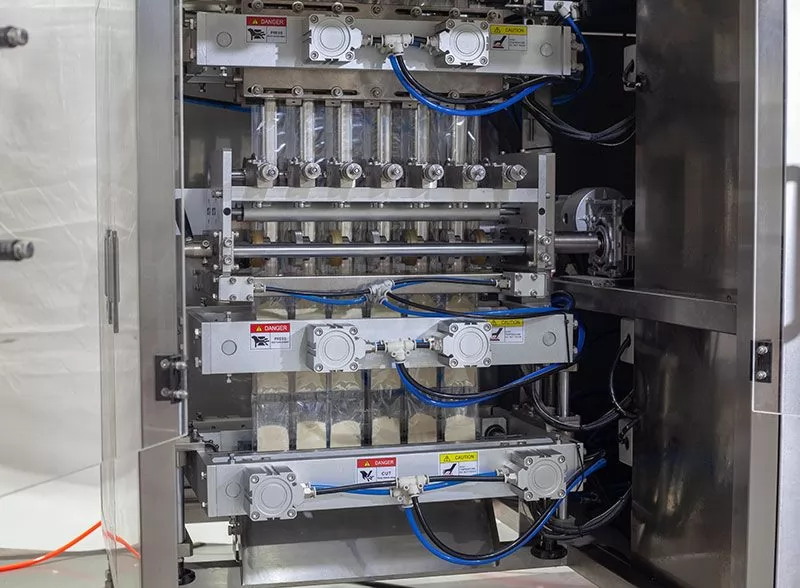

● 3. Automatically measuring, bags making, filling ,sealing, cutting, printing lot number and cutting easy tearing notches;
● 4. Continuous bag/bag across, easy cutting, hole ponching (if needed);
● 5. Suitable for film like Paper/ polyethylene, cellophane/ polyethylene, plated aluminum/ polyethylene, BOPP/ polyethylene, nylon/ polyethylene.
Model | LD-480F | LD-720F | LD-960F | GLD-1200F |
Track Number | 4-6 Track | 4-8 Track | 4-10 Track | 4-12 Track |

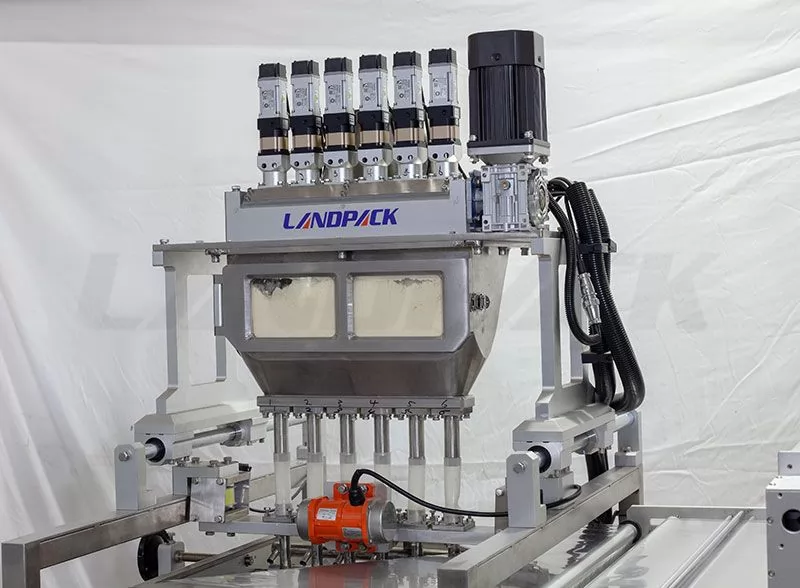

Filling Method | Auger filling by servo motor | |||
Capacity | 20-40 bags/cut | |||
Sachet Size | L:45--120mm;W:50-60mm | L:45--120mm;W:50-90mm | L:45--120mm;W:50-120mm | L:45--120mm;W:50-150mm |
Film Width&Thinckness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm | Max.1200mm;0.07-0.1mm |
Sealing Ttype | 4side sealing | |||
Cutting Type | 1.Straight cutting 2.Zig zag cutting 3.Continous cutting | |||
Air&Power | 0.8MPA 0.8m³/min;2.8kw | 0.8MPA 0.8m³/min 4.1kw | 0.8MPA 0.8m³/min 5.5kw | 0.8MPA 0.8m³/min 6.5kw |
| DIM&WT | 950*1470*1750mm 300kg | 1153*1654*1750mm 400kg | 1415*1686*2130mm 500kg | 2220*2210*2600mm 800kg |
It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
