Home >> Products >> Sachet/ Stick Pack Machine

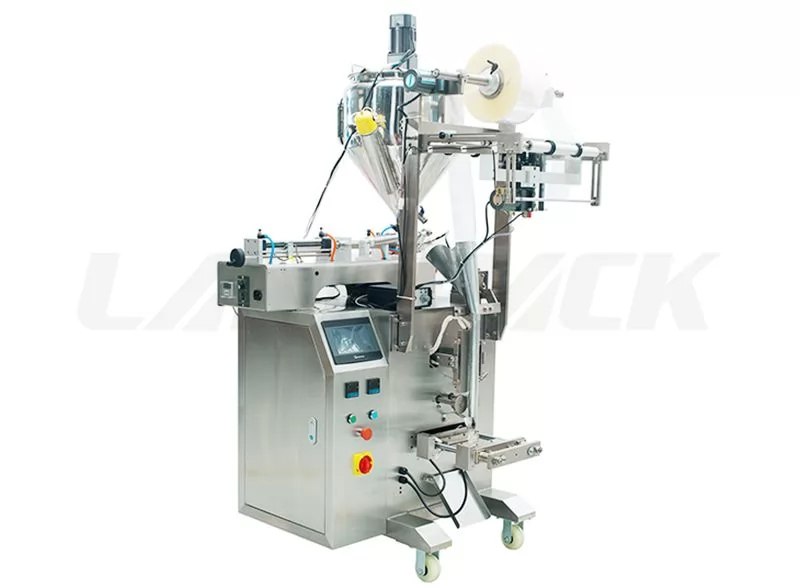

Automatic Liquid 3/4 Sealing Sachet Packaging Machine

Model: LD-320L/ 380L

Application: Automatic liquid 3/4 sealing sachet packaging machine, it is suitable for packing for all kinds of liquid material which such as liquid milk, water, honey, juice, tomato paste, ketchup, sauce, oil, etc. After replacing the sealing device, Suitable for Various bag types, e.g. back-sealing bag, 3 sides seal bag, 4 sides seal bag, stick bag, linking bags, etc.

Speed:

35-70bag/min

Bag Size:

L: 50-280mm

W: 50-180mm

Automatic Liquid 3/4 Sealing Sachet Packaging Machine

Model: LD-320L/ 380L

Application: Automatic liquid 3/4 sealing sachet packaging machine, it is suitable for packing for all kinds of liquid material which such as liquid milk, water, honey, juice, tomato paste, ketchup, sauce, oil, etc. After replacing the sealing device, Suitable for Various bag types, e.g. back-sealing bag, 3 sides seal bag, 4 sides seal bag, stick bag, linking bags, etc.

Speed:

35-70bag/min

Bag Size:

L: 50-280mm

W: 50-180mm

 Application:  Automatic liquid 3/4 sealing sachet packaging machine, it is suitable for packing for all kinds of liquid material which such as liquid milk, water, honey, juice, tomato paste, ketchup, sauce, oil, etc. After replacing the sealing device, Suitable for Various bag types, e.g. back-sealing bag, 3 sides seal bag, 4 sides seal bag, stick bag, linking bags, etc.

Automatic Liquid 3/4 Sealing Sachet Packaging Machine

 Computer PLC control and automatic alarming function.

 Multilingual screen display, easy operation.

 High sensitivity photoelectric eye color tracing,more accuracy.

 Bag type can be customised to 3 or 4 sides sealing bag, pillow bag, long stick bag, link bag, etc.

 Famous brand components, ensure the quality and durability of machine.

 Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.

 Ribbon code printer, link-bag device is option.

 Multipurpose packaging, suitable for various packaging of different product.

ModelLD-320LLD-380L
Film width120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film rollMax.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness
0.04-0.07mm
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)
970*680*1950mm1100*800*2150mm
Machine weightAbout 300kgAbout 450kg

  Date Coder

  Hole Punching Device(Pinhole, Round hole, the butterfly hole)

  Linking bag control device

  Air-filling Device

  Air Exhaust Device

  Tear Notch Device

After receiving your inquiry, We will send you the quotation as soon as possible.
