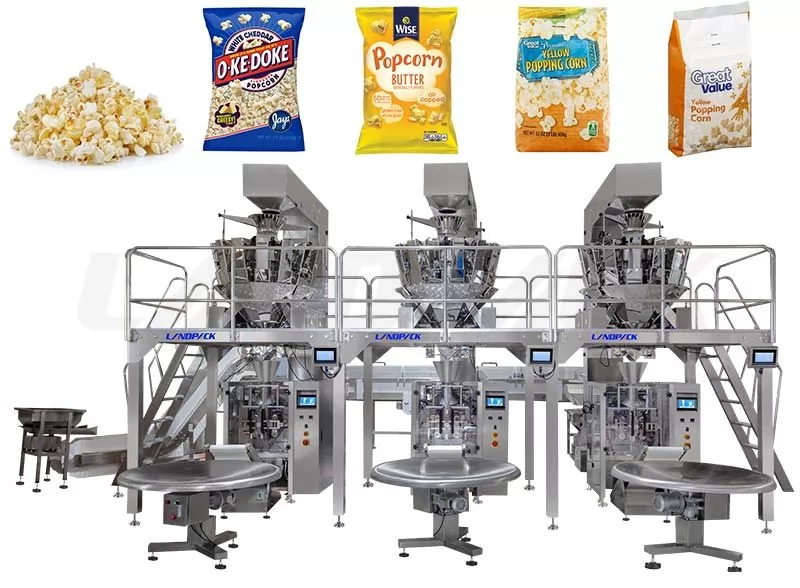

Vertical Form Fill Seal Weighing Packing System For Large Yield Popcorn

Model:  LDS-420A-3/ 520A-3

Bag Volume: 1000ml

Power Supply: 220V, 50/60 Hz, 3KW

Application: Suitable for accurate weighing packing of large yield various particles products . It is apply to pack bulk grain, slice, short bar material products such as potato chips, puffy food, popcorn, shrimp chip, salt  etc.

Speed:

Max. 180 bag/min

Bag Size:

L: 80-500mm

W: 60-350mm


Vertical Form Fill Seal Weighing Packing System For Large Yield Popcorn

Model:  LDS-420A-3/ 520A-3

Bag Volume: 1000ml

Power Supply: 220V, 50/60 Hz, 3KW

Application: Suitable for accurate weighing packing of large yield various particles products . It is apply to pack bulk grain, slice, short bar material products such as potato chips, puffy food, popcorn, shrimp chip, salt  etc.

Speed:

Max. 180 bag/min

Bag Size:

L: 80-500mm

W: 60-350mm

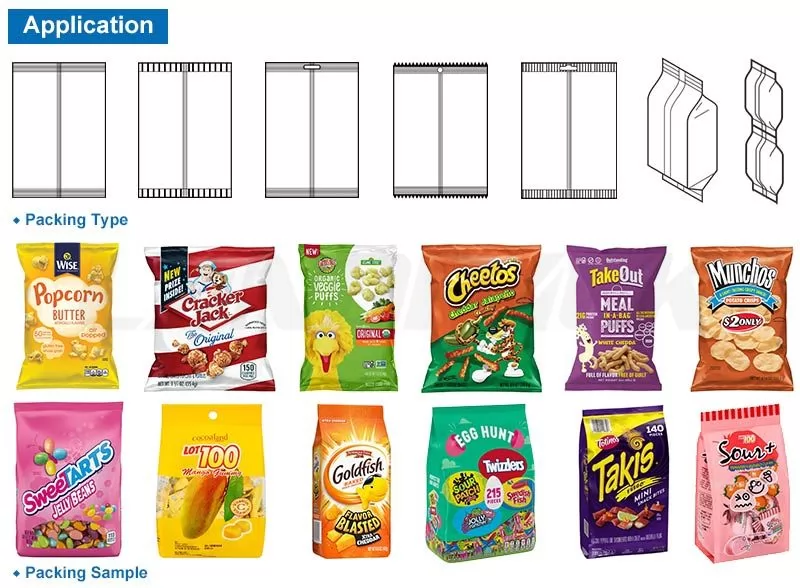

 Application:  Full Automatic Vertical Form Fill Seal Weighing Packing System For Large Yield (LDS-420A-3/ 520A-3), It suitable for accurate weighing packing of large yield various particles products . It is apply to pack bulk grain, slice, short bar material products such as potato chips, puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.

 Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.


 This packaging solution is suitable for large production packing.

 Economical,save cost,small footprint.

 Horizontal rewind conveying the material, with large transportion.

 Feeding, Measuring, Bagging, Date printing, Charging(Exhausting) realising fully automation.

 Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.

 Standard positioning with imported servo film transporting system and mark sensor.

 With auto warning protection function to minimize loss.

 High precision, high efficiency without crash the materials.

ModelLD-420A(single host)LD-520A(single host)LD-720A(single host)
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Machine Size(L)1217*(W)1015*(H)1343mm(L)1488*(W)1080*(H)1490mm(L)1780*(W)1350*(H)2050mm
Machine WeightAbout 650kgAbout 680kgAbout 750kg
Option DeviceTwo synchronous belt device, air filling device, angle fold device,automatic rectifying device, hole-punching device, link bag device.

 Two synchronous belt device

 air filling device

 angle fold device

 automatic rectifying device

 hole-punching device

 link bag device
