Model: 420A
Bag Volume: 1000ml
Power Supply: 220V 50/60 Hz, 3KW
Application: Suitable For Packing Popcorn, Puffed Food, Potato Chips, Crisps, Snacks, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, etc
20-240 Bag/ min
Model: 420A
Bag Volume: 1000ml
Power Supply: 220V 50/60 Hz, 3KW
Application: Suitable For Packing Popcorn, Puffed Food, Potato Chips, Crisps, Snacks, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, etc
20-240 Bag/ min
● Application: Suitable For Packing Puffed Food, Popcorn, Potato Chips, Crisps, Snacks, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● This packaging solution is suitable for large production packing;
● Economical, save costs, small footprint;
● Horizontal belt or fastback conveying the material;
● With large transportation, no crash, low noise and durable, reliable;
● This whole packing system is with smooth and simple, easy to control settings for feeding, measuring, bag forming sealing, filling, labeling, output, realized high automatic connection between each procedure.

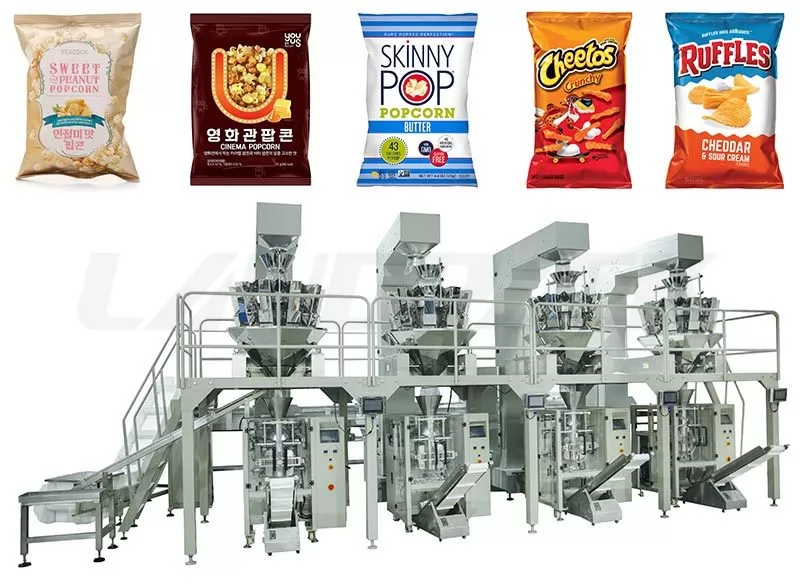

| NAME | Automatic Popcorn Weighing And Packing Line |
| Capacity | Max. 80-90 bags/min/machine according to the bag sizes, it is also affected by the quality of film and bag length |
| Accuracy | ≤±1%, depending on the measuring equipment & materials |
| Bag size | (L)50-330mm(W) 50-200mm |
| Film width | Max. 420mm |
| Bag type | Pillow bag mainly ,linking bags, punching hole bag,gusseted bag optional |
| Pulling belt type | Double-belts pulling film, double servo |
| Filling range | 10-1000ml |
| Film thickness | 0.04-0.09mm |
| Package material | BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
| Air consumption | 0.8Mpa 0.3m3/min |
| Total power | 30 Kw (depend on the specific circumstances.) |
| Voltage | Single phase220V, three phase380V, 50HZ(depend on the end users' country using, customized available) |
| Air compressor | Pls contact us for sure (due to difference setting and usage) |
● LD series mainframe
● Multi-heads weigher
● Z type bucket elevator
● Vibration feeder
● Supporting platform
● Product conveyor
After receiving your inquiry, We will send you the quotation as soon as possible.
