Model: LD-FWA-00

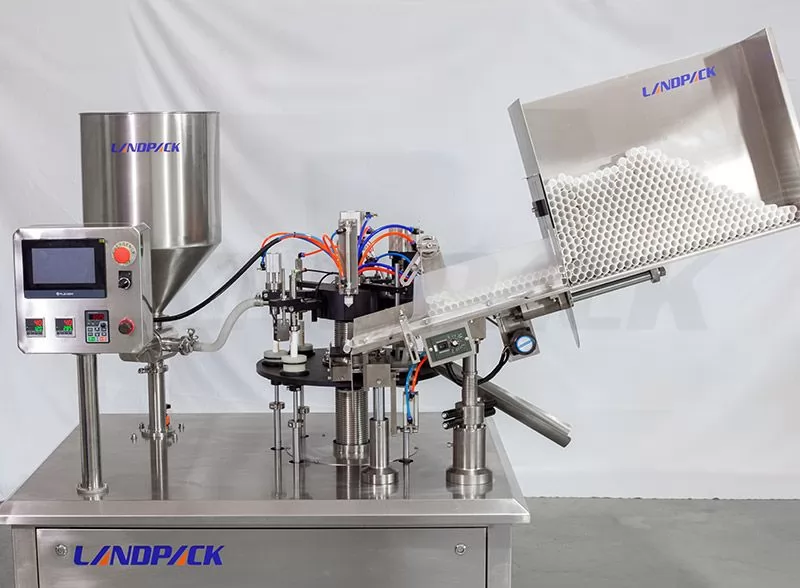

This machine applies the transmission principle. It uses the slot wheel dividing system to drive the conveyor table to do intermittent movement. The machine has 8 or 10 tube stations. Expect manually feeding the tubes onto the machine, it can automatically position the tubes, fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and trim the tails and the finished tubes exit.
10-50 tube/min
customizable
Model: LD-FWA-00
This machine applies the transmission principle. It uses the slot wheel dividing system to drive the conveyor table to do intermittent movement. The machine has 8 or 10 tube stations. Expect manually feeding the tubes onto the machine, it can automatically position the tubes, fill the material into the tubes, heat both inside and outside of the tubes, seal the tubes, press the codes, and trim the tails and the finished tubes exit.
10-50 tube/min
customizable
● It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, lubricants, adhesive and shoe polish, food industries.
● 1. The material contact parts are made of stainless steel SUS304; SUS316 is optional.
● 2. The connection of the various is used the quick-change device, which is easy to disassemble and clean;
● 3. high-quality pneumatic components
● 4. The height of conveyor table can be adjusted easily by a hand wheel for different tubes
● 5. Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.
● 6. The filling speed can be adjusted freely a VFD
● 7. Production counter could be displayed on the control cabinet
● 8. Inner heating and out heating technology, a stable and good looking sealing is got.
Model | LD-FWJ-00 | Power | 2.5kw |
Dimension | 1100*800*1600mm | Filling Head | 1 |
Filling valume | 5-300ml | Suitable Bottle Height | 50-150mm |
Suitable Bottle Diameter | 10-45mm | Capacity | 10-50 tube/min |
Filling Accurancy | 0.05% | Working Principle | Stable air pressure |
Application | Catering, food, daily cosmetics, medicine, chemical industry | Material | SUS304 |
● Manually feeding the tubes
● Automatic mark positioning (photoelectrical sensor)
● Automatic dosing filling
● Tail inner heating
● Tail sealing and pressing the batch, dates
● Tail trimming
● Automatic ejection
