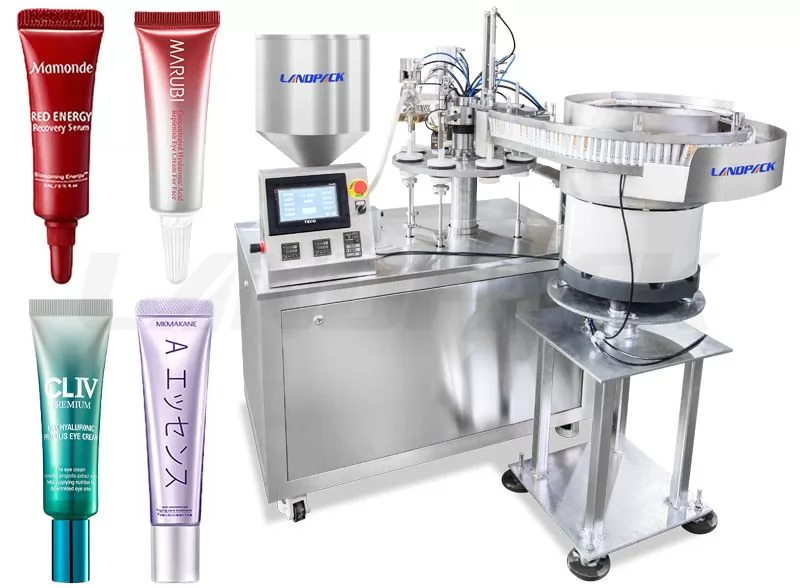

Automatic Cosmetic Tube/ Ointment Tube Filling And Sealing Machine

Model: LFF-FW-006

Application: It is sutable for medicine, daily chemical, food, chemical and other industries, such as ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste-like materials filling and sealing.

Speed:

20-35 pcs/min

Tube Size:

Customizable

Automatic Cosmetic Tube/ Ointment Tube Filling And Sealing Machine

Model: LFF-FW-006

Application: It is sutable for medicine, daily chemical, food, chemical and other industries, such as ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste-like materials filling and sealing.

Speed:

20-35 pcs/min

Tube Size:

Customizable

● Automatic Cosmetic Tube/ Ointment Tube Filling And Sealing Machine(LFF-FW-006), It is sutable for medicine, daily chemical, food, chemical and other industries, such as ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste-like materials filling and sealing.

● Filling container: Suitable for various specifications of plastic and composite tubes.

● Optional Supporting Devices: three-dimensional packaging machine, cartoning machine, sealing and cutting machine, heat shrinking machine, etc.

Automatic Cosmetic Tube/ Ointment Tube Filling And Sealing Machine

● 1. The filling speed and measurement accuracy can be adjusted quickly, with high measurement accuracy and good stability;

● 2. It is suitable for filling and sealing of various specifications of pipes, the sealing appearance is neat and tidy, and the sealing is firm.

● 3. The parts contacting the materials are made of all stainless steel SUS304;

● 4. The machine can be equipped with various filling methods of different specifications to meet the filling requirements of different viscosities

● 5. The typing station automatically prints the word code accurately on the set position;

● 6. The photoelectric benchmarking workstation uses high-precision probes, stepping motors and other precise control patterns to be located in the correct position.

● 7. It adopts PLC console, which is portable and convenient for brief introduction;

ModelLFF-FW-006
Yield20-35 pcs/min
Tube diameterΦ10mm-Φ50mm (Customizable)
Tube Height20mm-250mm (Customizable)
Control systemPLC
Power supply220V、50Hz
Airconsumption0.3m³/min
Dimension1280mm*10100mm*1700mm(L*W*H)
Material304
Weight600KG

● Description of the main packaging process: automatic tube feeding → color code alignment → blanking → internal heating → external heating → embossing (can be coded) → tail trimming → finished product export

After receiving your inquiry, We will send you the quotation as soon as possible.
