Model: LFH-HX-6
precision: ±1%
Application: It is suitable for mayonnaise, hand sanitizers, essential oils, motor oils, lubricants, honey, shampoo, ketchup, chili sauce, peanut butter, pasta sauce, oyster sauce, seasoning sauces, and thick sauces. Filling containers and bottles of various shapes.
20-35 bottle/mn
50-1000ml
Model: LFH-HX-6
precision: ±1%
Application: It is suitable for mayonnaise, hand sanitizers, essential oils, motor oils, lubricants, honey, shampoo, ketchup, chili sauce, peanut butter, pasta sauce, oyster sauce, seasoning sauces, and thick sauces. Filling containers and bottles of various shapes.
20-35 bottle/mn
50-1000ml
● Application:
It is suitable for mayonnaise, hand sanitizers, essential oils, motor oils, lubricants, honey, shampoo, ketchup, chili sauce, peanut butter, pasta sauce, oyster sauce, seasoning sauces, and thick sauces. Filling containers and bottles of various shapes.
● Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Bottle/can/jar weight
3. Bottle/can/jar dimension
4. Bottle/can/jar material

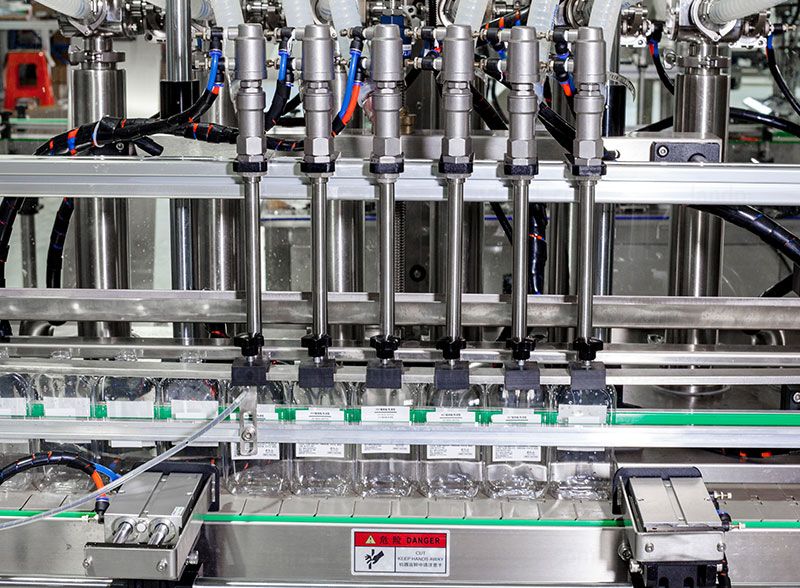

● With the anti-dripping function that can control each nozzle separately, filling nozzles can be driven by a servo motor and filled from the bottom of the bottle. We have the 2/4/6/8/10 nozzles filling machine, please send us a message if you need it.
● PLC control system, color touch screen display, and filling volume can be adjusted directly on the touch screen, easy to operate.
● This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, and pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, and good stability, and is well-received by users.
● The production line has stable operation, low noise, and convenient maintenance fully meets GMP certification requirements, and is widely used in medicine, food, cosmetics, and other industries.
● Adopt stainless steel pump to fill with high precision and a large range of adjusting the dosage.
● The cap sleeve of the bottle is contracted to prevent theft and avoid air entry, which is suitable for preservation.
| Model | LFH-HX-6 |
| Filling Range | 50-1000ml(customizable) |
| Filling Speed | 20-35 Bottles/min (500-1000ml range) |
| Measurement Accuracy | ±1% |
| Bottle Diameter | Φ30mm-Φ135mm(customizable) |
| Bottle Height | 40mm-200mm(customizable) |
| Control system | PLC |
| Total production line power | 6.5KW |
| Power supply | 220V、50Hz |
| Airconsumption | 0.8-1.2m³/min |
| Equipment material | 304 |

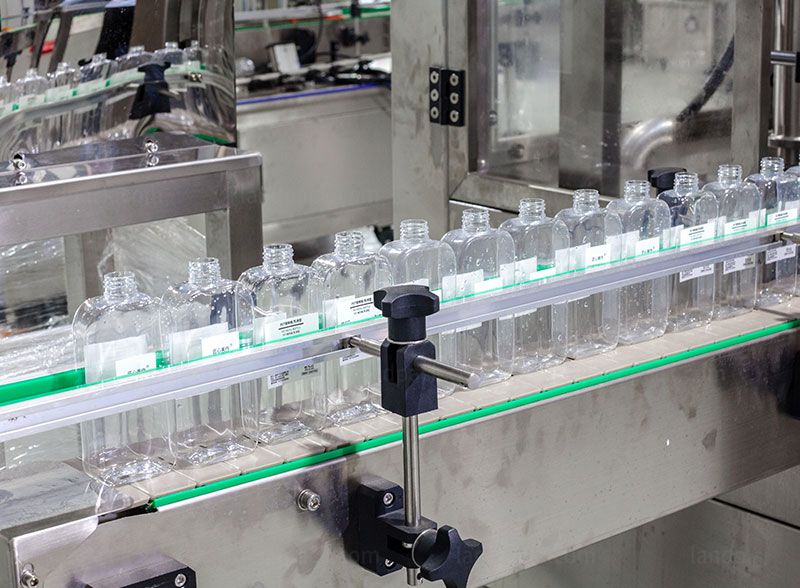

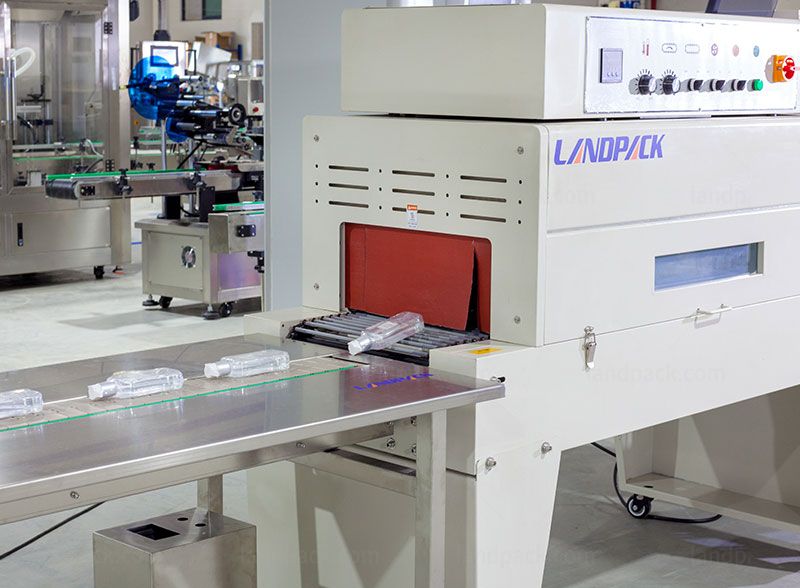

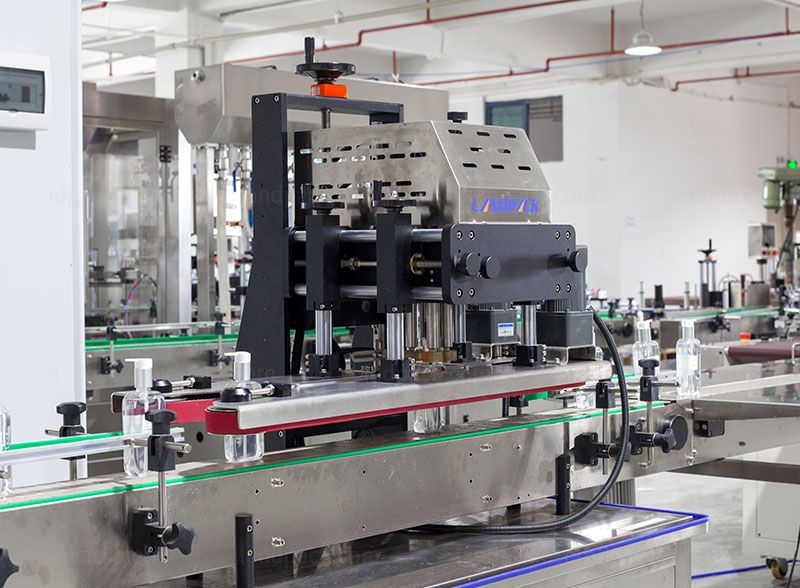

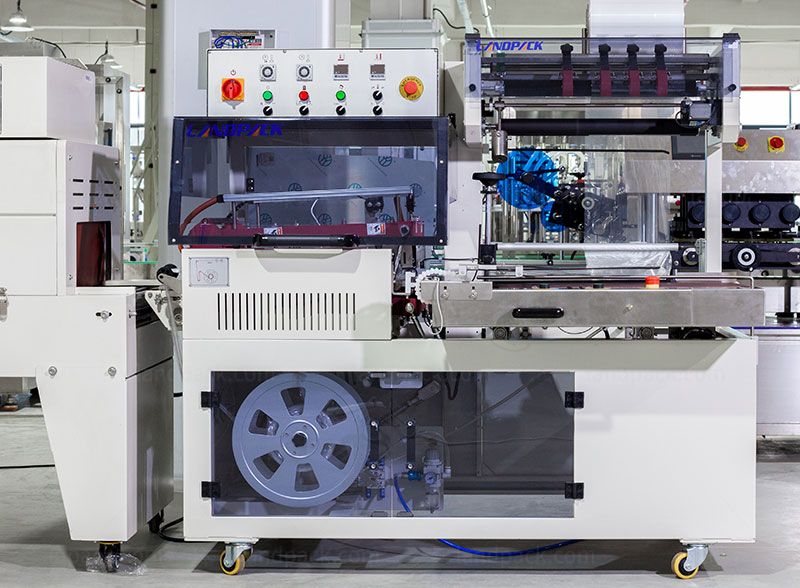

① unscramble bottle → ② 6 head piston filling → ③ Manual cover → ④ lifting upper cover → ④ servo capping → ⑤ Automatic shrink wrapping → ⑥ receiving bottle
After receiving your inquiry, We will send you the quotation as soon as possible.
