Horizontal Mixed Nuts Premade Pouch Packing Machine With Multiple Vibration Disks

Model: LD-160SP

Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.

Filling Volume: 20-500g

Packaging Accuracy:Error≤±1

Speed:

20-50 bag/min

Bag Size:

80-160mm*110-230mm

Horizontal Mixed Nuts Premade Pouch Packing Machine With Multiple Vibration Disks

Model: LD-160SP

Pouch Type: All type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.

Filling Volume: 20-500g

Packaging Accuracy:Error≤±1

Speed:

20-50 bag/min

Bag Size:

80-160mm*110-230mm

 Suitable for pre-made bag packaging of various granular mixtures, such as mixed nuts, daily nuts, mixed candies, mixed screw fasteners, etc.

Horizontal Mixed Nuts Premade Pouch Packing Machine With Multiple Vibration Disks

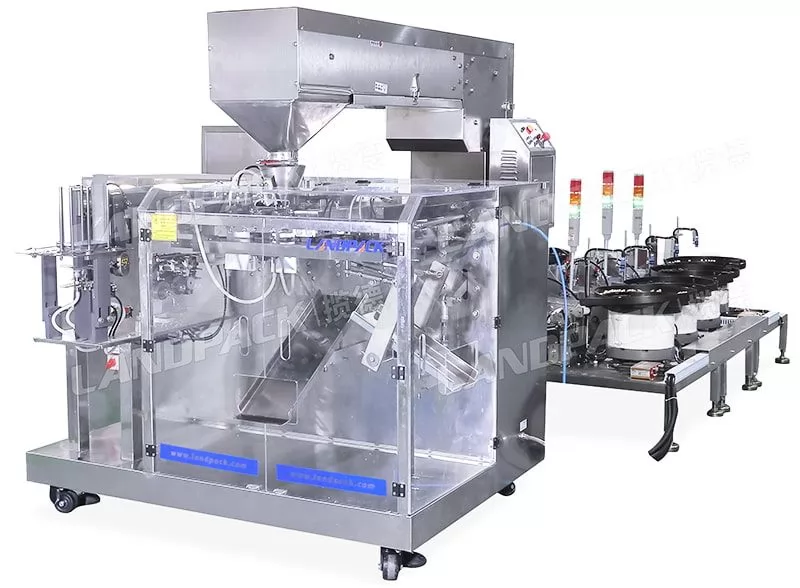

 This daily nut packaging machine is composed of three parts: the horizontal feeding bag packaging machine host, the Z-type automatic feeding machine, and the vibration plate;

ModelLD-160SP
Packing Speed20-50 bag/min
Total power380V,2.5KW,60Hz (Host)
Package dimensions80-160mm*110-230mm (Bag width * bag length)
Total Weight800KG
Packing capacity20g-500g
Air consumption0.7㎥/min
Bag typeAll type of heat sealable preformed side seal bags, gusseted bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout etc.

 Work flow: The operator pours the materials into the vibrating plate, and configures as many vibrating plates as there are as many materials in a bag. The vibrating plate transports the materials to the conveyor belt, and transports the materials to the bag through the Z-type loader. Then, a series of links such as blanking, filling, coding, and sealing are carried out to complete the packaging process.
