Model: LD-420L/LD-520L
Range of Measurement: 150-2000ml
Film Width: Max.520mm
Film Roll Diameter: Max.320mm
10-60 bag/min
Model: LD-420L/LD-520L
Range of Measurement: 150-2000ml
Film Width: Max.520mm
Film Roll Diameter: Max.320mm
10-60 bag/min

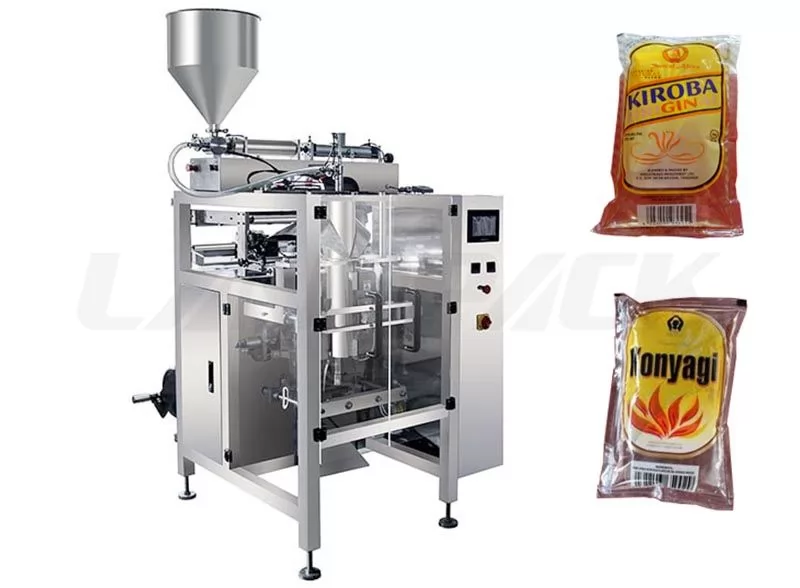

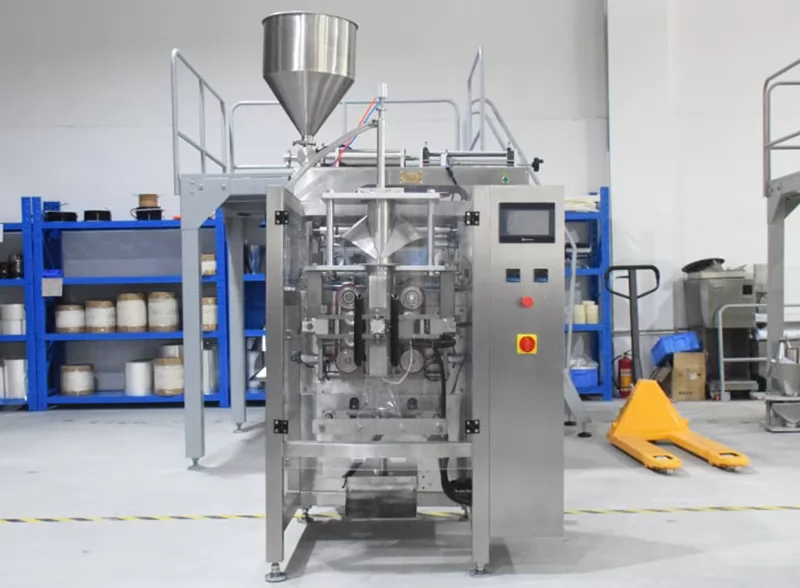

Multi-Function Automatic alcohol sachat packaging machine is suitable for packing various kinds of liquid objects, such as alcohol, oil, water, juice, milk, honey, soysauce, ketchup, tomato sauce, etc.
Packaging Material:
Alcohol
Alcohol
Alcohol
Alcohol
Alcohol
Alcohol
Bag Style:
Alcohol Sachet
Alcohol Sachet
Alcohol Sachet
Alcohol Sachet
Alcohol Sachet
Alcohol Sachet
● Products dosing, Filling, Laminate heat sealable pouch making and sealing.;
● Stainless steel 304 structure and surface;
● Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting;
● Simple changing of pouch former, to adapt different pouch size requirement;
● Intelligent temperature controlling configuration, ensure the artistic and neat sealing;
● Configure with packaging film pre-pulling device, to enable stable pouch making;
● No film no filling, and easy to change the packaging film.
● Model:LD-420L/520L
● Film Width: Max.520mm
● Bag Length: 80-350mm
● Bag Width: 60-250mm
● Range of Measurement: 150-2000ml
● Film Roll Diameter: Max.320mm
● Packaging Rate: 10-60bag/min
● Power: 220V 50/60Hz 3KW
● Machine Size(L*W*H): 1488*1080*1490mm
● Machine Quality: About 680kg
Date Printing;
Hole Punching Device;
Air-filling Device;
Tear Notch Device.
