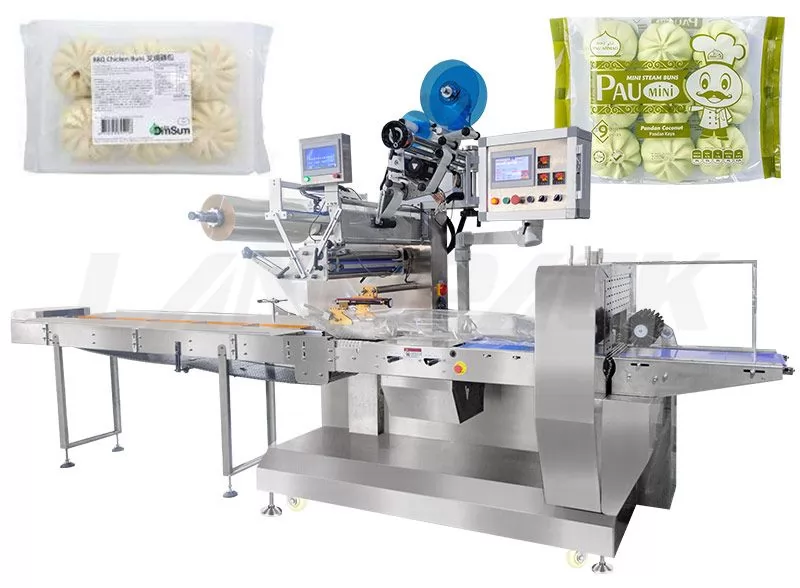

Automatic Frozen Food Flow Wrapping Machine With Labeling Function

Model: LP-680B/ 800B

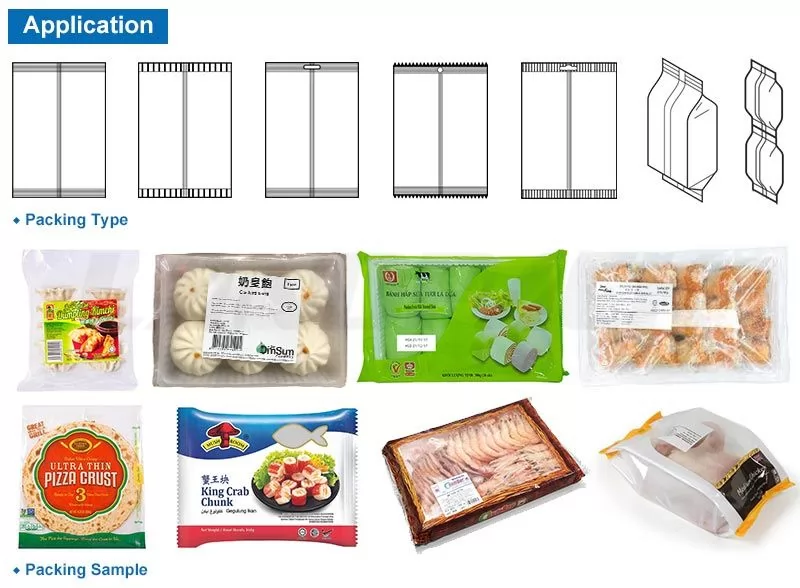

Application: Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.

Speed:

30-150bag/min

Bag Size:

L: 150-650mm

W:100-350mm

Automatic Frozen Food Flow Wrapping Machine With Labeling Function

Model: LP-680B/ 800B

Application: Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.

Speed:

30-150bag/min

Bag Size:

L: 150-650mm

W:100-350mm

 Application: Suitable for pillow packing of conventional items such as hardware accessories parts, soap, bread, pancake, biscuit, cake, rusk, bun, etc.

 Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.


 Dual frequency conversion control, Bag length can be set and cut in one step,saving time and film.

 Interface features easy and quick setting and operation

 Self failure diagnosis, clear failure display

 High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

 Temperature independent PID control, more suitable for packaging different materials

 Positioned stop function, without sticking knife or wasting film.

 Simple driving system, reliable working, convenient maintenance.

 All control is realized through software,easy for function adjusting and technical upgrade.

TypeLP-680BLP-800B
Film widthMax 680mmMax780mm
Bag length150-560mm210-650mm
Bag width100-260mm120-350mm
Product heightMax.110mmMax.130mm
Film roll diameterMax.320mmMax.320mm
Packaging rate30-150bag/min30-150 bags/min
Power220V50/60Hz 6KW220V50/60Hz 6KW
Machine size(L)4800*(W)1200*(H)1700mm(L)4800*(W)1200*(H)1700mm
Machine quality1120KG1150kg
Film materialOPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP/ Aluminum Coating Film/ Aluminum Film

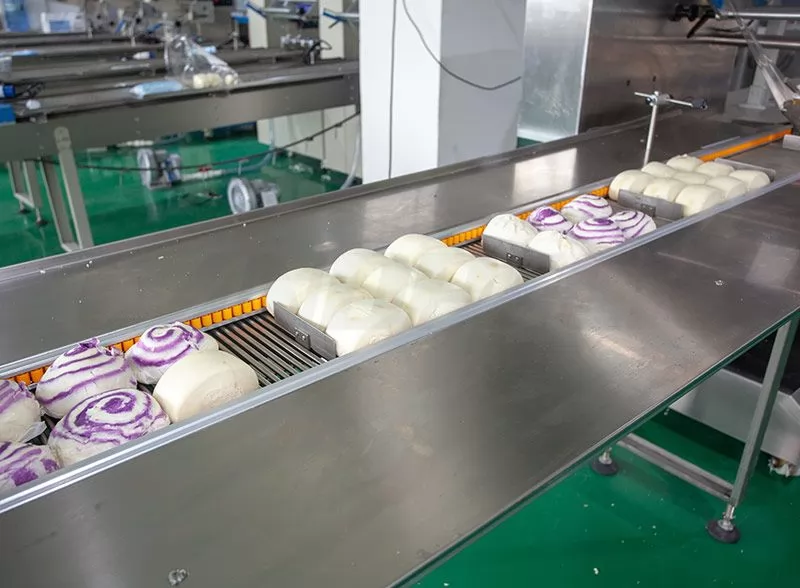

 1. 304 stainless steel Rolling bolls conveyor

 2. End sealing drag chain

 3. Auxiliary material feeding device

 4. Material cut prevent device

 5. Perforating device

 6. Angle folding device

 7. Date printer

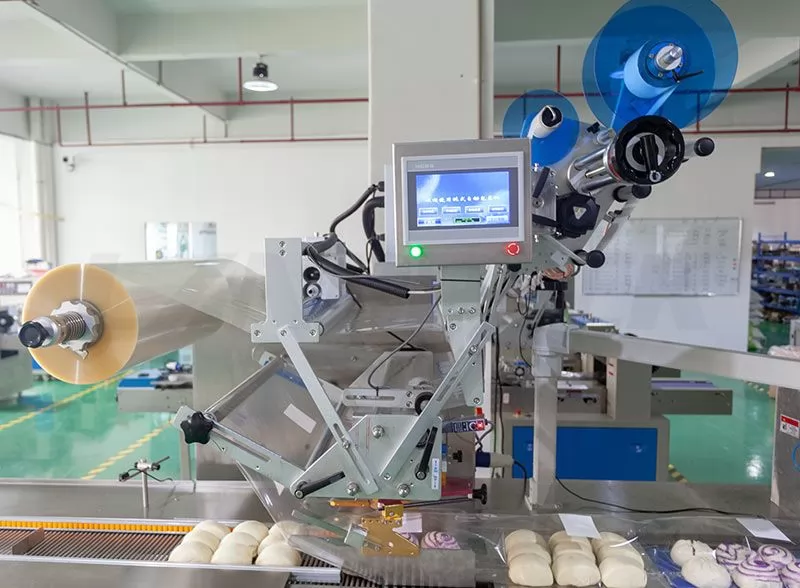

 8. Labeling machine

 9. Thermal transfer code printer

 10. Air charging system

 11. Cutting stop

 12. Prevent empty package.
