Model: LD320D / LD380D
Measuring range: 5-250ml(customizable)
Film roll diameter: MAX.320mm
Powder Supply: 220V 50/60Hz 2.2KW(customizable)
Yield: 5-50 Bag/min

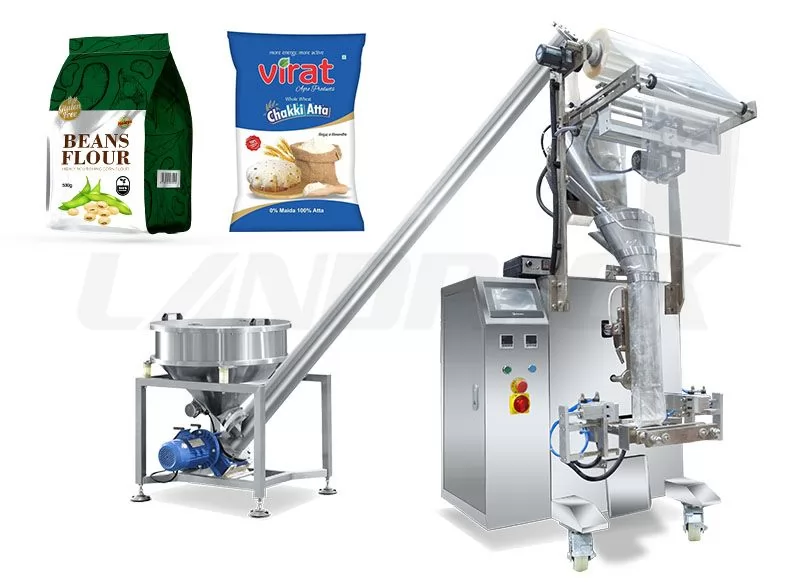

● Powder packing machine is suitable for filling and packing varieties of powders, such as flour, milk powder, coffee powder, cocoa powder, wheat flour, vitamin powder, grain powder,fruit powder,spice ,curry powder,rice powder and etc.
● We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● The contact part with the packaging material is 304 stainless steel, and the whole body can also be made of 304 stainless steel according to customer requirements. Strictly made as per CE and SGS certification demands
● Optional English or other languages screen display, easy and simple operation.
● High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
● The machine integrate Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.
● Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold .
|Measure Mode||Auger Screw|
|Bag Shape||Back Sides Sealing / 3 Sides Sealing / 4 Sides Sealing|
|Roll Film Width||180-380mm|
|Power||380V/220V ; 50/60HZ,2.5KVA|
● This powder filling system is driven by a servo motor to ensure high filling accuracy. It is controlled by PLC, man-machine interface and easy to operate. The filling volume can be changed by replacing the screw gauge, and the measuring range is wide.
