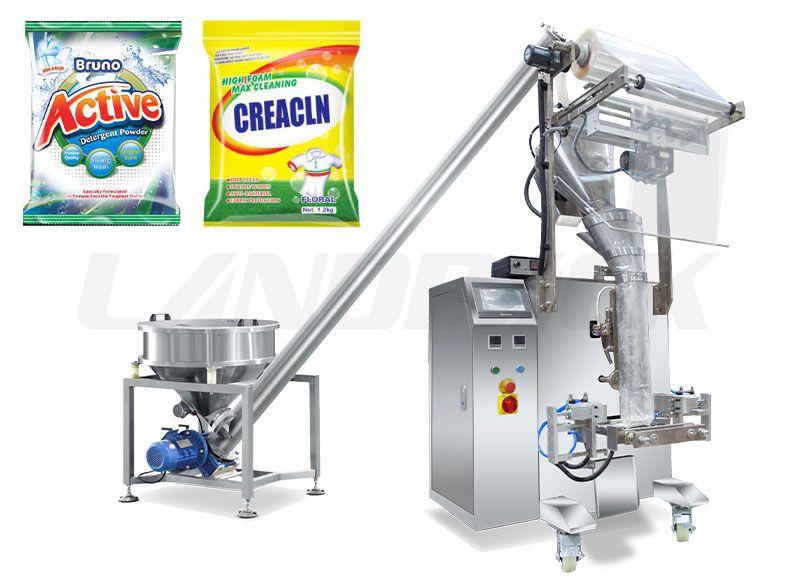

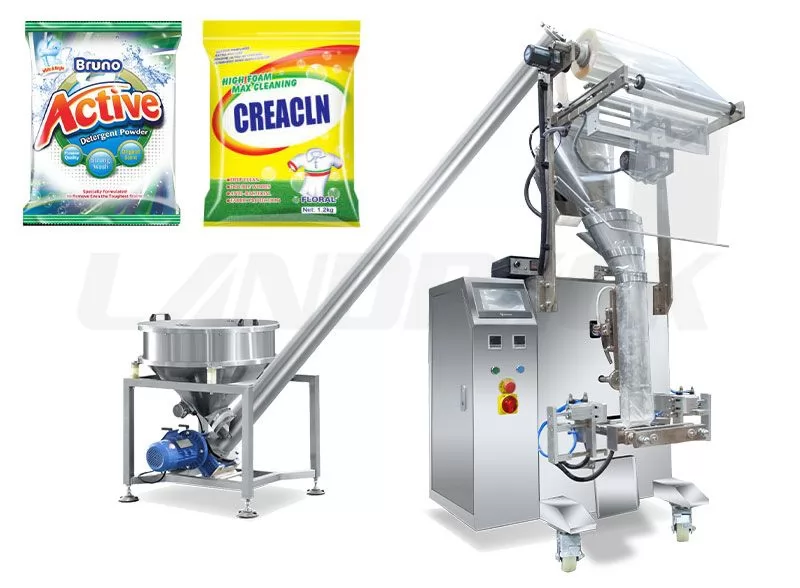

Model: LD-320D
Application: It is suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc. It integrates metering, bagging, packing, sealing, date printing.
35-70bag/min
Model: LD-320D
Application: It is suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc. It integrates metering, bagging, packing, sealing, date printing.
35-70bag/min
● Application:
It is suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc. It integrates metering, bagging, packing, sealing, date printing.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● High precision structure for simple and easy operation and repair.
● PLC touch screen, step motor control, easy and accurate to set the bag length.
● It's owns simple circuitry and outstanding function.

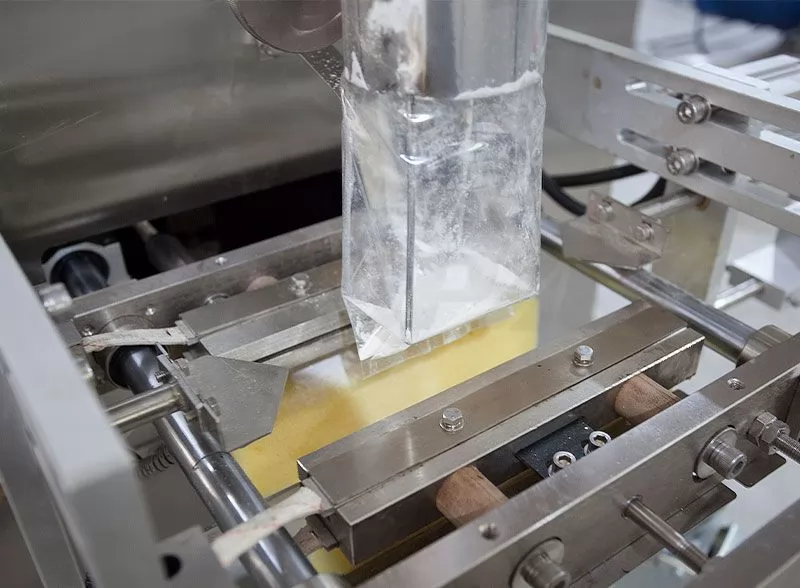

● The machine completes the whole procedure of filling, bagging, date printing,charging (exhausting) automatically.
● Select device: Linked bags device.
| Type | LD-320 | LD-380 | LD-320S |
| Film width | 120-320mm | 180-380mm | 80-220mm |
| Bag length | 50-200mm | 60-280mm | 50-200mm |
| Bag width | 20-150mm | 20-180mm | 20-150mm |
| Film roll diameter | Max.300mm | Max.320mm | 320mm |
| Packing speed | 5-50 bag/min | 5-50 bag/min | 5-50 bag/min |
| Measuring range | 5-200ml | 5-250ml | 5-200ml |
| Film thickness | 0.04-0.07mm | 0.04-0.12mm | |
| Power Supply | 220V,50/60Hz,2.2KW | 220V,50/60Hz,2.5KW | 220V,50Hz,2.0KW |
| Machine size | (L)970X(W)680X(H)1950mm | (L)1100X(W)800X(H)2150mm | (L)970X(W)825X(H)2020mm |
| Machine quantity | About 300kg | About 450kg | About 300kg |
● 1 . Hot stamp ribbon coder
● 2 . Batch cutter

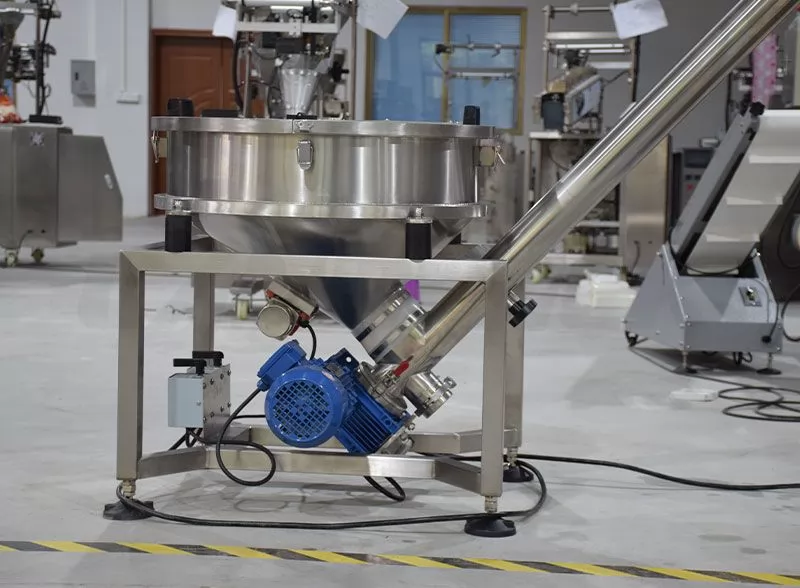

● 3 . Vacuum loader
● 4 . On-line check weighing with auto feedback weight
