Medel: LD-720
Application:
It is suitable for many kinds of fine granule products, such as sugar, salt, small grains, coffee powder, seeds, spice, etc.
Max.35 cycle/min
Medel: LD-720
Application:
It is suitable for many kinds of fine granule products, such as sugar, salt, small grains, coffee powder, seeds, spice, etc.
Max.35 cycle/min

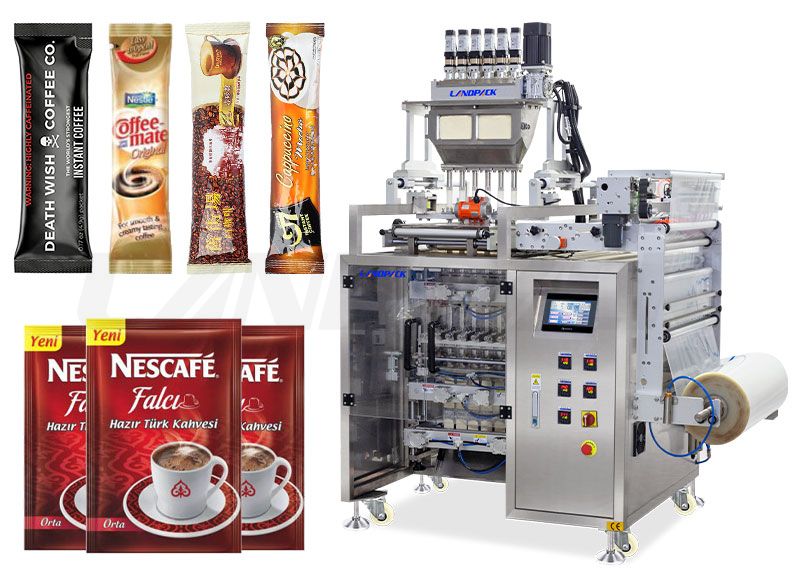

● This machine is applicable for dosing fine particle products and sealing in form of 3/ 4 side sealed sachet, It can be expanded to 12 lanes at most. include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
● Use famous brand electric and pneumatic components, stable and long life circle.
● Use superior mechanical components, reduce the wear out loss.
● PLC control with stable and high accuracy output.
● Two color touch screen 7", one for packing machine, another for multihead weigher.
| Model | LD480G | LD720G | LD960G |
| Track Number | 4~6Track | 4~10Track | 4~12Track |
| Filling Method | 1.Volumetric cup; 2.Weigher | ||
| Capacity | Max.35 cycle/min | ||
| Sachet Size | L:45--120mm; W:35-60mm | L:45--120mm; W:35-90mm | L:45--120mm; W:35-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 3/ 4 sides sealing | 3/ 4 sides sealing | 3/4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
● Sealing Type: 4 sides sealing; 3 sides sealing.
● Cutting Type:
Straight Cutting;
Zig Zag Cutting;
Continuous Cutting.
