Model: LD-8200
Filling Weight: 10-5000g(customizable)
Bag diameter: Φ80-Φ400mm(customizable)
Bottle height: 50mm-200mm(customizable)
Yield: 10-40 Bag/min
10-40 bag/min
Customizable
● Application: It is suitable for automatic packing for Powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

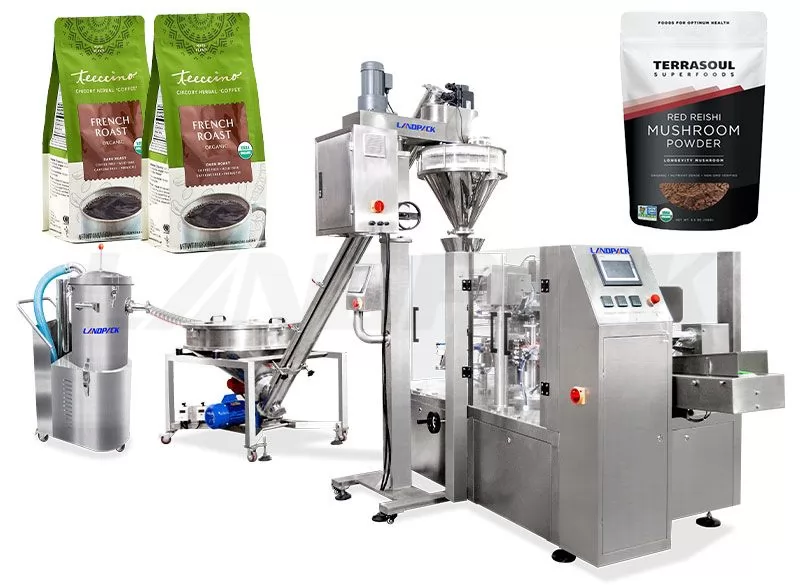

● Full automatic intermittent rotary preformed bags dispensing, opening and closing machine combined with automatic auger powder filler, bulk screw feeder and product bulk hopper.
● Safety guard protected for high speed and consistent production heavy duty components and parts are selected for machine durability.
● Hygienic construction and easy cleaning operators friendly design touchscreen control system.
● Adopt advanced PLC, mate with touch screen and electric control system, the man-machine interface is friendly.
● Dust control and extractor system on special request.
● Automatic checking system can check bag situation, filling and sealing situation.
Model | LD-8200D/ 8240D/ 8300D |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
Bag size | W: 100-300mm L: 100-450mm |
Filling Volume | 5-2500g (Depending on type of products) |
Packing speed | 40-60bag/min(speed is determined by the product filling quantity) |
Average precision | ≤ ±1% |
Compress Air Requirement: | ≥0.8m³/min |
Work flow | giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
● This powder filling system is driven by a servo motor to ensure high filling accuracy. It is controlled by PLC, man-machine interface and easy to operate. The filling volume can be changed by replacing the screw gauge, and the measuring range is wide.
