Model: LDB-420A/ 520A/ 720A
Application: Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.), frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.
8-25 bag/min
Model: LDB-420A/ 520A/ 720A
Application: Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.), frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.
8-25 bag/min

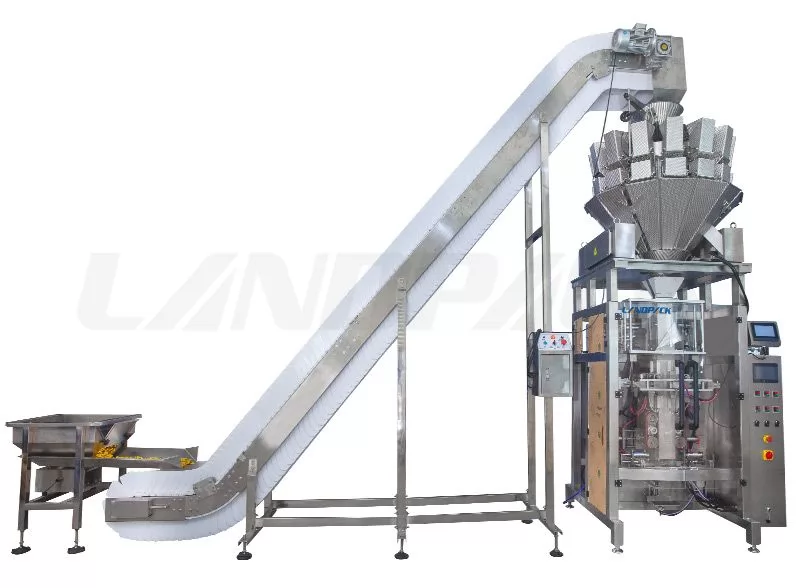

● Application: Automatic Granule Vertical Form Fill Seal Machine For Quad Seal Pouch (LDB-420A/ 520A/ 720A), It suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as candy, sunflower seeds, peanut, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.), frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, dilatant foodstuff, hardware and plastic can be weighed by the ration.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● New design with perfect fashion, more reasonable structure, more advanced technology.
● Chinese or English display（Language can be set according to customer requirements).
● Longitudinal sealing is used by four sides with hot sealing type, bag is more beautiful and shapa stabilization.
● Imported PLC control system, colorful touch screen, can clearly shows working state and operation indicator,easy to operate,intuitionistic and efficient.
● Accurate positioning with imported servo film transporting system and color mark sensor, superexcellent capability for complete machine, perfect packaging.
● With auto warning protection function to minimize loss.
● With double transporting devices.gusseting devices and retainer devices, function more perfect.
● Various kinds of bag, it could provide the hang hole bag, link bag, etc.
● Automatic correct function, save time, labor, and film, the operation more intelligent.
● Adopt external film feeding mechanism. Film setting be more easy and quick.
| Type | LDB-420 | LDB-520 | LDB-720 |
| Film width | 150-Max.420mm | 250-Max.520mm | 260-Max.720mm |
| Bag length | 80-300mm | 60-400mm | 65-500mm |
| Bag for Width | 68-145mm | 65-175mm | 65-170mm |
| Bag for Width | 45-80mm | 45-110mm | 45-140mm |
| Longitudinal sealing Width | 5-10mm | ||
| Packing speed | 8-25bags/min | 8-15bags/min | |
| Measuring range | 1000ml | 1500ml | 8000ml |
| Film thickness | 0.04-0.08mm | ||
| Power Supply | 220V 50Hz 2.8KW | 220V 50Hz 3.2KW | 220V 50/60Hz 3.5KW |
| Machine size(L*W*H) | (L)1390X(W)1155X(H)800mm | (L)1492X(W)1255X(H)2184mm | (L)1590X(W)1500X(H)2408mm |
| Machine weight | about 600KG | about 700KG | about 800KG |
● Double-servo devices
● vacuum film feeding hole-punching device
● link bag device
