Model: LD-320AS
Application:
Suitable for packing for all kinds of grain material, such as seeds, Melon Seeds, Sesame Seed, snack, candy, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, etc.
30-70 bags/min
Model: LD-320AS
Application:
Suitable for packing for all kinds of grain material, such as seeds, Melon Seeds, Sesame Seed, snack, candy, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, etc.
30-70 bags/min
● Application:

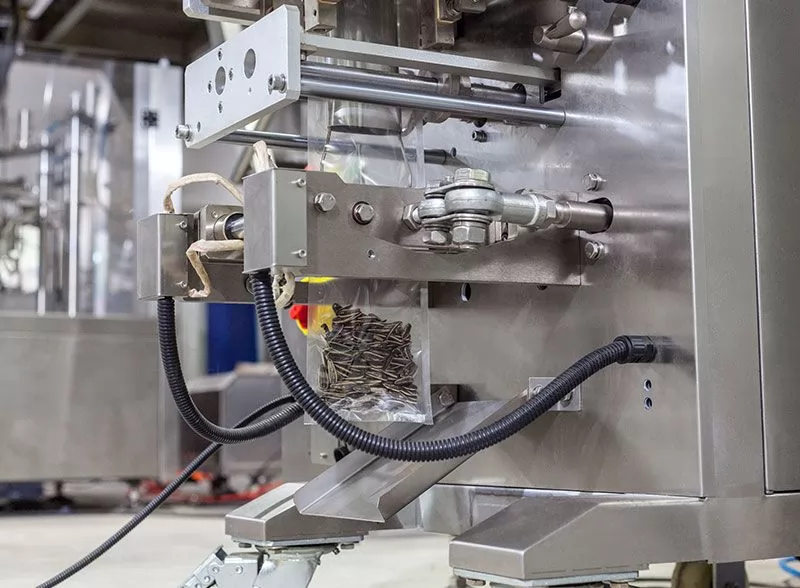

Automatic quad seal pouch vertical packing machine(LD-320AS), Suitable for packing for all kinds of grain material, such as seeds, Melon Seeds, Sesame Seed, snack, candy, chips, peanuts, nutlet , preserved fruit, jelly, biscuit, etc.
● Kindly Reminder: We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
● Products dosing, Filling, Laminate heat sealable pouch making and sealing;
● Stainless steel 304 structure and surface;
● Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting;
● Simple changing of pouch former, to adapt different pouch size requirement;
● Intelligent temperature controlling configuration, ensure the artistic and neat sealing;
● Configure with packaging film pre-pulling device, to enable stable pouch making;
● Easy to change the packaging film.
| Model | LD-320AS | LD-380AS |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 450kg |
● 1. LD series main frame
● 2. Z type bucket elevator
● 3. Finished product conveyor
● 4. Multi-heads combination weigher
● 5. Support platform
After receiving your inquiry, We will send you the quotation as soon as possible.
