Model: LD-8230A
Application:

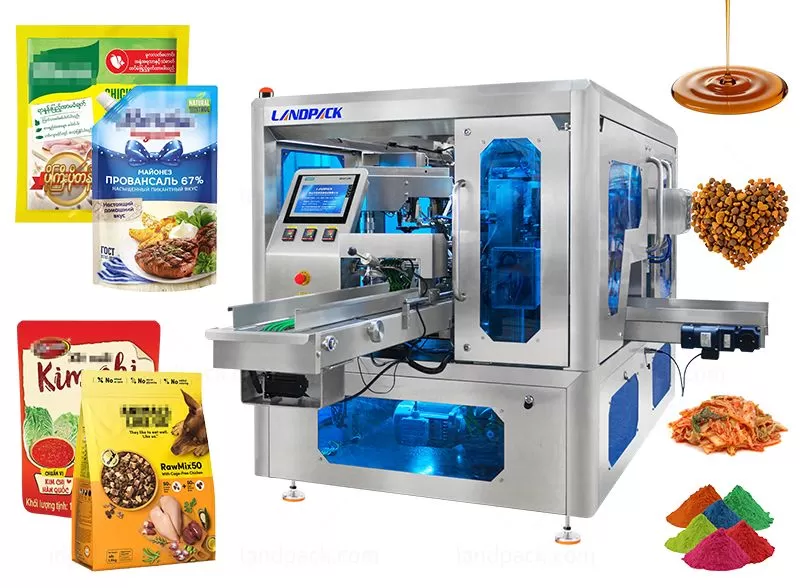

This rotary packaging machine can be integrated with various feeding systems to package granules, powders, and liquids on the same platform. It is suitable for nuts, beans, snacks, pet food, flour, milk powder, coffee powder, ketchup, chili sauce, honey, juice, etc.
80-120bag/min
Model: LD-8230A
Application:
This rotary packaging machine can be integrated with various feeding systems to package granules, powders, and liquids on the same platform. It is suitable for nuts, beans, snacks, pet food, flour, milk powder, coffee powder, ketchup, chili sauce, honey, juice, etc.
80-120bag/min
Application:
This rotary packaging machine can be integrated with various feeding systems to package granules, powders, and liquids on the same platform. It is suitable for nuts, beans, snacks, pet food, flour, milk powder, coffee powder, ketchup, chili sauce, honey, juice, etc.
Package Type:
The rotary pouch packing machine is designed for premade pouch and doypack packaging, including stand-up pouches, zipper pouches, retort pouches, spout pouches, m shape pouches, and other customized pouches.

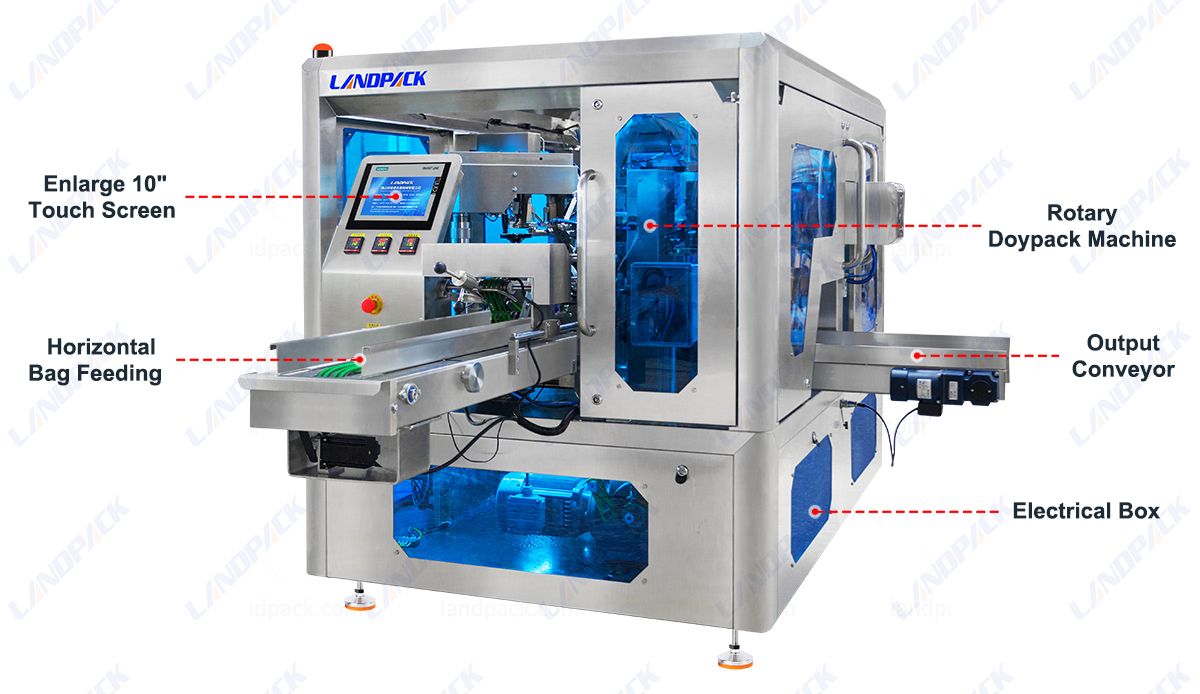

Machine Key Components:
Feature:
1. Utilizes a custom-designed, patent-pending rotary packaging machine.
2. The entire machine frame is constructed of stainless steel with a chamfered, brushed, and polished surface.
3. Eight-station design; bag width can be adjusted via a single button, supporting various bag sizes.
4. Servo-controlled zipper opening allows for easy adjustment of the bag opening angle.
5. Bag punching and rinsing functions ensure neat and aesthetically pleasing sealing.
6. Equipped with a Siemens PLC, 10-inch touchscreen, safety door, alarm system, and independent electrical design.
ITEM | LD-8200 | LD-8250 | LD-8300 |
BAG SPEED | max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.) | ||
BAG SIZE | L100-300mm W70-200mm | L100-350mm W130-250mm | L150-450mm W200-300mm |
BAG TYPE | Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag | ||
WEIGHING RANGE | 10G-1KG | 10G-2KG | 10G-3KG |
MEASUREMENT ACCURACY | ≤±0.5~1%， （Depanding on the measurement equipment and materials） | ||
MAXIMUM BAG WIDTH | 200mm | 250mm | 300mm |
GAS CONSUMPTION | 0.8pa 0.3m³/min | ||
TOTAL POWDER/VOLTAGE | 1.5KW 380V 50/60HZ | 1.8KW 380V 50/60HZ | 2KW 380V 50/60HZ |
AIR COMPRESS | Not less than 1 CBM | ||
DIMENSION | L1900*W1400*H1450 | L2000*W1500*H1550 | |
MACHINE WEIGHT | 1300KG | 1500KG | |

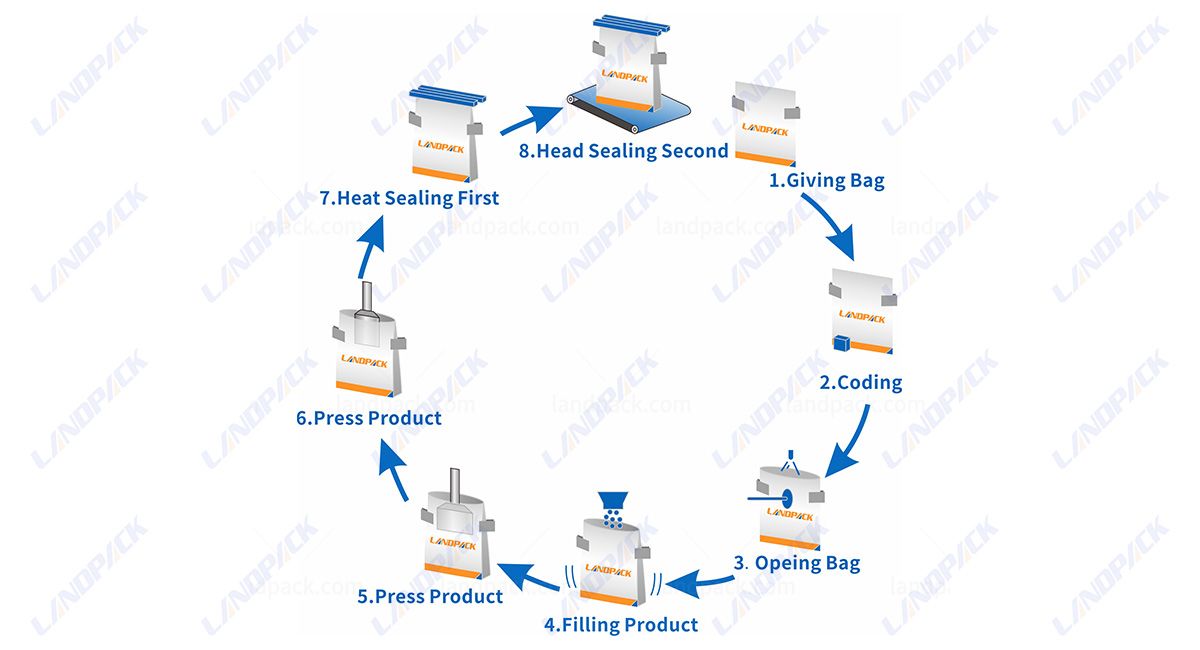

1. Giving Bag → 2. Coding → 3. Opeing Bag → 4. Filling Product → 5. Press Product → 6. Press Product → 7. Heat Sealing First → 8. Head Sealing Second
