Model: LFP-02
Application:
Suitable for automatic weighing filling capping and labeling of various fluidic or low-fluidity powder materials like protein powder, collagen powder, nutrition powder, milk powder, coffee powder, etc. It's widely used in the various industry including pharmaceutical, foodstuff, cosmetic and chemical.
10-40 Bottle/min
Customizable
Model: LFP-02
Application:
Suitable for automatic weighing filling capping and labeling of various fluidic or low-fluidity powder materials like protein powder, collagen powder, nutrition powder, milk powder, coffee powder, etc. It's widely used in the various industry including pharmaceutical, foodstuff, cosmetic and chemical.
10-40 Bottle/min
Customizable
● Application: High speed protein powder bottle filling packing machine lines, it is suitable for automatic weighing filling capping and labeling of various fluidic or low-fluidity powder materials like protein powder, collagen powder, nutrition powder, milk powder, coffee powder, etc. It's widely used in the various industry including pharmaceutical, foodstuff, cosmetic and chemical.
● Automatic two-head Auger type metering/filling system works with the automatic capping machine.
● Able to work with the double star wheels for bottle/can conveying & positioning system to perform the filling operation.
● Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.
● Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.
● Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.
● 10 sets of memory modules for memorizing different kinds of products and filling weights.
● HMI touch screen for operational control.
● Japan Panasonic PLC.
● Available to connect with material supply system at pre-section for auto linking connection.
● Available to link with the capping and labeling systems... etc. at post section.
| Automatic Powder Weighing Filling Capping And Labeling Machine (LF-PJ-W02) | ||
| Model | (LF-PJ-W02 | LFP-02 |
| Filling Weight | 10-5000g(customizable) | 10-5000g(customizable) |
| Bottle diameter | Φ30-Φ140mm(customizable) | Φ30-Φ140mm(customizable) |
| Bottle height | 50mm-200mm(customizable) | 50mm-200mm(customizable) |
| Yield | 10-20 Bottle/min | 20-40 Bottle/min |
| Measurement accuracy | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) | ≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material) |
| Power | 2.5KW | 5KW |
| Silo capacity | 50L | 50L |
| Power Supply | 220V、50Hz | 220V、50Hz |
| Working Pressure | 0.6-0.8MPa | 0.6-0.8MPa |
| Weight | 350kg | 550kg |
Description Of Main Packaging Process:

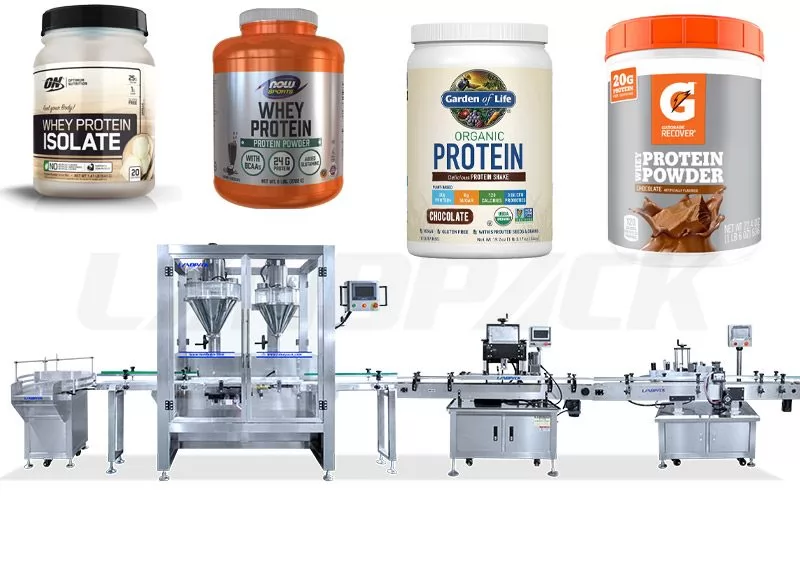

①Bottle Unscrambler → ② Automatic Powder Weighting And Filling Machine → ③Automatic Capping Machine → ④Automatic Labeling Machine
